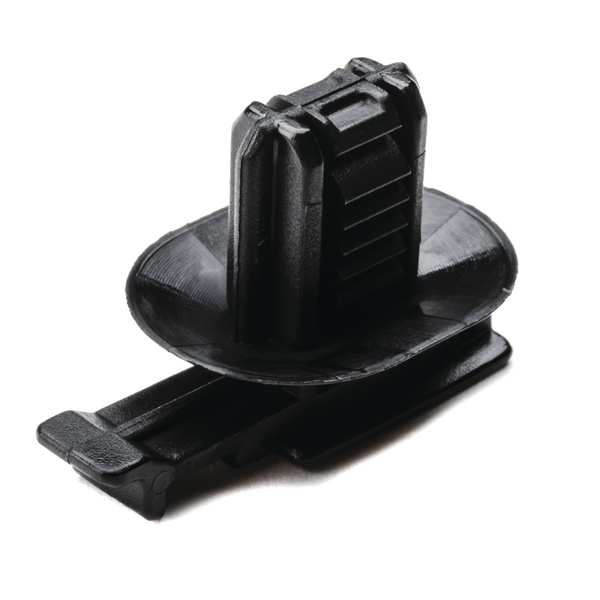

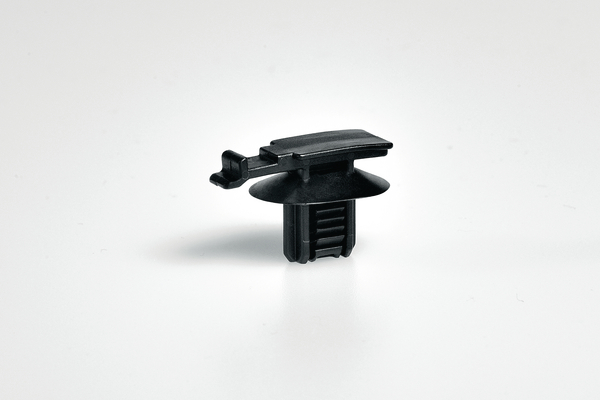

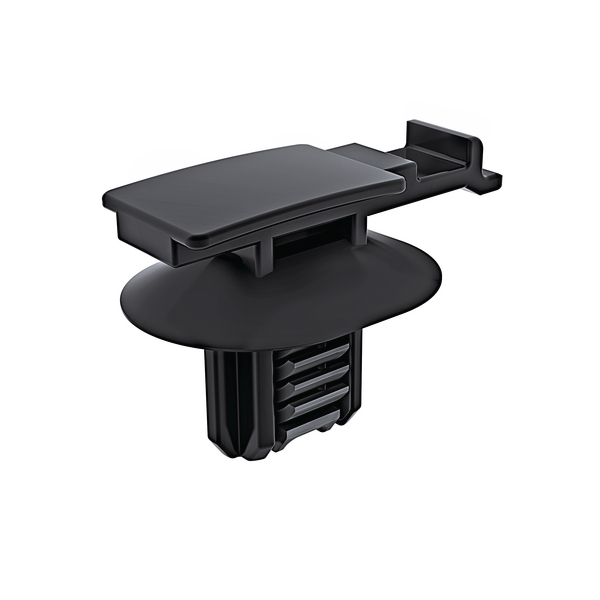

Connector clip for hole (oval)/for connector, black, 1000pcs.
Art.-No. 151-00180 | YCCFT62x122-PA66HIRHS-BK |

Copied

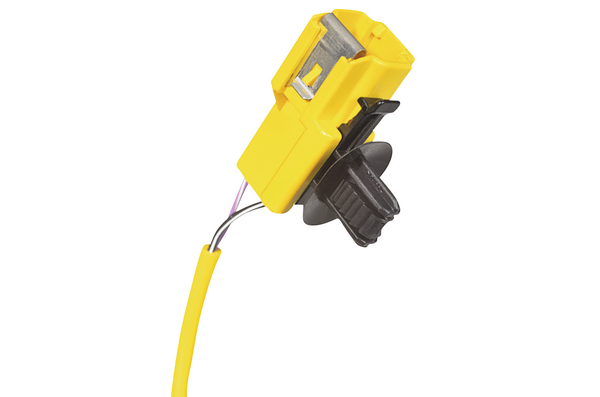

For a secure fixing simply push the connector by hand (ConnectorClip YCCFT62x122).
Head design contains clamping rails to provide full circumferential compression around bundles.

    • Plug is fitted by simply sliding it on
    • Plug connection can be released non-destructively
    • Various sheet thicknesses can be used with a single lamella foot section
    • Holder with oval plug or additional pin serve as anti-twist protection
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application The connector mounts used here are intended for cables and cable sets in the automotive industry
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Key product features ergonomic design
    Local order number YCCFT62x122.HIRHSB7P
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION YCCFT62x122-PA66HIRHS-BK
    Package Content 1000pcs.
    Package Content packed in Pack
    Short Description Connector Clip for oval hole (6.2x12.2 mm), with fir tree, high impact modified, heat stabilised, black
    Type YCCFT62x122
    Type of connection USCAR11
    UV-Stabilised No
    Weight/Unit 0.001176kg
    Fixing Hole Shape Oval
    Height (H) 18.0mm
    Length (L) 21.08mm
    Panel Thickness 0.6 - 6.0mm
    Width (W) 16.0mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026257723
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.37m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0049025m³
    Packaging 1 - Weight (kg) 1.197815kg
    Packaging 1 - Width (m) 0.265m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 12000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 15.19378kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 144000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 203.352kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Art.-No.: 151-00180 Distributors Contact
    Base Data Product Dimensions Specifications Logistics and Packaging Downloads
    Downloads Datasheet
    Add to watchlist

    Request your individual offer now

     Request quote
