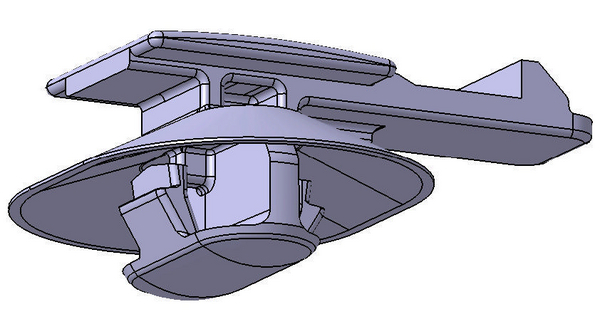

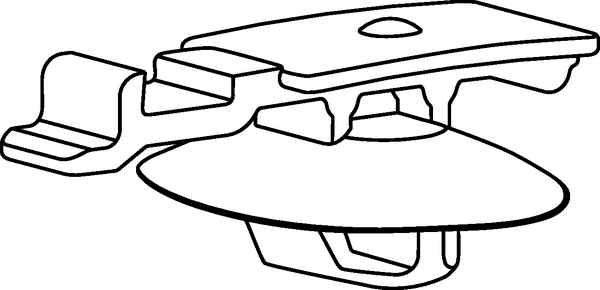

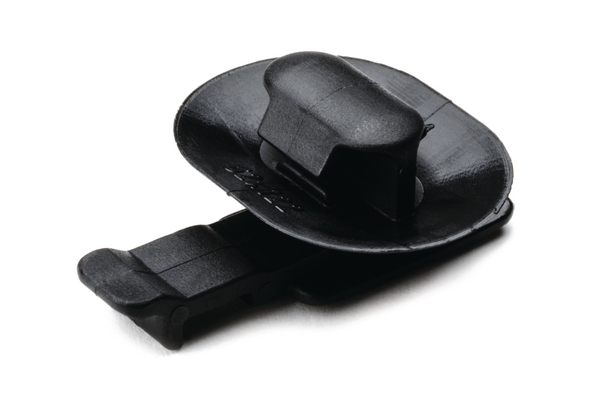

Connector clip for hole (oval), EWCAP-005-11, black, 10000pcs.
Art.-No. 151-00833 | YCCKSFT62x122PT0.7-1.3 90°-PA66HIRHS-BK

Copied
  • Easy to install by simply pushing into place
    Connection can be released (non-destructive)
    One fit tree foot part can be used for a variety of panel thicknesses
    Disc covers the hole to prevent dust and dirt gaining access

Request your individual offer now

Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Local order number YCCKSFT62x122PT0.7-1.3_90_HS_H1
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION YCCKSFT62x122PT0.7-1.3 90°-PA66HIRHS-BK
Package Content 10000pcs.
Package Content packed in Bag
Product Group Connector Clips for oval holes
Short Description Connector Clip, oval hole 6.2 x 12.2 mm, arrow head, high impact modified, heat stabilised, black - YCCKSFT62x122PT0.7-1.3
Type YCCKSFT62x122PT0.7-1.3 90°
UV-Stabilised No
Weight/Unit 0.000864kg
Fixing Hole Shape Oval
Height (H) 11.1mm
Length (L) 27.0mm
Panel Thickness max. 0.7 - 1.3mm
Width (W) 21.0mm
for Hole ⌀ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.7 - 1.3 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026411200
Packaging 1 - Height (m) 0.17m
Packaging 1 - Length (m) 0.56m
Packaging 1 - Qty 10000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03332
Packaging 1 - Weight (kg) 8.759kg
Packaging 1 - Width (m) 0.35m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.424kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 209.48kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
