FDN connectorised B length with basket and 32 SC PC simplex connectors
Art.-No. 857-00815 | FDNCT-BXBCDW1-SK Details

This product is not available anymore.
  • Maximum 324 fibre splice capacity
  • 58 round ports and 1 oval port
  • Fibre storage basket for loop through applications
  • Hellipse NZDF SE-A trays
  • LC duplex or SC simplex adaptors
  • Maximum 12 splices per tray without double stacking
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Show more

Request your individual offer now

Colour Black (BK)
Content FDN Base

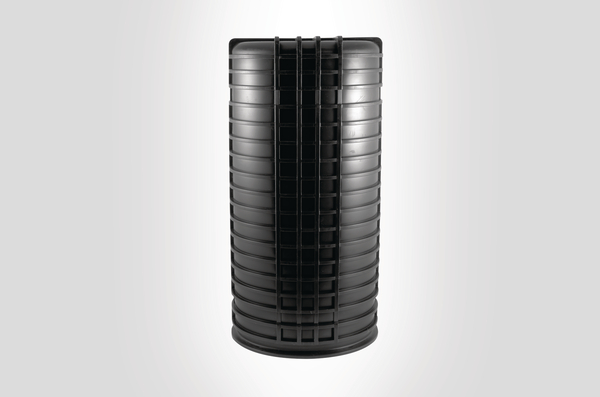

B-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
Fibre Storage Basket
Connector Plate
LC Duplex or SC Simplex Adaptors
27 NZDF SE-A Trays
Tray Support Frame
Anchor Fixing Kit (3)
Tray Tool
Hook and Loop Tray Securing Straps
Transportation Tubing
Tubefix – Tube to Tray Securing Blocks
Hook and Loop Management Ties
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Cover Type B
Method of Sealing Cablelok, Heatshrink
Package Content packed in kit
PART DESCRIPTION FDNCT-BXBCDW1-SK
Port L, T, S, B, R
Port count 1, 2, 4, 2, 52
Product Family B Length with 64 LC Ports and Basket
Product Group FDN Connectorised B Length with Basket
Qty Trays 27
Short Description FDN connectorised B length with basket and 32 SC PC simplex connectors

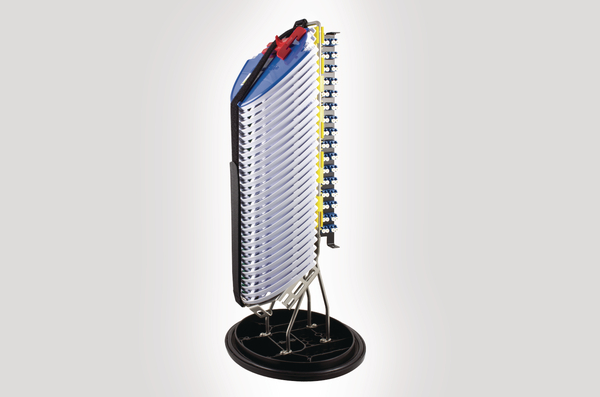

Technical Description The FDN B Length closure with basket is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and can accommodate up to 27 Hellipse NZDF SE- A trays with a maximum of 32 LC duplex or 32 SC simplex adaptors mounted in the connector plate for a maximum of 64 LC or 32 SC connectors. The connectorised closure and the position of the mounting system allow for ease of access and traceability of the fibre into the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system.
Type of Tray Hellipse NZDF SE-A

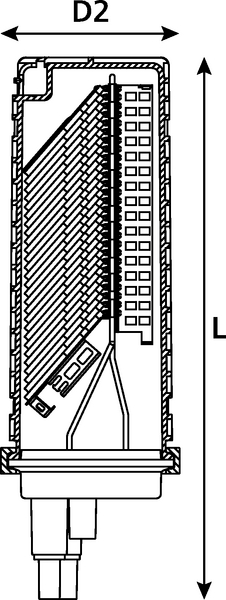

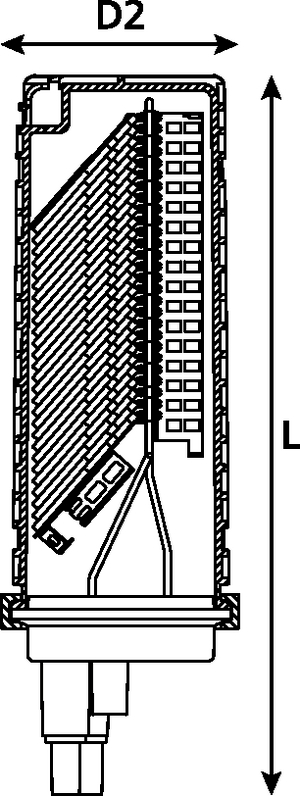

D1 312mm
D2 222mm
Length 663mm
Country of Origin GB
GTIN-13 / EAN 5022660127762
ETIM 7.0 Key EC002067
ETIM 8.0 Key EC002067
ETIM 9.0 Key EC002067
