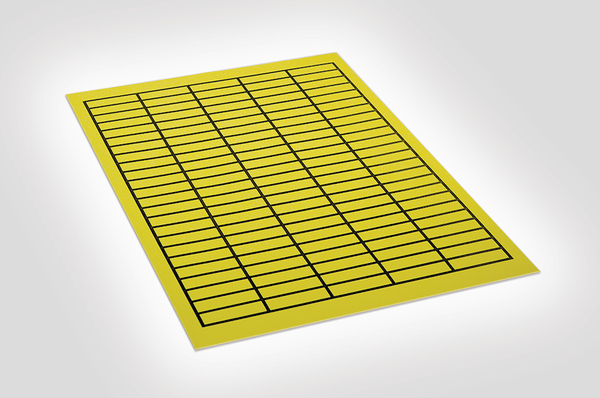

Label, removable, yellow, manual marking, 11.00x38.00mm, 3250pcs.
Art.-No. 597-92527 | TAG125FA4-270-YE Details

  • Yellow fabric adhesive labels
  • A4 sheets
  • Easily remove or reposition labels as required
  • No sticky residue on removal
  • Labels available with or without black border
  • Also suitable for difficult surfaces
  • Use T82 marker pen for market leading mark endurance
Show more

Request your individual offer now

Application These handwritten labels are made of yellow fabric and have been designed for fast on-site identification of component parts, switching devices and other operating equipment. The synthetic rubber adhesive allows the easy removal or repositioning of the label when needed. For professional handwriting we recommend the marking pen T82, equipped with a fast-drying and UV-resistant ink.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Good resistance to water, oils and most solvents, alcohols and gasoline.
Colour Yellow (YE)
Colour Marking Field Yellow (YE)
Description With border
Key product features removable
Material Type 270, Cotton cloth, yellow (270)
PART DESCRIPTION TAG125FA4-270-YE
Pack Cont. 3250pcs.
Package Content packed in Pack
Paper Format A4
Product Family HELASIGN, Material 270 (Yellow), A4 Sheets
Product Group Cotton cloth labels, manual marking
Self adhesive (Yes/No) Yes
Short Description Cotton cloth labels for manual marking 11x38mm yellow
Type TAG125FA4
Height (H) 11.00mm
Print Method manual marking
Thickness (T) 150.0µm
Thickness of Adhesive (TA) nom. 37µm
Thickness of Foil 150
Thickness of foil test method ASTM D3652
Weight/Unit 0.000197kg
Width (W) 38.00mm
Adhesive Synthetic rubber
Curing Temperature from +10 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Initial tack 900g/cm²
Initial tack ASTM D2979
Operating Temperature -29 °C to +80 °C
Peel strength 940 N/m
Peel strength test method PSTC 7
Pre-Printed No
ROHS compliant Yes
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Country of Origin DE
Customs Number 58071090
GTIN-13 / EAN 4031026183473
Labels per Sheet 130pcs.
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 3250
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00116
Packaging 1 - Weight (kg) 0.640001kg
Packaging 1 - Width (m) 0.22m
Sheets per Pack 25pcs.
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
