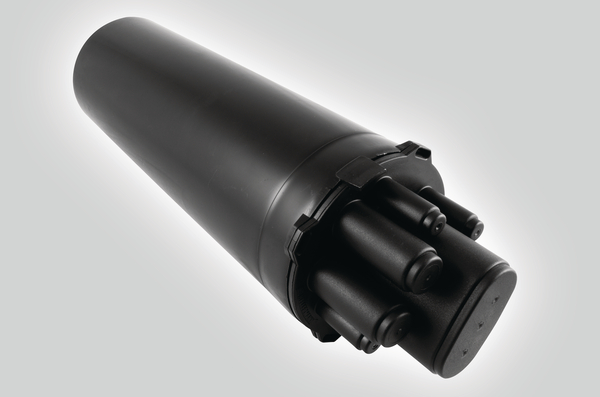

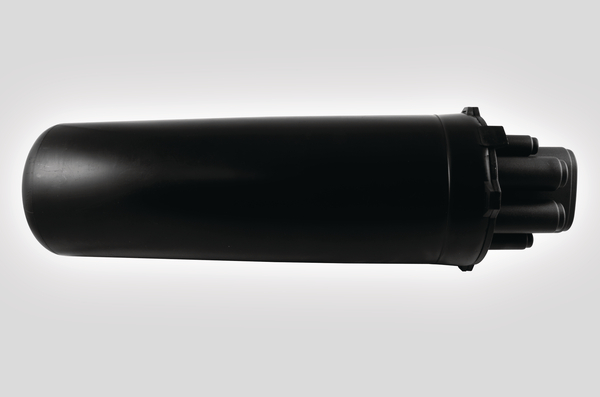

LRBU 100 Pair Closure
Art.-No. 857-10048
| LRBTB-AXXNXXX
|
Copied
- Maximum 100 pair cable capacity

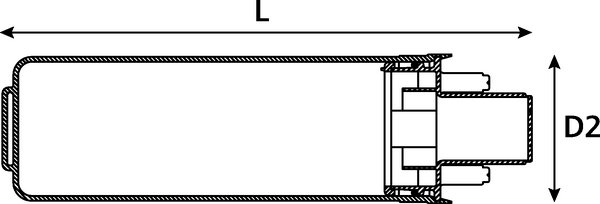

- Cover length of 435mm

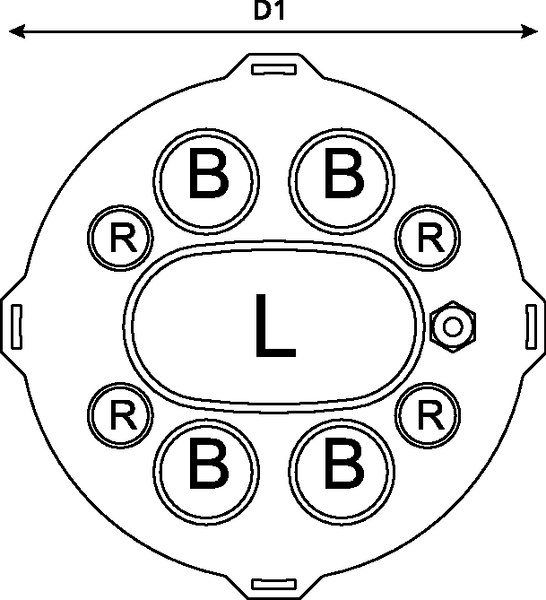

- 9 port base configuration offers 8 and 1 oval port
- Cablelok compatible for all port sizes
- Quick release cover
Show more
Show less
Request quote
More products in this product group:
| Content |
LRBU 9 Port Base A-Length Cover Quick Release Clamp Sealing 'O' Ring Desiccant Cable Ties |
| Cover Type | LRBU |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | LRBTB-AXXNXXX |
| Package Content packed in | Box |
| Port | L, B, R |
| Port count | 9 |
| Product Group | LRBU 100 Pair Closure |
| Technical Description | The LRBU closure is supplied with a Polypropylene base. The 9 port base configuration has 8 round ports and 1 oval port which cover a cable diameter range of 1.7 - 20.0mm for the 9 port base awhen using Cablelok mechanical seals and 6.0 - 24.0mm for the 9 port base when using heathshrink (R ports excluded). The cover diameter and length are 130 x 435mm and each closure has a maximum capacity of 100 copper pairs. |
| Type | LRBTB-AXXNXXX |
