CAT5e Unshielded LJ6C Outlet : 6C-ANG-C5E/WH
38.5 x 25mm - Angled - White, Article number: 852-30039
Features
- Angled presentation for improved patchlead management
- Industry standard LJ6C dimensions
- Ideal for floor or POD box applications
- Unshielded shuttered RJ45 Port
- Slide-In Label Field
- Min Jack Life 1000 insertions
- Part of the HellermannTyton 25 year system warranty
- Backward compatible with voice applications
More products in this product group
CAT5e Unshielded LJ6C Outlet >| Colour | White (WH) |
| Description | HellermannTyton Angled LJ6C Outlets are a low profile module that has been developed in line with industry standard LJ6C dimensions 38.5x25mm to give the user a reliable cabling outlet which reduces the space required. Designed for use in a floor or POD box. The angled presentation improves patchlead alignment and cable management. Designed to support any data or voice protocol that is capable of running over a Category 5e cabling system. |
| Pack Cont. | 10pcs. |
| Package Quantity per | Box |
| PART DESCRIPTION | 6C-ANG-C5E/WH |
| Performance Category | Category 5E (Class D) |
| Port count | 1 |
| Product Family | 38.5 x 25mm - Angled - White |
| Product Group | CAT5e Unshielded LJ6C Outlet |
| Short Description | CAT5e Unshielded LJ6C 38.5x25mm Angled Module - White |
| Technical Description | Each individual Outlet is built and tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C. Cat5e angled LJ6C outlets are backwards compatible with voice applications. |
| Type | 6C-ANG-C5E/WH |

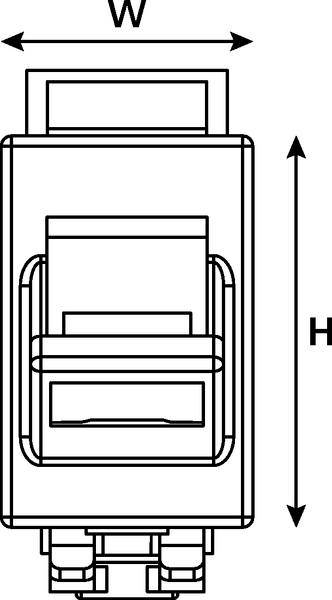

| Depth (D) | 44mm |
| Height (H) | 38.5mm |
| Width (W) | 25mm |
| Dimensions W x H x D | 25 mm x 38.5 mm x 44 mm |
| EAN / GTIN | 5022660833212 |
