This product is now discontinued

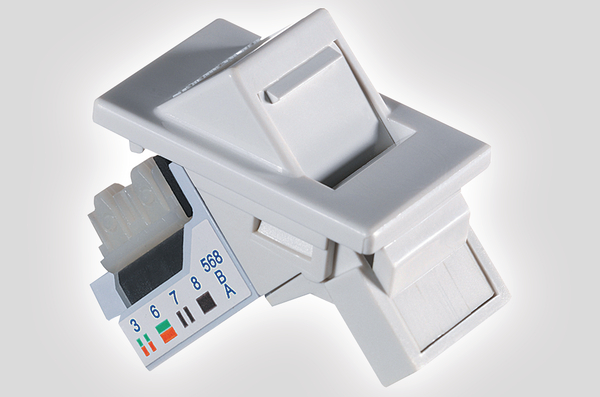

CAT6 Unshielded LJ6C Outlet
Art.-No. 852-30037
| 6C-ANG-C6/WH
|
Copied
This product is not available anymore.
- Angled presentation for improved patchlead management
- Industry standard LJ6C dimensions
- Ideal for floor or POD box applications
- Unshielded shuttered RJ45 Port
- Slide-In Label Field
- Min Jack Life 1000 insertions
- Part of the HellermannTyton 25 year system warranty
- Backward compatible with voice applications
Request your individual offer now
Request quote
More products in this product group:
| Colour | White (WH) |
| Description | HellermannTyton Angled LJ6C Outlets are a low profile module that has been developed in line with industry standard LJ6C dimensions 38.5x25mm to give the user a reliable cabling outlet which reduces the space required. Designed for use in a floor or POD box. The angled presentation improves patchlead alignment and cable management. Designed to support any data or voice protocol that is capable of running over a Category 6 cabling system. |
| Internet Customer Notice | This product is now discontinued |
| Local order number | 6C-ANG-C6/WH |
| PART DESCRIPTION | 6C-ANG-C6/WH |
| Pack Cont. | 10pcs. |
| Package Content packed in | Box |
| Performance Category | Category 6 (Class E) |
| Port count | 1 |
| Product Family | 38.5 x 25mm - Angled - White |
| Product Group | CAT6 Unshielded LJ6C Outlet |
| Technical Description |
Each individual Outlet is built and tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C. Cat6 angled LJ6C outlets are backwards compatible with Cat5e and voice applications. |
| Type | 6C-ANG-C6/WH |
