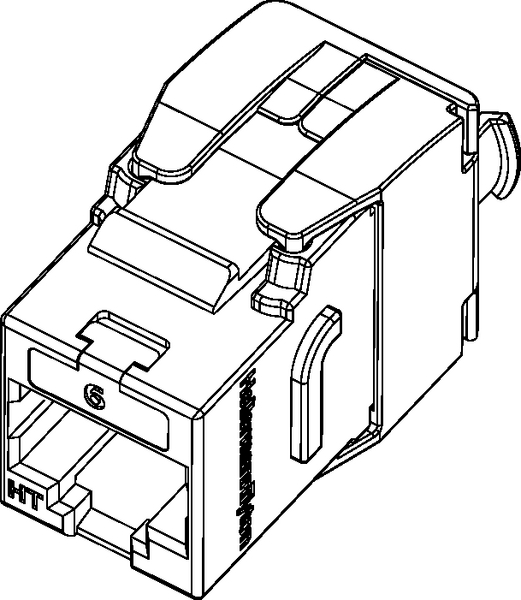

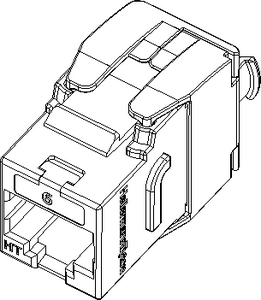

HTC Series CAT6 Tool-free Keystone Jack
Art.-No. 852-25194 | HTC-C6S-KJ12 |

Copied

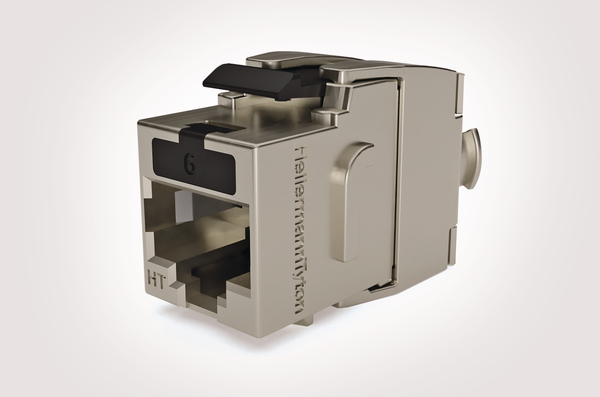

Cat6 Shielded Keystone Jack.
Category 6
Cat6 Shielded Keystone Jack.
HTC Series C6 Keystone Jack.
HTC Series C6 Keystone Jack.
HTC Series C6 Keystone Jack.
HTC Series C6 Keystone Jack.

    • 3rd party tested & verified - component compliant
    • Supports CAT6 1G 250Mhz
    • Plastic free packaging
    • Tool-free design

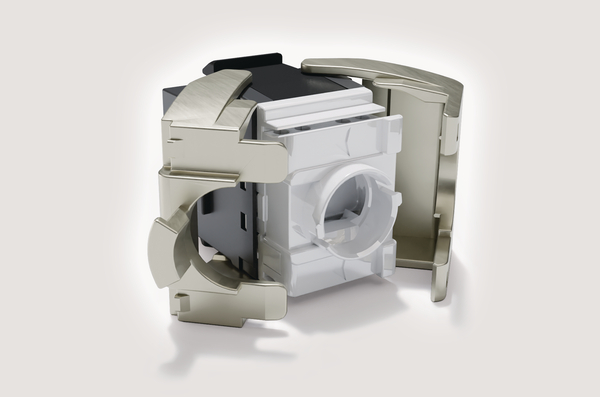

    • Shielded to prevent alien crosstalk (AXT)
    • Short Jack length to support restrictive spaces
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    PART DESCRIPTION HTC-C6S-KJ12
    Performance Category Category 6 (Class E)
    Product Family Shielded Tool-free Keystone Jack
    Product Group CAT6 Shielded Keystone Jack
    Short Description HTC Series CAT6 Tool-free Keystone Jack
    Type HTC-C6S-KJ12

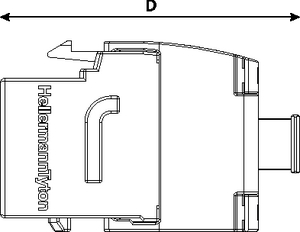

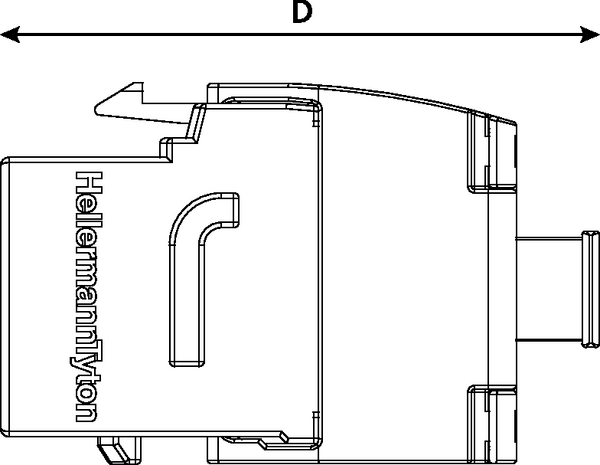

    Depth (D) 34mm

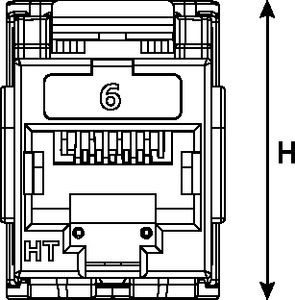

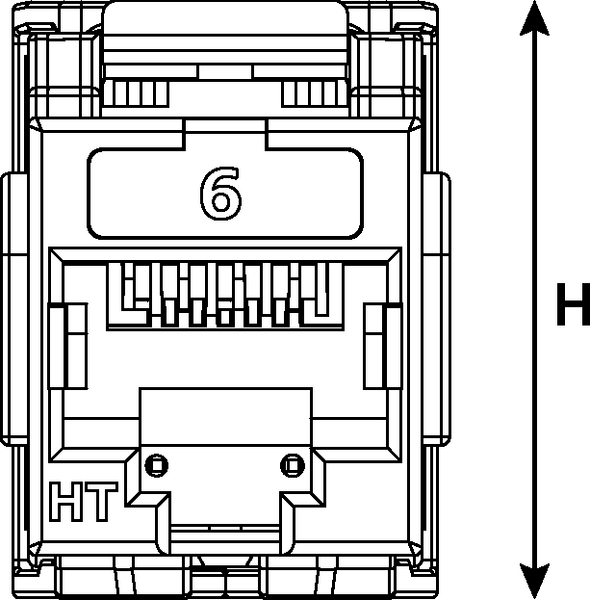

    Height (H) 21mm

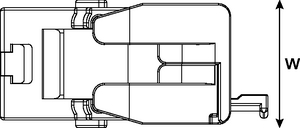

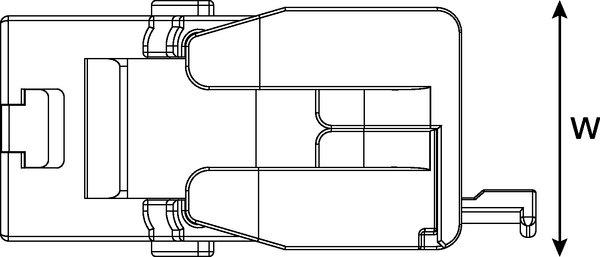

    Width (W) 16mm
    Country of Origin GB
    Dimensions W x H x D 16 mm x 21 mm x 34 mm
    GTIN-13 / EAN 5022660177286
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
