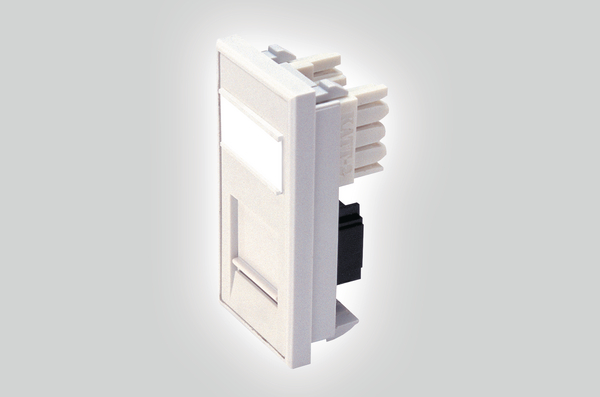

CAT5e Unshielded Euro Outlet : MB08IDCC5E/WH

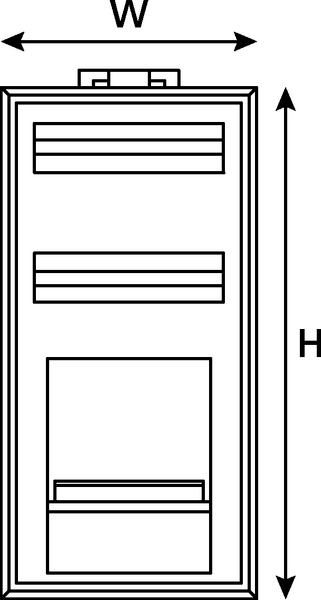

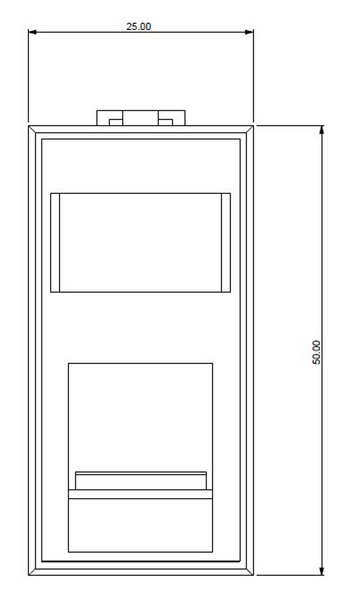

50 x 25mm - Low Profile - White, Article number: 852-10010

Add to watchlist

Features

Industry standard Euro dimensions

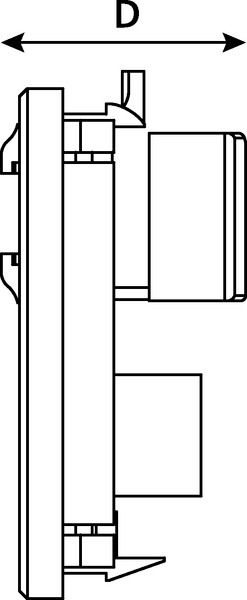

Low Profile 10mm reduced depth
Suitable for applicationns where back box space is limited
Unshielded shuttered RJ45 Port
Slide-in Label Field
Available in black or white
Min Jack Life 1000 insertions
Part of the HellermannTyton 25 year system warranty
Backward compatible with voice applications

More products in this product group

CAT5e Unshielded Euro Outlet >

Base Data

Colour	White (WH)
Description	HellermannTyton Low Profile Euro Outlets have been developed in line with industry standard euro dimensions 50x25mm to give the user a reliable cabling outlet at floor distribution level. Designed for use in wall outlets to support any data or voice protocol that is capable of running over a Category 5e cabling system. The low profile module is 10mm smaller in depth than the standard module and ios therefore suitable for applicationms where space within the back box is limited.
Pack Cont.	10pcs.
Package Quantity per	Box
PART DESCRIPTION	MB08IDCC5E/WH
Performance Category	Category 5E (Class D)
Port count	1
Product Family	50 x 25mm - Low Profile - White
Product Group	CAT5e Unshielded Euro Outlet
Short Description	CAT5E Unshielded Low Profile Euro 50x25mm Module - White
Technical Description	Each individual Outlet is built and tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C. Cat5e Euro outlets are backwards compatible with Cat5e and voice applications.
Type	MB08IDCC5E/WH
