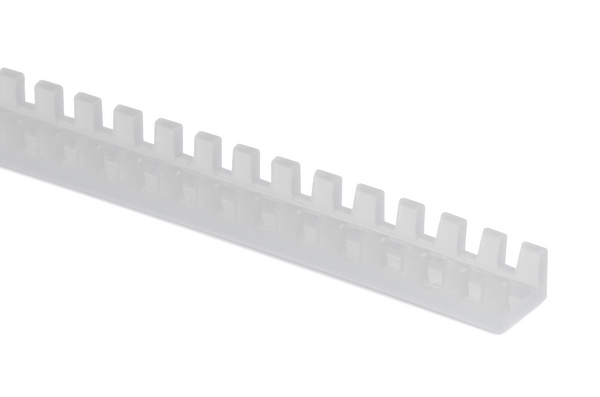

Edge protection 8.1-9.7 mm, Polyamide, natural, 25 m reel
Art.-No. 251-21709 | G51NG-PA6-NA Details

  • Very flexible
  • Easily and securely applied without adhesives
  • Very high abrasion resistance
  • Close-fitting rail for effective, orderly-looking protection

Request your individual offer now

Application Flexiform grommet strips are used to protect cables and wires routed through sharp-edged cutout sections.
Colour Natural (NA)
Local order number G51NGX25
Material Polyamide 6 (PA6)
PART DESCRIPTION G51NG-PA6-NA
Pack Cont. 25m
Package Content packed in Reel
Product Family Flexiform G51N PA6 grommet strip
Product Group Edge protection for cut-out sections
Short Description Edge protection 8.1-9.7 mm, Polyamide, natural, 25 m reel
Type G51NG
Variant Open

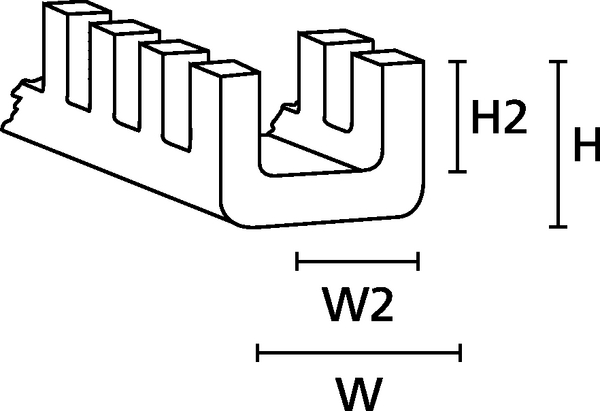

Height (H) 6.8mm
Height (H2) 4.8mm
Panel Thickness max. 8.1 - 9.7mm
Weight/Unit 0.03274kg
Width (W) 13.2mm
Width (W2) 10.1mm
for Panel Thickness min - max 8.1 - 9.7 mm
for Panel Thickness min - max 0.3 - 0.4 "
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
ROHS compliant Yes
Specifications
Specifications NASM21266
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
US Gov. Designation MS21266-7N
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660485978
Packaging 1 - Height (m) 0.085m
Packaging 1 - Length (m) 0.28m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00666
Packaging 1 - Weight (kg) 0.8185kg
Packaging 1 - Width (m) 0.28m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
Packaging 3 - Height (m) 0.083m
Packaging 3 - Length (m) 0.295m
Packaging 3 - Qty 25
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0069
Packaging 3 - Weight (kg) 1.3185kg
Packaging 3 - Width (m) 0.28m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 168.908kg
Packaging 4 - Width (m) 0.8m
Reel Length (imperial) 9.7ft
ETIM 7.0 Key EC001937
ETIM 8.0 Key EC001937
ETIM 9.0 Key EC001937
UNSPSC Key 39131603
