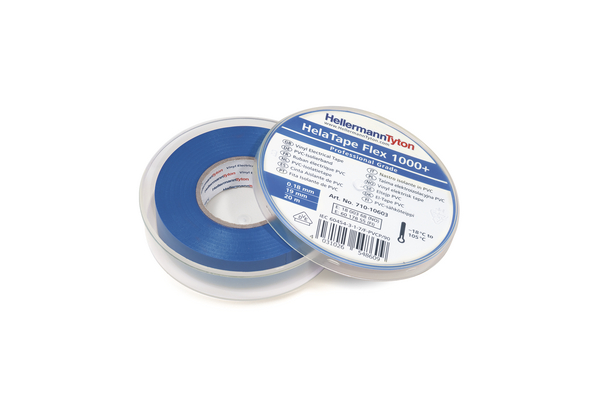

Premium Vinyl Electrical Tape 19mm x 20m blue
Art.-No. 710-10603 | HTAPE-FLEX1000+ C 19x20-PVC-BU Details

  • All-weather highly flexible, professional grade, self-adhesive vinyl electrical tape
  • Excellent performance and durability over wide temperature range from -18°C to +105°C according to CSA C22.2
  • VDE approved according to IEC 60454-3-1-7/F-PVCP/90
  • Used for insulation, protection, fixing, maintenance, colour coding
  • Pressure sensitive high quality rubber based adhesive
  • Excellent resistance to abrasion, moisture, chemicals, corrosion and UV exposure
  • Primary electrical insulation for all wire and cable splices up to 1 kV
  • Protective jacketing for low, medium and high voltage splices and repairs
  • Flame retardant according to UL 510 Standard
  • For indoor and outdoor applications
  • Size 19 mm x 20 m is single packed in a plastic can only 710-10601 comes in a pack of 10 pcs
Show more

Request your individual offer now

Application Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, high and medium voltage splices. Harnessing of wires and cables. Used for indoor and outdoor applications.
Colour Blue (BU)
Material Polyvinylchloride (PVC)
PART DESCRIPTION HTAPE-FLEX1000+ C 19x20-PVC-BU
Pack Cont. 20m
Package Content packed in Reel
Product Family HelaTape Flex 1000+
Product Group Vinyl Electrical Tapes – Premium Vinyl Electrical Tape
Short Description Premium Vinyl Electrical Tape 19mm x 20m blue
Type HTAPE-FLEX1000+ C 19x20
Length (L) 20m
Thickness (T) 0.18mm
Weight/Unit 0.0886kg
Width (W) 19mm
Adhesion to Backing 2.7N/10 mm
Adhesion to Steel 3.0N/10 mm
Breaking Strength 35N/10 mm
Dielectric Strength 45kV/mm
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 300 %
Hazardous Goods No
Insulating (Yes/No) Yes
Operating Temperature -18 °C to +105 °C
ROHS compliant Yes
Self extinguishing Yes
Shelf Life 5 years
Specifications
Specifications IEC 60454-3-1-7/F-PVCP/90, UL 510
Suitable for high voltage (Yes/No) No
Tensile Strength 35N/mm²
UL OCD link Link
UL-File Number E490183
UV-Stabilised Yes
Country of Origin CN
Customs Number 39191012
GTIN-13 / EAN 4031026548593
Packaging 1 - Height (m) 0.022m
Packaging 1 - Length (m) 0.095m
Packaging 1 - Qty 1
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0002
Packaging 1 - Weight (kg) 0.0886kg
Packaging 1 - Width (m) 0.095m
Packaging 3 - Height (m) 0.24m
Packaging 3 - Length (m) 0.405m
Packaging 3 - Qty 80
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0204
Packaging 3 - Weight (kg) 7.588kg
Packaging 3 - Width (m) 0.21m
Packaging 4 - Height (m) 1.104m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2240
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.06
Packaging 4 - Weight (kg) 233.464kg
Packaging 4 - Width (m) 0.8m
Reel Length 20m
Storage Temperature +23 °C
Storage conditions 65% relative humidity.
ETIM 7.0 Key EC000128
ETIM 8.0 Key EC000128
ETIM 9.0 Key EC000128
