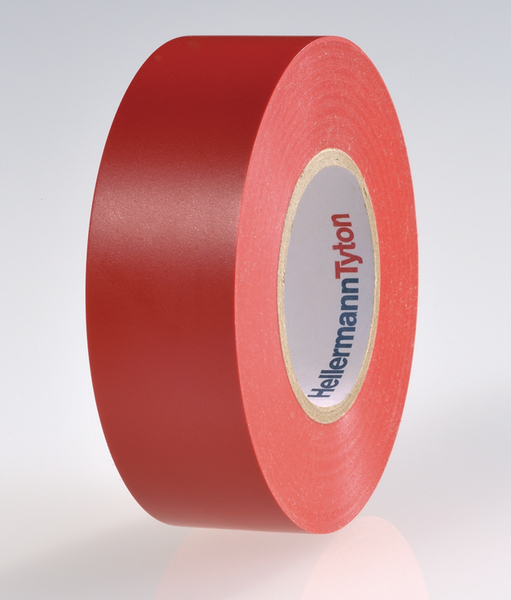

Electrical tape, L=20m, W=19mm, T=0.15mm, red, 10 pcs.
Art.-No. 710-00152
| HTAPE-FLEX15-19x20-PVC-RD
|
Copied
- Vinyl electrical tape in many different colours
- Used for insulation, protection, fixing, maintenance, colour coding and more
- Good resistance to abrasion, sunlight, moisture, chemicals and varying weather conditions
- Highly flexible with outstanding adhesion performance
- Harnessing of wires and cables
- Suitable for mechanical and electrical applications up to 1 kV
- VDE approved according to IEC 60454-3-1-6/F-PVCP/90
- Flame retardant according to IEC 60454-2
Show more
Show less
Request quote
More products in this product group:
Vinyl Electrical Tapes –
Commercial Grade Vinyl Electrical Tape
| Application |
Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, medium and high voltage splices. Wrapping of wire harnesses and cables. Used for indoor and outdoor applications. |
| Colour | Red (RD) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX15-19x20-PVC-RD |
| Package Content | 20m |
| Package Content packed in | Pack |
| Product Family | HelaTape Flex 15 |
| Product Group |
Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape |
| Short Description | PVC Electrical Insulation Tape 19mm x 20m red |
| Type | HTAPE-FLEX15-19x20 |
| Weight/Unit | 0.081496kg |
| Adhesion to Backing | 2.0N/10 mm |
| Adhesion to Steel | 2.2N/10 mm |
| Breaking Strength | 28N/10 mm |
| Dielectric Strength | 45kV/mm |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Elongation at break (min.) | 200% |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | -10 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | IEC 60454-3-1-7/F-PVCP/90 |
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 19.5N/mm² |
|
|
|
| Country of Origin | CN |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026479859 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.075m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.0001125m³ |
| Packaging 1 - Weight (kg) | 0.081496kg |
| Packaging 1 - Width (m) | 0.075m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Qty | 10 |
| Packaging 2 - Type | Pack |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Weight (kg) | 0.81496kg |
| Packaging 2 - Width (m) | 0.267m |
| Packaging 3 - Height (m) | 0.215m |
| Packaging 3 - Length (m) | 0.395m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.014m³ |
| Packaging 3 - Weight (kg) | 8.3696kg |
| Packaging 3 - Width (m) | 0.165m |
| Packaging 4 - Height (m) | 1.004m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 4800 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.964m³ |
| Packaging 4 - Weight (kg) | 423.741kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
