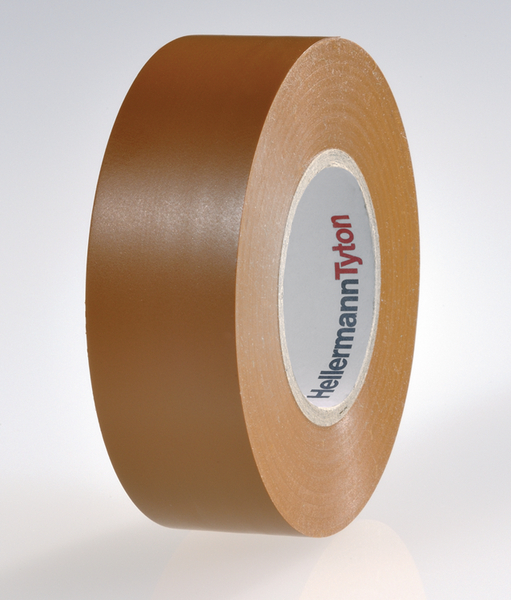

PVC Electrical Insulation Tape 19 mm x 20 m brown
Art.-No. 710-00158 | HTAPE-FLEX15-19x20-PVC-BN Details

  • Vinyl electrical tape in many different colours
  • Used for insulation, protection, fixing, maintenance, colour coding and more
  • Good resistance to abrasion, sunlight, moisture, chemicals and varying weather conditions
  • Highly flexible with outstanding adhesion performance
  • Harnessing of wires and cables
  • Suitable for mechanical and electrical applications up to 1 kV
  • VDE approved according to IEC 60454-3-1-6/F-PVCP/90
  • Flame retardant according to IEC 60454-2
Show more

Request your individual offer now

Application Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, medium, and high voltage splices. Wrapping of wire harnesses and cables. Used for indoor and outdoor applications.
Colour Brown (BN)
Material Polyvinylchloride (PVC)
Pack Cont. 20m
Package Content packed in Pack
PART DESCRIPTION HTAPE-FLEX15-19x20-PVC-BN
Product Family HelaTape Flex 15
Product Group Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape
Short Description PVC Electrical Insulation Tape 19 mm x 20 m brown
Length (L) 20m
Thickness (T) 0.15mm
Weight/Unit 0.081496kg
Width (W) 19mm
Adhesion to Backing 2.0N/10 mm
Adhesion to Steel 2.2N/10 mm
Breaking Strength 28N/10 mm
Dielectric Strength 45kV/mm
Elongation at break 200 %
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Insulating (Yes/No) Yes
Operating Temperature -10 °C to +90 °C
Self extinguishing Yes
Shelf Life 5 years
Specifications
Specifications IEC 60454-3-1-7/F-PVCP/90
Suitable for high voltage (Yes/No) No
Tensile Strength 19.5N/mm²
Country of Origin CN
Customs Number 39191012
GTIN-13 / EAN 4031026479910
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.075m
Packaging 1 - Qty 1
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00011
Packaging 1 - Weight (kg) 0.081496kg
Packaging 1 - Width (m) 0.075m
Packaging 2 - Height (m) 0.195m
Packaging 2 - Length (m) 0.075m
Packaging 2 - Qty 10
Packaging 2 - Type Pack
Packaging 2 - Volume (m³) 0.0011
Packaging 2 - Weight (kg) 0.815kg
Packaging 2 - Width (m) 0.075m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.395m
Packaging 3 - Qty 100
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.014
Packaging 3 - Weight (kg) 8.3696kg
Packaging 3 - Width (m) 0.165m
Packaging 4 - Height (m) 1.004m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 4800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.964
Packaging 4 - Weight (kg) 422.741kg
Packaging 4 - Width (m) 0.8m
Storage conditions 65% relative humidity.
Storage Temperature +23 °C
ETIM 7.0 Key EC000128
ETIM 8.0 Key EC000128
ETIM 9.0 Key EC000128
UNSPSC Key 31201502
