Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape : HTAPE-FLEX15-25x25

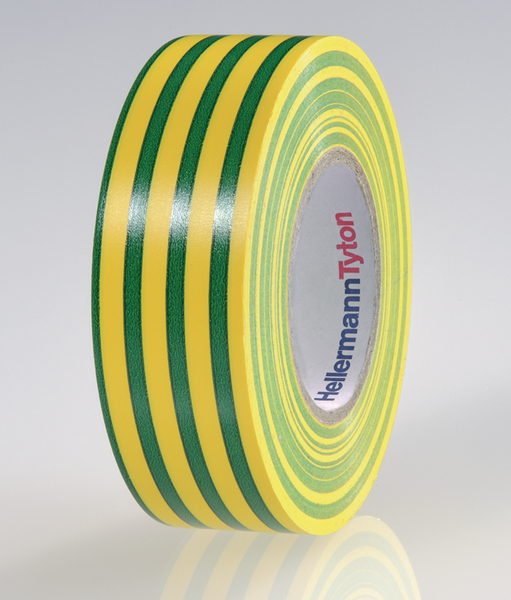

PVC Electrical Insulation Tape 25 mm x 25 m green/yellowArticle number: 710-00139
Features
- Vinyl electrical tape in many different colours
- Used for insulation, protection, fixing, maintenance, colour coding and more
- Good resistance to abrasion, sunlight, moisture, chemicals and varying weather conditions
- Highly flexible with outstanding adhesion performance
- Harnessing of wires and cables
- Suitable for mechanical and electrical applications up to 1 kV
- VDE approved according to IEC 60454-3-1-6/F-PVCP/90
- Flame retardant according to IEC 60454-2
Certifications & Approvals
Application
Primary electrical insulation for all wire and cable splices up to 1 kV.
Protective jacketing for low, medium, and high voltage splices.
Wrapping of wire harnesses and cables.
Used for indoor and outdoor applications.
More products in this product group
Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape >| Colour | Green-Yellow (GNYE) |
| Pack Cont. | 1pc. |
| Package Quantity per | Reel |
| PART DESCRIPTION | HTAPE-FLEX15-25x25-PVC-GNYE |
| Product Family | HelaTape Flex 15 |
| Product Group | Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape |
| Short Description | PVC Electrical Insulation Tape 25 mm x 25 m green/yellow |
| Length (L) | 25m |
| Thickness (T) | 0.15mm |
| Width (W) | 25mm |
| Adhesion to Backing | 2.5N/10 mm |
| Adhesion to Steel | 2.5N/10 mm |
| Breaking Strength | 28N/10 mm |
| Dielectric Strength | 45 kV/mm |
| Elongation at break | 200 % |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Insulating (Yes/No) | Yes |
| Material | Polyvinylchloride (PVC) |
| Operating Temperature - °C | -10 °C to +90 °C |
| Self extinguishing (Yes/No) | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | IEC 60454-3-1-7/F-PVCP/90 |
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 19.5N/mm² |
| UV-Resistant (Yes/No) | Yes |
|
|
|
| GTIN-13 / EAN | 4031026402024 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.08m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.00016m³ |
| Packaging 1 - Weight (kg) | 0.124kg |
| Packaging 1 - Width (m) | 0.08m |
| Packaging 2 - Height (m) | 0.25m |
| Packaging 2 - Length (m) | 0.08m |
| Packaging 2 - Qty | 10 |
| Packaging 2 - Type | Pack |
| Packaging 2 - Volume (m³) | 0.0016m³ |
| Packaging 2 - Weight (kg) | 1.238kg |
| Packaging 2 - Width (m) | 0.08m |
| Packaging 3 - Height (m) | 0.265m |
| Packaging 3 - Length (m) | 0.42m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0189m³ |
| Packaging 3 - Weight (kg) | 12.56kg |
| Packaging 3 - Width (m) | 0.17m |
| Packaging 4 - Height (m) | 0.985m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 3000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.946m³ |
| Packaging 4 - Weight (kg) | 397.8kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| ETIM 6.0 | EC000128 |
| ETIM 7.0 Key | EC000128 |
