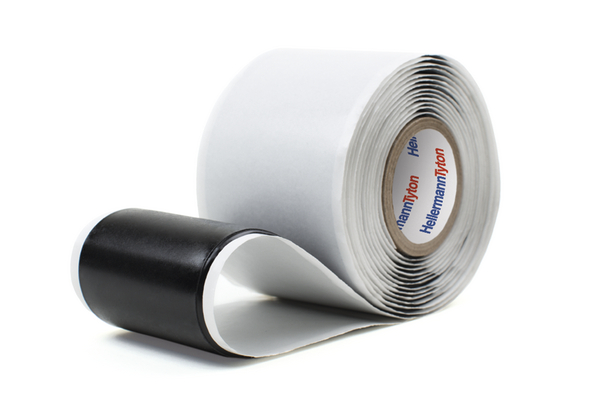

Self-amalgamating low voltage rubber-mastic tape 50.8 mm x 3 m black
Art.-No. 711-00307 | HTAPE-POWER 660-RM-EPR/IIR-BK Details

  • Self-amalgamating rubber mastic tape
  • EPR backing coated with a tacky, temperature-stable mastic adhesive
  • Designed for electrical insulating and moisture sealing applications
  • Can be used as cable jacket replacement
  • Perfect adhesion and sealing for copper and aluminium wires
  • Easily suitable to irregular shapes and surfaces
  • Compatible with all extruded cable insulations
  • UV, moisture, corrosion and chemical resistant
  • Primary electrical insulation for bus bar connections rated up to 35 kV
  • Excellent for repairing e.g. damaged cable sheats against moisture ingress, where finishing with some layers of Helatape Flex will do the mechanical protection
Show more

Request your individual offer now

Application HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on.
Colour Black (BK)
Material Ethylene Propylene Rubber (EPR), Isobutene-Isoprene-Rubber (butyl rubber) (IIR)
PART DESCRIPTION HTAPE-POWER 660-RM-EPR/IIR-BK
Pack Cont. 3m
Package Content packed in Reel
Product Family HelaTape Power 660 RM
Product Group Self-amalgamating Tapes – Rubber Mastic Tape
Short Description Self-amalgamating low voltage rubber-mastic tape 50.8 mm x 3 m black
Type HTAPE-POWER 660-RM
Length (L) 3.0m
Thickness (T) 1.65mm
Weight/Unit 0.340833kg
Width (W) 50.8mm
Dielectric Strength 19.7kV/mm
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 980%
Halogen-free Yes
Hazardous Goods No
Insulating (Yes/No) Yes
Intermittent Operating Temperature +130°C
Operating Temperature -30 °C to +90 °C
ROHS compliant Yes
Self extinguishing Yes
Shelf Life 5 years
Specifications
Suitable for high voltage (Yes/No) No
Tensile Strength 1.5N/mm²
UV-Stabilised Yes
Water Absorption 0.1%
Country of Origin CN
Customs Number 39191012
GTIN-13 / EAN 4031026432946
Packaging 1 - Height (m) 0.115m
Packaging 1 - Length (m) 0.115m
Packaging 1 - Qty 1
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00089
Packaging 1 - Weight (kg) 0.340833kg
Packaging 1 - Width (m) 0.067m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.355m
Packaging 3 - Qty 12
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0153
Packaging 3 - Weight (kg) 4.59kg
Packaging 3 - Width (m) 0.254m
Packaging 4 - Height (m) 1.165m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 648
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.118
Packaging 4 - Weight (kg) 268.86kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +23 °C
Storage conditions 65% relative humidity.
ETIM 7.0 Key EC000128
ETIM 8.0 Key EC000128
ETIM 9.0 Key EC000128
