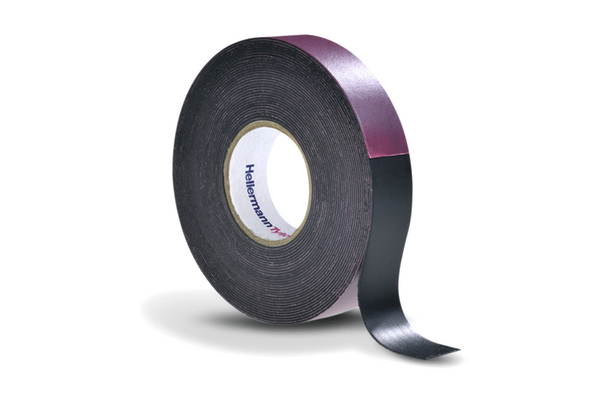

Self-amalgamating low voltage rubber tape 38 mm x 6,7 meter black
Art.-No. 711-10201 | HTAPE-POWER600-38x6.7-NR-BK Details

  • Self-amalgamating low voltage rubber tape
  • Primary insulation at not more than 1 kV Easily suitable to irregular shapes and surfaces
  • Compatible with all extruded dielectric cable insulations
  • Weather resistant and flame retardant according to UL 510
  • Recommended use in conjunction with HelaTape Flex for mechanical protection
Show more

Request your individual offer now

Application HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on.
Colour Black (BK)
Material Natural Rubber (NR)
PART DESCRIPTION HTAPE-POWER600-38x6.7-NR-BK
Pack Cont. 6.7m
Package Content packed in Reel
Product Family HelaTape Power 600
Product Group Self-amalgamating Tapes – Low Voltage Rubber Tape
Short Description Self-amalgamating low voltage rubber tape 38 mm x 6,7 meter black
Type HTAPE-POWER600-38x6.7
Length (L) 6.7m
Thickness (T) 0.76mm
Weight/Unit 0.305789kg
Width (W) 38mm
Dielectric Strength 14kV/mm
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 300 %
Halogen-free Yes
Hazardous Goods No
Insulating (Yes/No) Yes
Intermittent Operating Temperature +95°C
Operating Temperature -40 °C to +80 °C
ROHS compliant Yes
Self extinguishing Yes
Shelf Life 5 years
Specifications UL 510
Specifications
Suitable for high voltage (Yes/No) No
Tensile Strength 2N/mm²
UL OCD link Link
UL-File Number E490183
UV-Stabilised No
Country of Origin CN
Customs Number 39191012
GTIN-13 / EAN 4031026548821
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.1m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00038
Packaging 1 - Weight (kg) 0.306kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.41m
Packaging 3 - Qty 32
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0153
Packaging 3 - Weight (kg) 10.285kg
Packaging 3 - Width (m) 0.22m
Packaging 4 - Height (m) 1.165m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1344
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.118
Packaging 4 - Weight (kg) 452.98kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +23 °C
Storage conditions 65% relative humidity.
ETIM 7.0 Key EC000128
ETIM 8.0 Key EC000128
ETIM 9.0 Key EC000128
