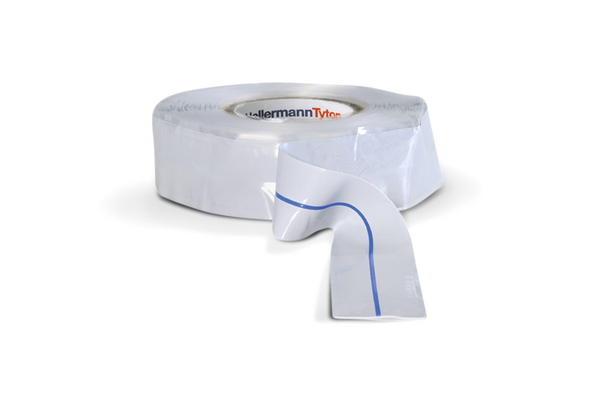

Self-amalgamating high voltage silicone tape 25 mm x 9.1 m grey
Art.-No. 711-10400 | HTAPE-POWER800-SI-GY Details

  • Self-amalgamating and self-cleaning, chemically cross-linked silicone rubber tape
  • Triangular cross-section with centre line for precise half-overlapping
  • Resistant to creepage and surface erosion
  • Fuses into solid mass after application
  • Weather, UV and oil resistant
  • Recommended use for high temperature silicone insulated cables and outdoor machinery and transformers
Show more

Request your individual offer now

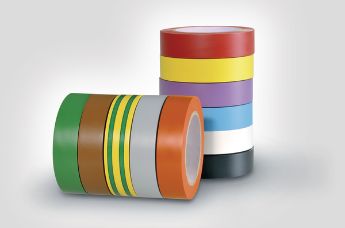

Application HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on.
Colour Grey (GY)
Material Silicone (SI)
PART DESCRIPTION HTAPE-POWER800-SI-GY
Pack Cont. 9.1m
Package Content packed in Reel
Product Family HelaTape Power 800
Product Group Self-amalgamating Tapes – Silicone Rubber Tape
Short Description Self-amalgamating high voltage silicone tape 25 mm x 9.1 m grey
Type HTAPE-POWER800
Length (L) 9.1m
Thickness (T) 0.51mm
Weight/Unit 0.14072kg
Width (W) 25mm
Breaking Strength 18N/10 mm
Dielectric Strength 23.5kV/mm
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 400 %
Halogen-free Yes
Hazardous Goods No
Insulating (Yes/No) Yes
Intermittent Operating Temperature +260°C
Operating Temperature -54 °C to +180 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Suitable for high voltage (Yes/No) Yes
Tensile Strength 7.0N/mm²
UV-Stabilised Yes
Volume Resistance 10¹⁴ Ω cm
Country of Origin CN
Customs Number 39191080
GTIN-13 / EAN 4031026548845
Packaging 1 - Height (m) 0.11m
Packaging 1 - Length (m) 0.11m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00046
Packaging 1 - Weight (kg) 0.156kg
Packaging 1 - Width (m) 0.038m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.355m
Packaging 3 - Qty 24
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0151
Packaging 3 - Weight (kg) 4.237kg
Packaging 3 - Width (m) 0.25m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1296
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 249.813kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000128
ETIM 8.0 Key EC000128
ETIM 9.0 Key EC000128
