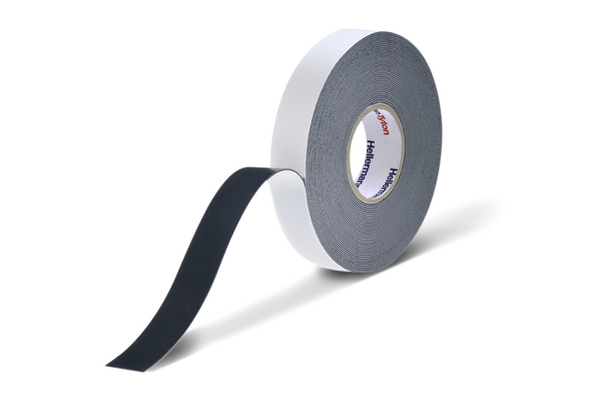

Self-amalgamating Tapes – High Voltage Rubber Tape HTAPE-POWER810

HelaTape Power 810, Article number: 711-10401

HelaTape Power 810 enables jacketing splices up to 69 kV.

Features

  • Self-amalgamating tape for insulating and jacketing splices up to 69 kV
  • Halogen-free with outstanding corona, ozone and UV-resistance

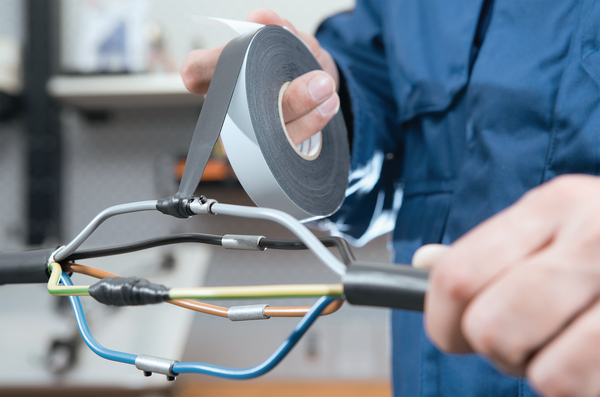

  • Ideal for sealing of terminations, electrical connections and cable jacket repair
  • Void-free, electrically stable layering
  • Protects bus bar components
  • Excellent moisture, corrosion and chemical resistance
  • Compatible with all extruded cable insulations

Certifications & Approvals

Application

HellermannTyton offers a comprehensive range of Vinyl, Rubber and Cloth Tapes for bundling, insulating, fixing, sealing and marking applications around all kinds of electrical applications. Vinyl electrical tapes are designed for low voltage applications and available in different dimensions and colours. Rubber tapes are suitable for sealing and insulating cables and splices in low, medium and high voltage applications. HelaTape Cloth tapes are extremely strong and ideal for identification, fixing, bundling and repair purposes. HelaTape Protect is used to build professional cable and wiring harnesses.

HelaTape Power 810 is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Self-amalgamating tape 19 mm x 9.1 m black
GLOBAL PART DESCRIPTION HTAPE-POWER810-EPR-BK
Pack Cont. 9.1m
Package Quantity per Reel
Product Family HelaTape Power 810
Product Group Self-amalgamating Tapes – High Voltage Rubber Tape
Length (L) 9.1m
Thickness (T) 0.76mm
Width (W) 19mm
Dielectric Strength 30 kV/mm
Elongation at break 750 %
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Insulating (Yes/No) Yes
Intermittent Operating Temperature +130°C
Material Ethylene Propylene Rubber (EPR)
Operating Temperature - °C +90 °C
Self extinguishing (Yes/No) ETIM Yes
Specifications
Suitable for high voltage (Yes/No) Yes
Tensile Strength 2.4N/mm²
Volume Resistance 10¹⁶ Ω cm
Water Absorption 0.06%
EAN / GTIN 4031026548852
Packaging 1 - Height (m) 0.115m
Packaging 1 - Length (m) 0.115m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00026m³
Packaging 1 - Weight (kg) 0.164kg
Packaging 1 - Width (m) 0.02m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.355m
Packaging 3 - Qty 42
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0153m³
Packaging 3 - Weight (kg) 7.395kg
Packaging 3 - Width (m) 0.254m
Packaging 4 - Height (m) 1.165m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2268
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.118m³
Packaging 4 - Weight (kg) 420.326kg
Packaging 4 - Width (m) 0.8m
Weight 0.151kg
ETIM 6.0 EC000128
Electrical Tape HelaTape

Electrical Tape HelaTape

With HelaTape HellermannTyton provides a wide range of PVC- and rubber-based electrical tapes for sealing, insulation and bundling of cable and conduits.
