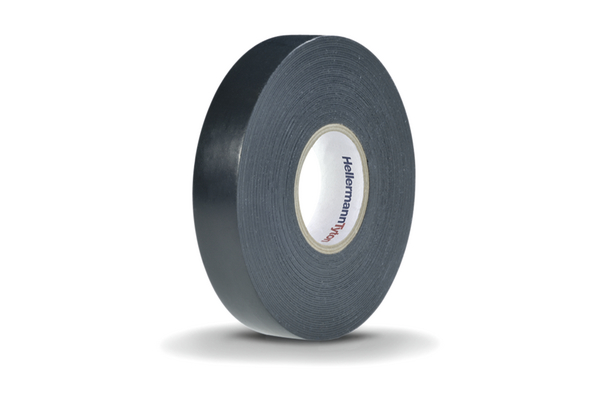

Self-amalgamating Tapes – High Voltage Rubber Tape (Linerless) : HTAPE-POWER820

Self Amalgamating Tape 0.76mm thick / 19mm x 9.1m black, Article number: 711-00402

Features

  • Self-amalgamating, linerless tape for insulating and jacketing splices up to 69 kV
  • Excellent electrical, chemical and physical properties
  • Building stress cones and jacketing of terminations, bus bars and joints
  • Quicker application due to linerless design
  • Uniform and void-free layering
  • Very flexible to conform to the most complex shapes
  • Compatible with all extruded cable insulations

Certifications & Approvals

Application

HellermannTyton offers a comprehensive range of Vinyl, Rubber and Cloth Tapes for bundling, insulating, fixing, sealing and marking applications around all kinds of electrical applications. Vinyl electrical tapes are designed for low voltage applications and available in different dimensions and colours. Rubber tapes are suitable for sealing and insulating cables and splices in low, medium and high voltage applications. HelaTape Cloth tapes are extremely strong and ideal for identification, fixing, bundling and repair purposes. HelaTape Protect is used to build professional cable and wiring harnesses.

Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per Reel
PART DESCRIPTION HTAPE-POWER820-EPR-BK
Product Family HelaTape Power 820
Product Group Self-amalgamating Tapes – High Voltage Rubber Tape (Linerless)
Short Description Self Amalgamating Tape 0.76mm thick / 19mm x 9.1m black
Length (L) 9.1m
Thickness (T) 0.76mm
Width (W) 19mm
Dielectric Strength 31.5 kV/mm
Elongation at break 750 %
ELV compliant Dir. Art. 4 (2) YES
Halogenfree No
Hazardous good No
Insulating (Yes/No) Yes
Intermittent Operating Temperature +130°C
Material Ethylene Propylene Rubber (EPR)
Operating Temperature - °C +90 °C
Self extinguishing (Yes/No) ETIM Yes
Specifications
Suitable for high voltage (Yes/No) Yes
Tensile Strength 2.8N/mm²
UV-Resistant (Yes/No) Yes
Volume Resistance 10¹⁶ Ω cm
Water Absorption 0.06%
EAN / GTIN 4031026405865
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00029
Packaging 1 - Weight (kg) 0.189kg
Packaging 1 - Width (m) 0.12m
Packaging 3 - Height (m) 0.105m
Packaging 3 - Length (m) 0.39m
Packaging 3 - Qty 45
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0152
Packaging 3 - Weight (kg) 9.001kg
Packaging 3 - Width (m) 0.37m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1890
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 399.021kg
Packaging 4 - Width (m) 0.8m
Weight 0.189kg
ETIM 6.0 EC000128
ETIM 7.0 Key EC000128
