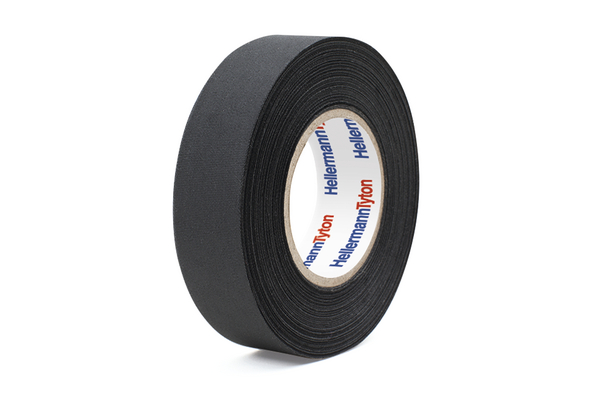

Wire Harness Tape – Hand-tearable Cloth Tape : HTAPE-PROTECT180
Polyester Tape 19mm x 25 m blackArticle number: 712-10002
Features
- High quality polyester fabric harnessing tape
- Rubber-based adhesive offers very good heat and media resistance
- High temperature stability from -40 °C to +125 °C
- Temperature resistance tested according to LV312
- Very good resistance against abrasion
- Material is very flexible and tearable by hand
- Excellent ageing resistance, and resistant to rotting in wet or damp conditions such as e.g. white goods and automotive, etc.
Certifications & Approvals
Application
HelaTape Protect tapes are prefereably used for cable harnessing in different industries.
More products in this product group
Wire Harness Tape – Hand-tearable Cloth Tape >| Colour | Black (BK) |
| Pack Cont. | 1Reel |
| Package Quantity per | Reel |
| PART DESCRIPTION | HTAPE-PROTECT180-PET-BK |
| Product Family | HelaTape Protect 180 |
| Product Group | Wire Harness Tape – Hand-tearable Cloth Tape |
| Short Description | Polyester Tape 19mm x 25 m black |
| Length (L) | 25m |
| Thickness (T) | 0.18mm |
| Width (W) | 19mm |
| Adhesion to Backing | 3.0N/10 mm |
| Adhesion to Steel | 3.0N/10 mm |
| Breaking Strength | 65N/10 mm |
| Elongation at break | 15 % |
| ELV compliant Dir. Art. 4 (2) | YES |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyester (PET) |
| Operating Temperature - °C | -40 °C to +125 °C |
| Specifications |
|
|
|
|
| GTIN-13 / EAN | 4031026566887 |
| Packaging 1 - Height (m) | 0.019m |
| Packaging 1 - Length (m) | 0.083m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.00013m³ |
| Packaging 1 - Weight (kg) | 0.093kg |
| Packaging 1 - Width (m) | 0.083m |
| Packaging 3 - Height (m) | 0.22m |
| Packaging 3 - Length (m) | 0.355m |
| Packaging 3 - Qty | 80 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0148m³ |
| Packaging 3 - Weight (kg) | 7.957kg |
| Packaging 3 - Width (m) | 0.19m |
| Packaging 4 - Height (m) | 1.245m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 4800 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.195m³ |
| Packaging 4 - Weight (kg) | 498.427kg |
| Packaging 4 - Width (m) | 0.8m |
| ETIM 6.0 | EC000128 |
| ETIM 7.0 Key | EC000128 |
