09/12/2024

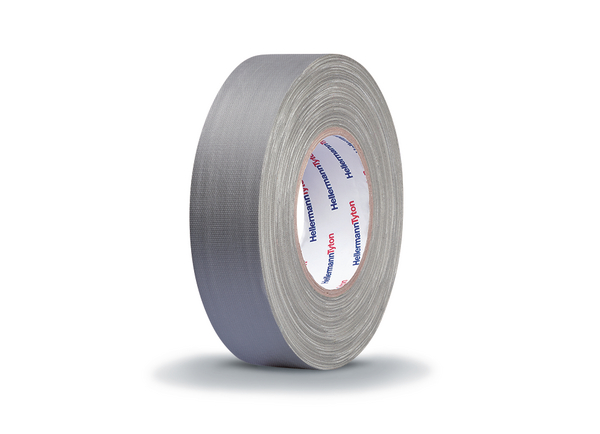

Textile Tape 19mm x 10m grey
Art.-No. 712-00206 | HTAPE-TEX-19x10-CO-GY Details

  • High quality PE-coated cloth tape with good weather resistance
  • Total thickness of 0.31 mm for high tensile strength
  • Highly tear-resistant in longitudinal direction
  • Easy to tear-off by hand in transverse direction
  • Matt surface finish for use in stage constructions and for exhibitions to avoid light reflections
  • Useful for various applications like bundling, fixing, identification, marking and protection
  • HelaTape Tex can be removed without residues due to high quality rubber based adhesive
Show more

Request your individual offer now

Application HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on.
Colour Grey (GY)
Material Cotton (CO)
PART DESCRIPTION HTAPE-TEX-19x10-CO-GY
Pack Cont. 10m
Package Content packed in Reel
Product Family HelaTape Tex
Product Group Technical Tapes – Cloth Tape
Short Description Textile Tape 19mm x 10m grey
Type HTAPE-TEX-19x10
Length (L) 10m
Thickness (T) 0.31mm
Weight/Unit 0.045kg
Width (W) 19mm
Adhesion to Backing 3.0N/10 mm
Adhesive Rubber
Breaking Strength 64N/10 mm
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 10 %
Halogen-free Yes
Hazardous Goods No
Insulating (Yes/No) No
Operating Temperature -30 °C to +80 °C
ROHS compliant Yes
Self extinguishing No
Shelf Life 24 months
Specifications
Suitable for high voltage (Yes/No) No
Tensile Strength 64N/mm²
UV-Stabilised No
Country of Origin ID
Customs Number 59061000
GTIN-13 / EAN 4031026476865
Packaging 1 - Height (m) 0.019m
Packaging 1 - Length (m) 0.125m
Packaging 1 - Qty 1
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0003
Packaging 1 - Weight (kg) 0.045kg
Packaging 1 - Width (m) 0.125m
Packaging 3 - Height (m) 0.26m
Packaging 3 - Length (m) 0.26m
Packaging 3 - Qty 108
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0176
Packaging 3 - Weight (kg) 5.36kg
Packaging 3 - Width (m) 0.26m
Packaging 4 - Height (m) 1.184m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 5184
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.137
Packaging 4 - Weight (kg) 278.28kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +23 °C
Storage conditions 65% relative humidity.
ETIM 7.0 Key EC000128
ETIM 8.0 Key EC000128
ETIM 9.0 Key EC000128
