Unloaded MDU S3
Art.-No. 857-01480
| MDU-S3
|
Copied
- 7 Input/Output Ports
- Horizontal/Vertical Lay Through Capability
- Suitable for use with 250µm IR Systems
- Inset position for Customer Logo
- IP54/IK08
- UV Stable
- V0 Rating
Request your individual offer now
Request quote
More products in this product group:
| Application | Desigined for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Pont (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors. |
| Colour | Grey RAL 7035 (RAL7035) |
| Content |
S3 Enclosure 3 x Entry/Exit Port Blanks In-built spirit level Fibre Picker Wall Mounting Kit |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | MDU-S3 |
| Package Content | 1pc. |
| Package Content packed in | EA |
| Port count | 7 |
| Product Family | Fibre Optic External/Internal Enclosure |
| Product Group | S3 Series MDU/MBU Enclosures |
| Short Description | Unloaded MDU S3 |
| Technical Description |

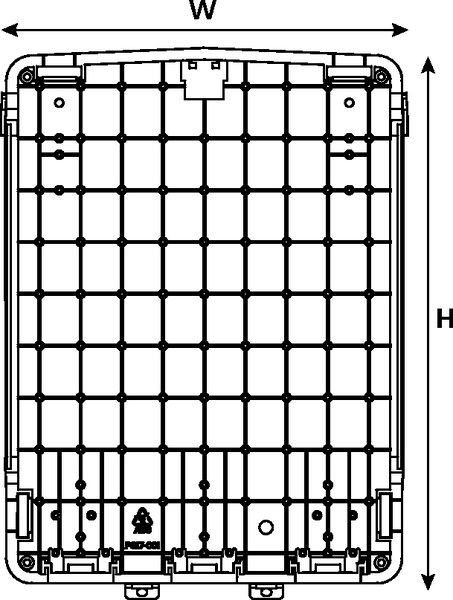

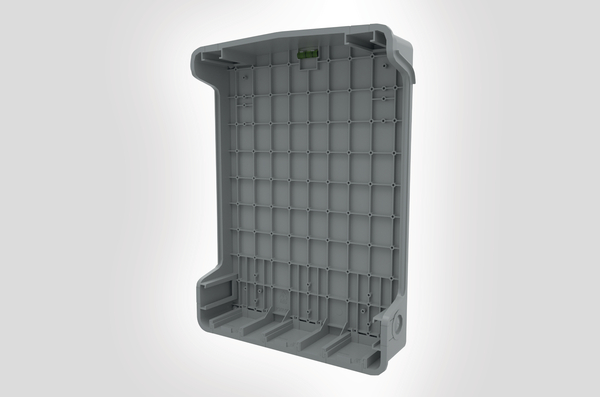

A 340 x 247 x 76mm (H x W x D) enclosure manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene). The enclosure is UV stable with an IP54, IK08 and V0 rating. Designed with 7 input/output ports, 3 across the bottom, 2 on the top and 1 on each side, each port will accommodate a single 20mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure. |
| Type | MDU-S3 |
| Variant | Indoor/Outdoor FTTx Enclosures |
| Weight/Unit | 1.07kg |
