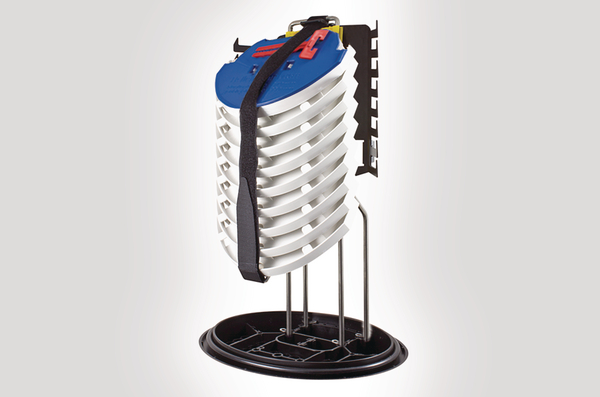

FDN 59 port AB length tubed closure with multi-ribbon tray and basket
Art.-No. 857-00975
| FDNTB-ABRCR37
|
Copied
- Maximum 108 (8 or 12) ribbon cable splice capacity
- 58 round ports and 1 oval port
- Supplied with 9 x Multi-Ribbon Moulded Splice Holder Trays
- Maximum of 12 (8 or 12) ribbon cable splices per tray
- Fibre storage basket for loop through applications supplied as standard
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Content |
FDN 59 Port Base AB-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Fibre Storage Basket Tray Support Frame Anchor Fixing Kit (3) 9 x Multi-Ribbon Trays Tray Tool Hook and Loop Securing Straps Isopropyl Alcohol Wipes Desiccant Installation Guide |
| Cover Type | AB |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | FDNTB-ABRCR37 |
| Package Content packed in | kit |
| Port | L, T, S, B, R |
| Port count | 1, 2, 4, 2, 52 |
| Product Family | AB Length with Multi-Ribbon Tray with Basket |
| Product Group | FDN 59 Port Tubed Closure |
| Qty Trays | 9 |
| Short Description | FDN 59 port AB length tubed closure with multi-ribbon tray and basket |
| Splice Capacity | 108 |
| Technical Description |

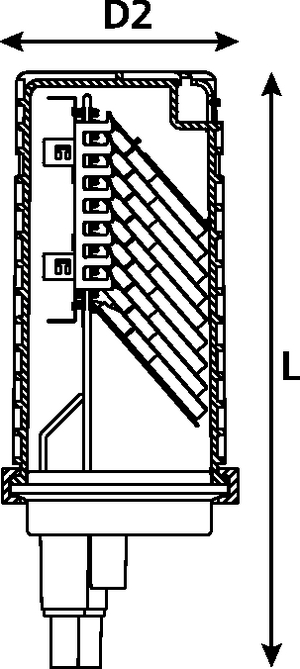

The FDN 59 Port AB length closure is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 18 Multi-Ribbon cable trays giving a maximum splice capacity of 108 (8 or 12 fibre) ribbon cables based on 12 ribbon cable splices per tray. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white with a clear cover which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. The Multi-Ribbon tray can also accommodate 3A splices when used with the appopriate tubefix connectors and transport tubing (See Chapter 13 – Accessories). |
| Type | FDNTB-ABRCR37 |
| Type of Tray | Multi-Ribbon |
