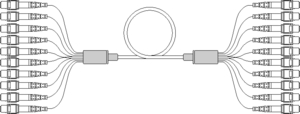

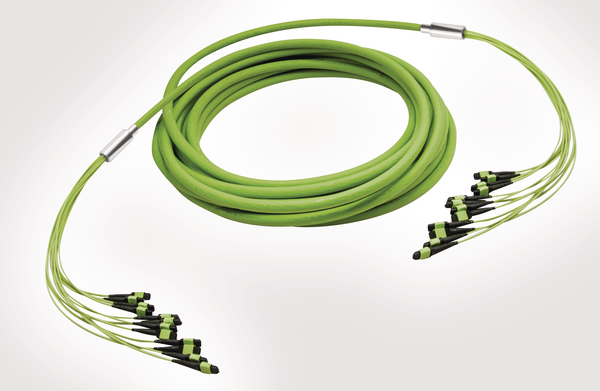

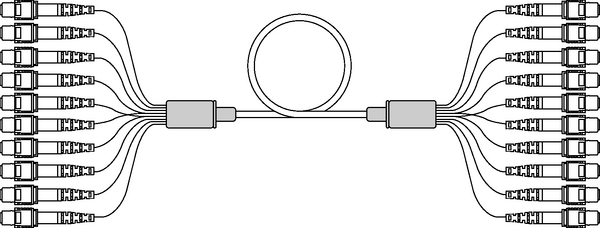

MTP to MTP Fan Out
Art.-No. 855-32178
| FLW96M5-MFMF12G-10.0M
|
Copied
- High performance low loss Elite® Connectors from US Conec
- Compatible with all MTP RapidNet Cassettes
- Available in OM4 and OM5
- Pre-tested with test results supplied
- Female MTP Connectors
Request your individual offer now
Request quote
More products in this product group:
| Application | RapidNet fan out to fan out cables remove localised patching at both ends, saving space in the cabinets and reducing optical losses in the link. These cables are offered in various configurations and are particularly suited to applications where the active equipment or hardware at each end is located either in the same cabinet or row. |
| Cable Configuration | 8 Core |
| Colour | Light Green (LTGN) |
| Connector Colour | Light Green (LTGN) |
| Connector Type | MTP |
| Description |
The MTP to MTP Fan Out is designed to provide a high density inter-connect which uses minimum space making it an ideal solution for patching active hardware in data centres where space is at a premium. The Fan Out cable is a multi-core cable that has a smaller diameter than the standard fibre patch lead and therefore takes up less space in the trays and pathways. |
| PART DESCRIPTION | FLW96M5-MFMF12G-10.0M |
| Package Content | 10m |
| Performance Category | OM5 Multimode |
| Product Family | 8 Fibre MTP Fan Out Cable |
| Product Group | MTP to MTP Fan Out |
| Technical Description | US Conec MTP Connectors provide quick and simple connection for 8 fibres in a single housing. The Elite® low loss Connector ensures the optical alignment through patented high precision pins and floating ferrule and conforms to IEC 61754-7 and TIA 604-5. NB. Part numbers shown are for 10m length, other lengths are available. |
| Type | FLW96M5-MFMF12G-10.0M |
FLS08M4-MFMFXM-10.0M
855-32163
FLS08M5-MFMFXG-10.0M
855-32165
FLS024M4-MFMFXM-10.0M
855-32167
FLS024M5-MFMFXG-10.0M
855-32169
FLS48M4-MFMFXM-10.0M
855-32171
FLS48M5-MFMFXG-10.0M
855-32173
FLS96M4-MFMF12M-10.0M
855-32175
FLS96M5-MFMF12G-10.0M
855-32177
