26/06/2026
Available individually “without cable ties” only as consumables for the ATS flex.

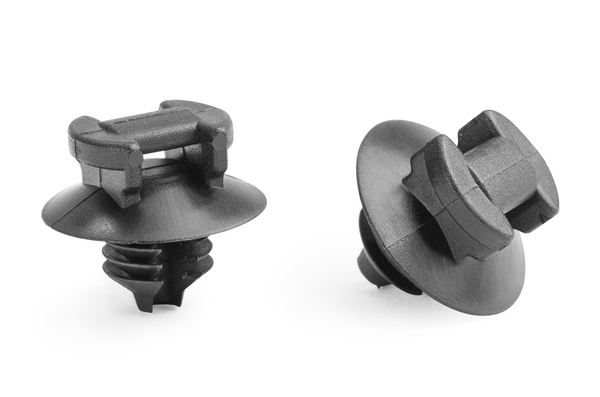

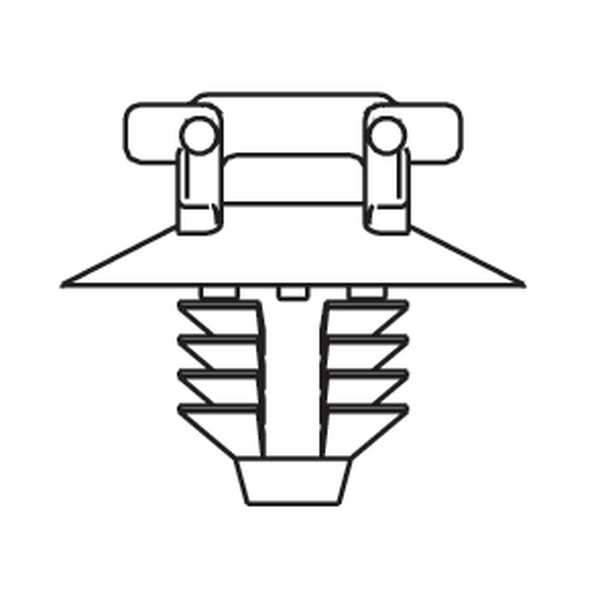

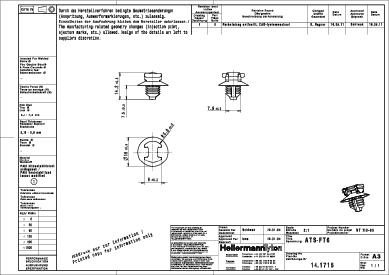

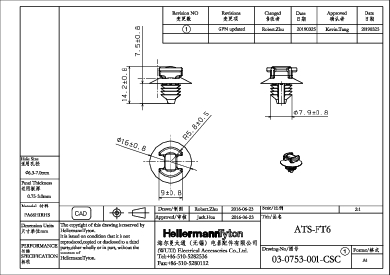

Cable tie mount, T=0.75 - 3.0mm, ⌀6.3 - 7.0 mm, black, 2500pcs.


Art.-No. 102-67090

| ATSFT6-PA66HIRHS-BK

 |

Copied
  • Clips to fix cables and harnesses in the automotive and white goods industries
  • Optimized for use automatic cable tying systems
  • Easy to apply
  • The fixing elements can be tied automatically with ATS Flex


Colour Black (BK)
Fixation Method Fir Tree
Internet Customer Notice Available individually “without cable ties” only as consumables for the ATS flex.
Key product features products for automatic tools
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION ATSFT6-PA66HIRHS-BK
Package Content 2500pcs.
Package Content packed in Bag
Product Family Fir tree clips for automatic cable tying systems
Product Group Automatic bundling
Short Description Foot sections with a slat geometry specially designed for use with an ATS 3080 or ATS flex autotool.
Type ATSFT6
Bundle ⌀ 0.0-80.0mm
Bundle ⌀ max. 80.0mm
Bundle ⌀ min. 0.0mm
Length (L) 16mm
Panel Thickness 0.75 - 3.0mm
Width (W) 16mm
for Hole ⌀ (FH) 6.3 - 7.0 mm
for Panel Thickness min - max 0.8 - 3 mm
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin CN
GTIN-13 / EAN 4031026570471
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
