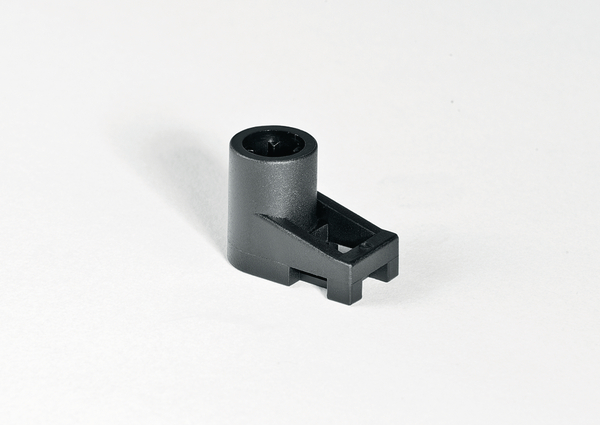

Cable tie mount for stud, Ø5.0 mm, black, 500pcs.
Art.-No. 151-03301 | CTMS5-PA66-BK Details

  • Ideal for cable ties up to 4.8 mm wide
  • Simply pushed by hand onto an ISO or Fir Tree stud

Request your individual offer now

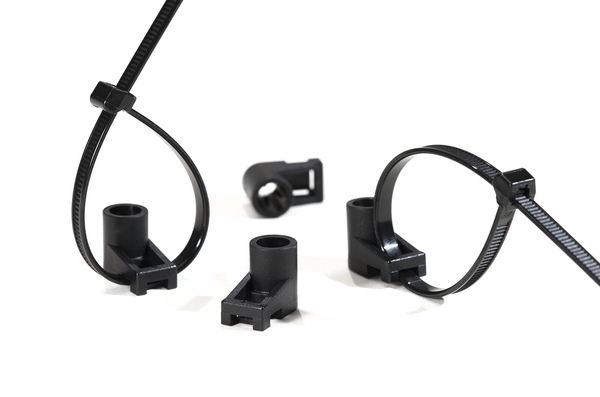

Application In areas with limited space these mounting bases allow the cable to be slightly offset from the fixing stud, and can be installed in the equipment prior to the cable installation. A major cost saving can be made using these products as they will allow the use of many different sizes of standard cable ties without the need to stock a wide range of specific fixing ties.
Application Tool MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT
Colour Black (BK)
Fixation Method Weld Stud Fixing
Local order number CTMS5.NB6P
Material Polyamide 6.6 (PA66)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION CTMS5-PA66-BK
Product Family CT-Series
Product Group Fixing Elements for Weld Studs
Short Description Fixing Elements for Weld Studs 19x10 black
for Hole ∅ (FH) 5.0 mm

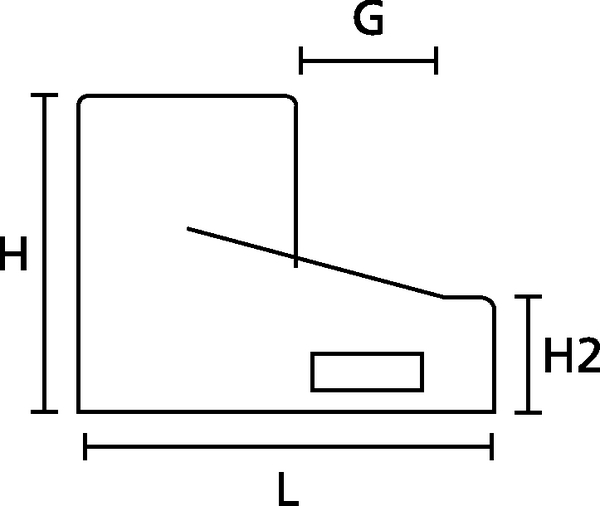

Height (H) 14.5mm
Height (H2) 5.3mm
Length (L) 19.0mm
Min Stud Length 5.0mm
Strap Width max. (G) 5mm
Stud ∅ 5.0 mm
Weight/Unit 0.001kg
Width (W) 10.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660302824
Packaging 1 - Height (m) 0.358m
Packaging 1 - Length (m) 0.592m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.04239
Packaging 1 - Weight (kg) 0.550001kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 9.420016kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 190.56kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
