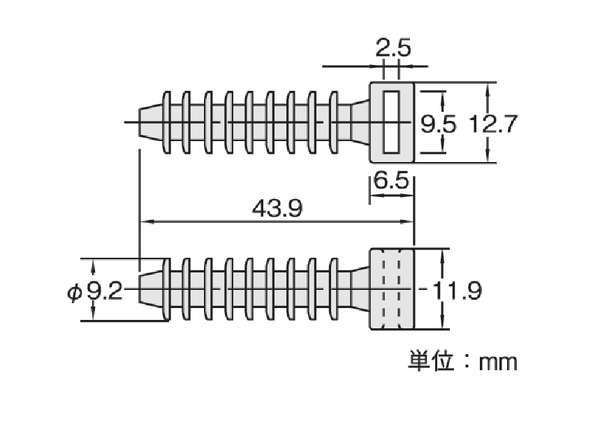

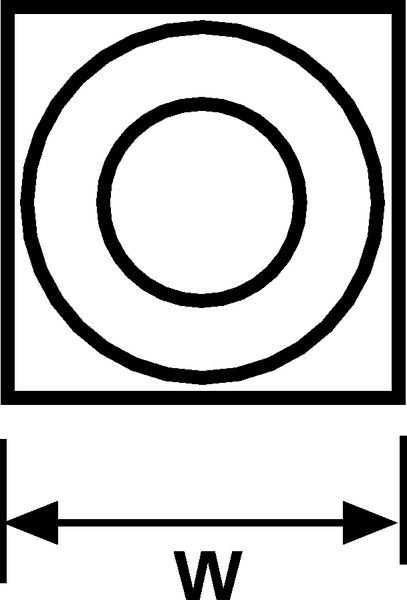

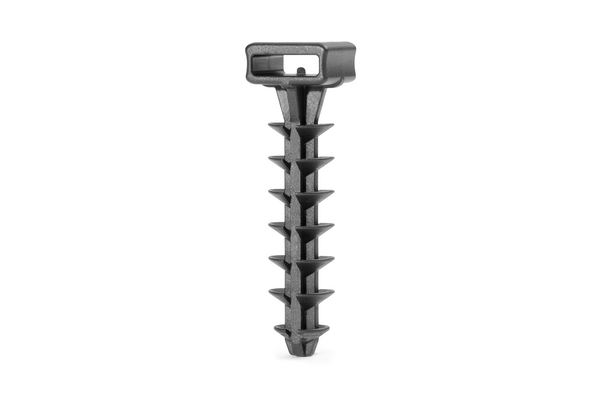

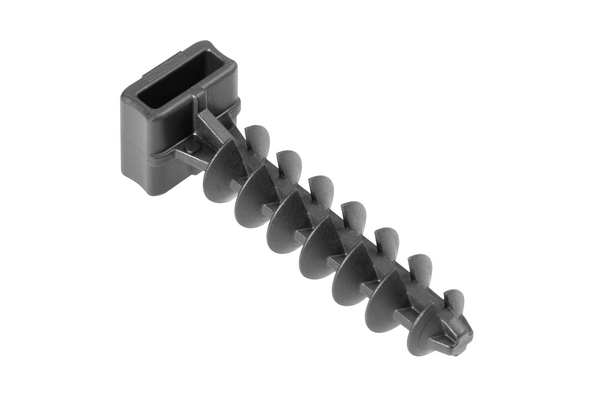

Cable tie mount for hole (round), Wmax=9.0mm, ⌀7.0 - 8.0 mm, black, 100pcs.
Art.-No. 151-80110
| LOK01-PA66W-BK
|
Copied

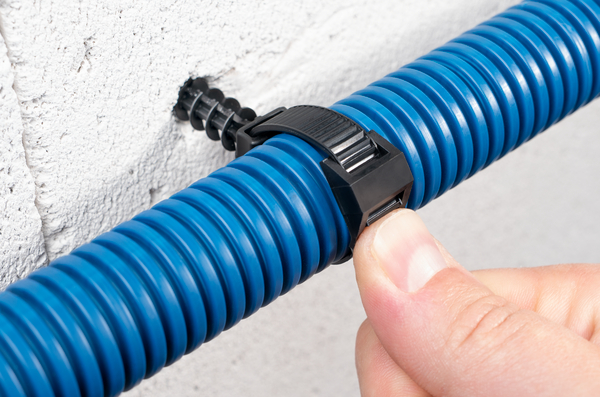

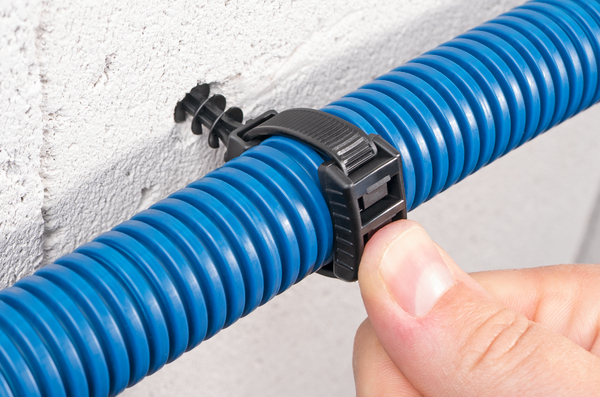

- Quick and easy installation, without tools or a hammer
- Easy manual insertion thanks to the curved tabs in 7 or 8 mm diameter holes
- Compatible with 9 mm wide installation clamps (SPH type)
- Clamp retention system to prevent slipping
- Excellent pull-out resistance

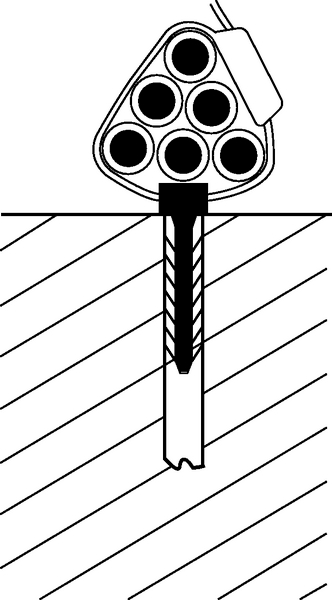

- Suitable for solid materials (concrete, brick, cinder blocks)
- Suitable for indoor and outdoor use (UV-resistant)
- Made from recycled polyamide
- Halogen-free
Show more
Show less
Request quote
More products in this product group:
This product is part of:

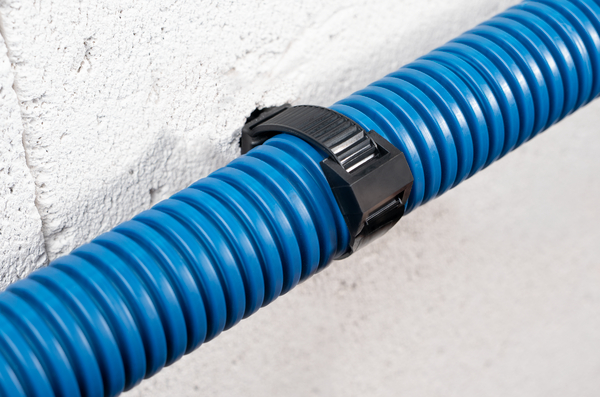

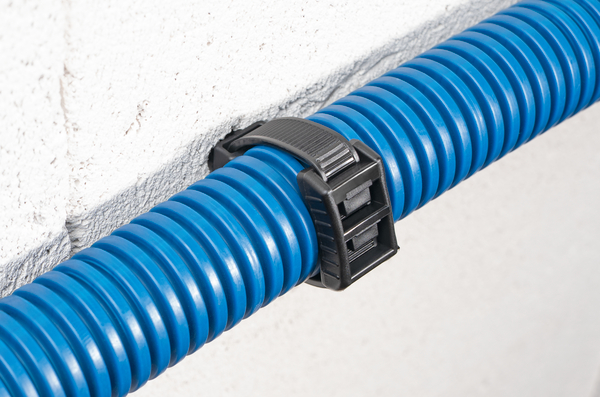

| Application | The LOK01+ wall plugs are characterised by their great versatility. They are designed for use both indoors and outdoors. When used with a 9 mm cable tie (SPH), these plugs allow any type of cable to be fixed and secured. Furthermore, they are suitable for use with various types of solid materials (concrete, brick, cinder block), making them easy to use in any environment. |
| Colour | Black (BK) |

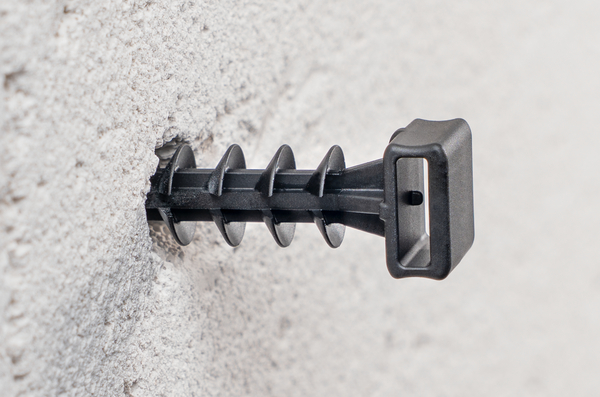

| Description | The LOK01+ wall plugs offer a simple, quick and reliable fixing solution when used in combination with 9 mm-wide installation cable ties such as the SPH. Thanks to their innovative design featuring curved ribs, they can be easily inserted by hand, without tools, into standard solid materials such as concrete, brick or cinder blocks. This quick installation saves a significant amount of time and ensure excellent pull-out resistance. Made from recycled polyamide and UV-resistant, LOK01+ wall plugs are suitable for both indoor and outdoor applications, guaranteeing durability and reliability in a variety of environments. |
| Fixation Method | with Fir Tree (Mounts) |
| For Ties | SPH |
| Key product features | for faster processing |
| Local order number | LOK01.NB3P |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| PART DESCRIPTION | LOK01-PA66W-BK |
| Package Content | 100pcs. |
| Package Content packed in | Bag |
| Product Family | LOK-Series |
| Product Group | Fixing base |
| Releasable Closure (Yes/No) | No |
| Short Description | Wall-plug for round hole ⌀8 mm in PA66W black - LOK01+ |
| Type | LOK01 |
| UV-Stabilised | Yes |
| Weight/Unit | 0.00135kg |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +80 °C |
| PEP File Link (FR) | Link |
| PFAS-free | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | No |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions. |
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660019517 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.15m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00297m³ |
| Packaging 1 - Weight (kg) | 0.200001kg |
| Packaging 1 - Width (m) | 0.33m |
| Packaging 3 - Height (m) | 0.25m |
| Packaging 3 - Length (m) | 0.6m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.06m³ |
| Packaging 3 - Weight (kg) | 10.75005kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 193.0kg |
| Packaging 4 - Width (m) | 0.8m |
