Arrowhead Cradle : SFC3
Arrowhead cradle 15.5x22 mm, blackArticle number: 151-01906
Features
- Usable with cable ties up to 8.6mm wide
- Ideal for space-saving applications with restricted access
- Arrowhead with disc for very secure fixing
Certifications & Approvals
Application

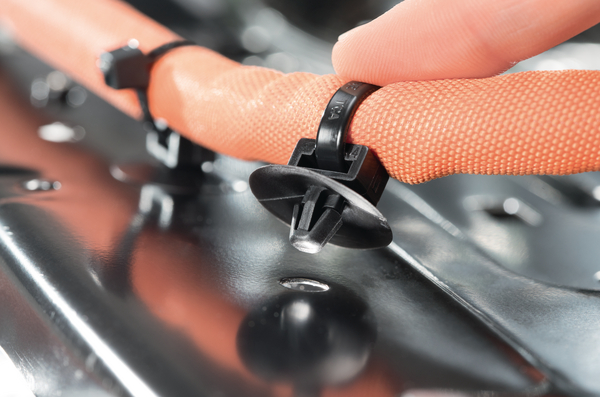

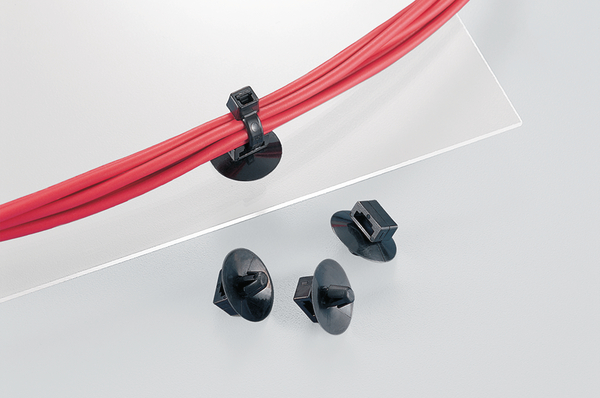

Offering simple and easy methods of securing cables or pipes, these fixing accessories have many applications within a wide range of industries.
More products in this product group
Arrowhead Cradle >| Anti rotation (Yes / No) | NO |
| Colour | Black (BK) |
| Fixation Method | with Arrowhead / Push Mount (Mounts) |
| Fixing Hole Shape | Circular |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | SFC3-PA66-BK |
| Product Family | SFC |
| Product Group | Arrowhead Cradle |
| Short Description | Arrowhead cradle 15.5x22 mm, black |
| Type | SFC3.NB3P |

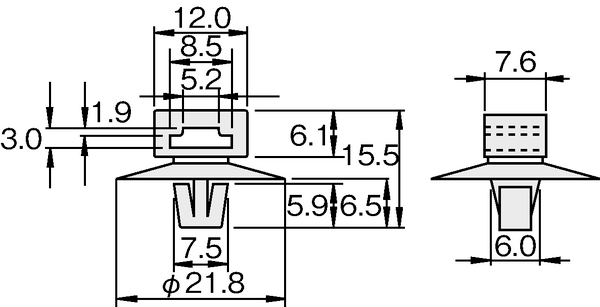

| Disc ∅ | 22.0mm |
| for Hole ∅ (FH) | 6.3 mm |
| for Panel Thickness min - max | 0.8 - 1.8 mm |
| Height (H) | 8.8mm |
| Length (L) | 15.5mm |
| Strap Width max. (G) | 8.6mm |
| Width (W) | 22.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660159916 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.305m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00124m³ |
| Packaging 1 - Weight (kg) | 0.09kg |
| Packaging 1 - Width (m) | 0.203m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 8000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 8.002kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 160000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 181.04kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.09kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
