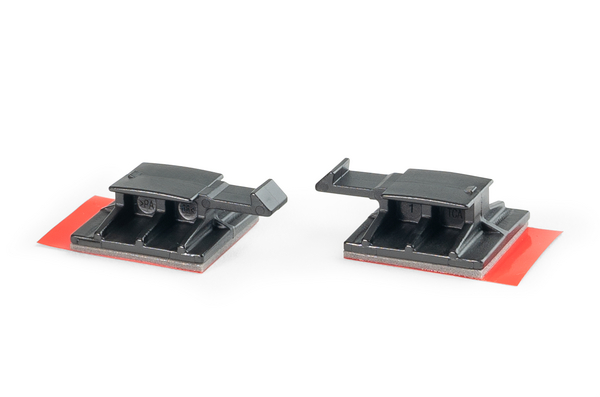

Connector clip, black, 100pcs.
Art.-No. 151-01680
| YCCMB3APT-A-PA66HIRHS-BK
|
Copied
- MB mounts with homogeneous system of acrylic adhesive with connector holder
- Very good initial adhesion, increases with time
- Innovative fixing solution for high and low energy surfaces
- Protection foil with finger lift for easy peel off
Request your individual offer now
Request quote
More products in this product group:
| Application | SolidTack MB Series mounts have a square design and are fairly common in areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery. The premium self-adhesive bonds well on high and low-energy surfaces like plastics, metal, varnish or paint and is suitable for a wide range of applications. |
| Colour | Black (BK) |
| Local order number | YCCMB3APT-I_PA66HIRHS_BK |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | YCCMB3APT-A-PA66HIRHS-BK |

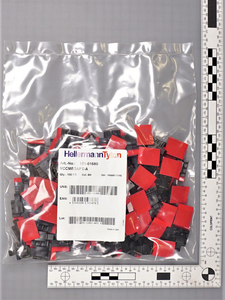

| Package Content | 100pcs. |
| Package Content packed in | Bag |
| Product Family | with adhesive mount |
| Product Group | Connector clips |
| Short Description | Plug holder with special adhesive 19x19 black |
| Type | YCCMB3APT-A |
| Type of connection | USCAR11 |
| Weight/Unit | 0.001395kg |
Download
| Adhesive | Acrylate with base of acrylic foam |
| Adhesive Operating Temperature | -40 °C to +90 °C |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +90 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026568676 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.25m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0011m³ |
| Packaging 1 - Weight (kg) | 0.14848kg |
| Packaging 1 - Width (m) | 0.22m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 15.668kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 209.04kg |
| Packaging 4 - Width (m) | 0.8m |
