FML B Length Closure with Hellapon Trays, Article number: 857-00678


  • Maximum 576 fibre splice capacity when using SMF SE-B trays

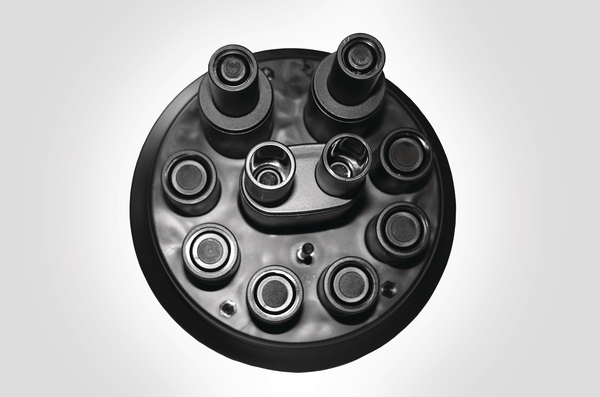

  • 12 round ports and 1 oval port
  • Pre-tubed to trays to allow for easy insertion of fibre
  • Accommodates Hellipse NZDF SE-B, SMF SE-B and Hellapon Medium trays
  • Maximum 24 splices per tray without double stacking (Hellipse SMF SE-B)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Colour Black (BK)
Content FML Base

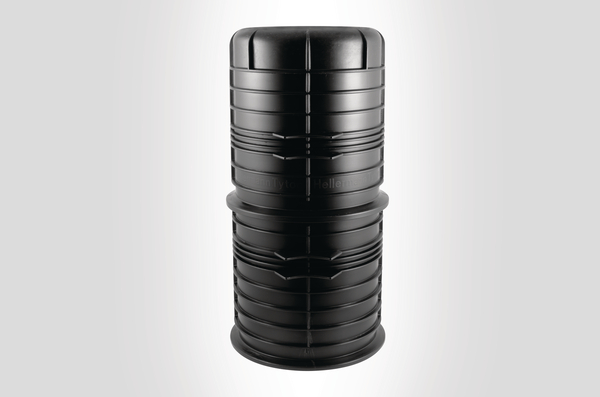

B-Length Cover (Dome)

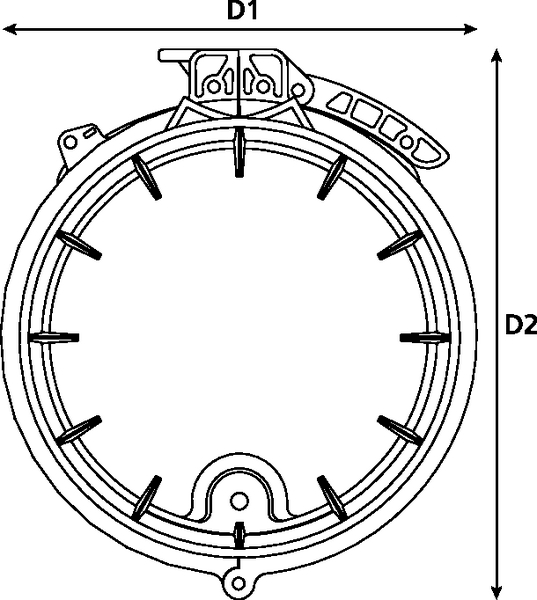

Quick Release Clamp
Sealing ’O’ Ring
Fibre Storage Basket (Hellapon Medium Tray option only)

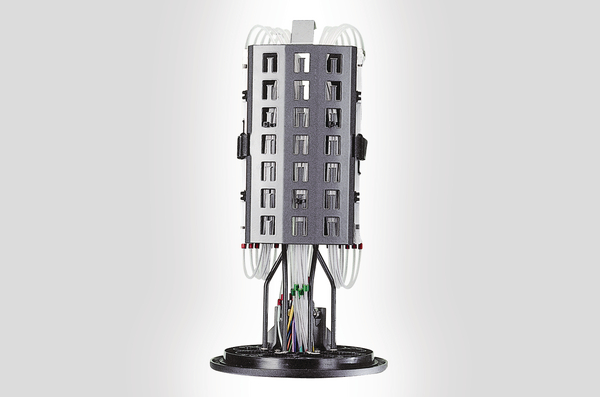

Mounting Posts and Brackets
Anchor Fixing Kit(1)
Tray Tool
Hook and Loop Tray Securing Strap
Transportation Tubing
Tubefix – Tubing to Tray Securing Blocks
Hook and Loop Management Ties
Marker Kit (NZDF SE-B/SMF SE-B)
Red Marker 1 - 48
Green Marker 1 – 48
Marker Kit (Hellapon Medium)
Red Marker 1 - 25
Green Marker 1 – 25
Isopropyl Alcohol Wipes
Installation Guide
Cover Type B
Method of Sealing Cablelok, Heatshrink
Package Quantity per kit

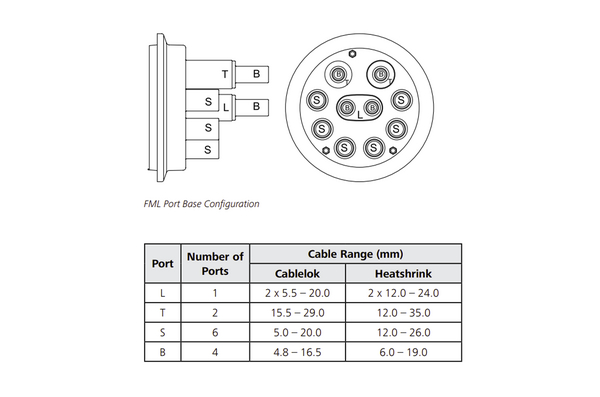

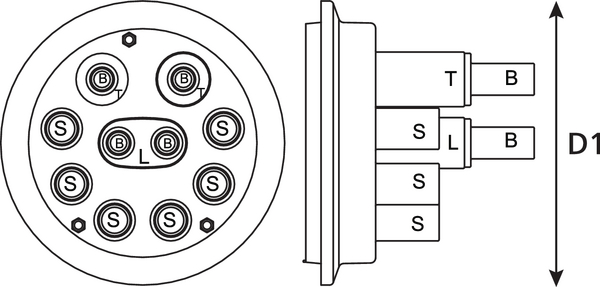

Port L, T, S, B
Port count 1, 2, 6, 4
Product Family FML B Length Closure with Hellapon Trays
Product Group FML Tubed Closure
Qty Trays 12

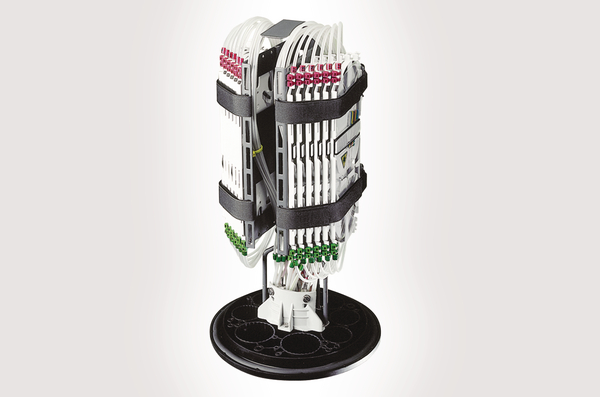

Technical Description The FML B length closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from 304 grade stainless steel and there is a separate mounting system for each tray type. The mounting systems for each tray type can accommodate a maximum of 24 Hellipse NZDF SE-B, SMF SE-B or 12 Hellapon Medium trays giving a maximum of 288 fibre splices based on 12 splice per tray. The Hellapon Medium closure is supplied with a fibre storage basket which provides storage space for the storage of fibre loops. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre into the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and into the trays.
Type of Tray Hellapon Medium
D1 220mm

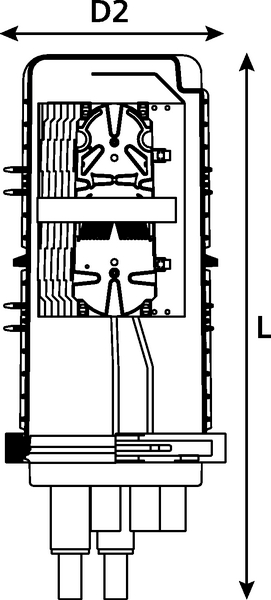

D2 275mm
Length 598mm
EAN / GTIN 5022660112904
ETIM 6.0 EC001124
ETIM 7.0 Key EC001124
