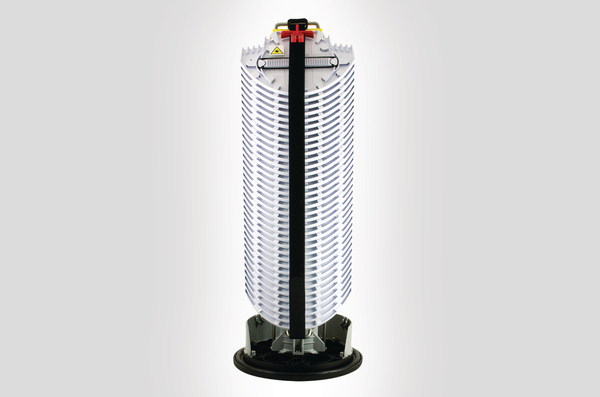

FML Tubed Closure : FMLTB-CXXCE61

C Length, Article number: 857-00682

Features

  • Maximum 864 fibre splice capacity when using SMF SE-B tray
  • 12 round ports and 1 oval port
  • Pre-tubed to trays to allow for easy insertion of fibre
  • Accommodates Hellipse NZDF SE-B, SMF-SE-B and Hellamass large trays
  • Maximum 144 splices per tray (Hellamass Large)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Colour Black (BK)
Content FML Base Anchor Plates/Bracket C-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Tray Support Frame Anchor Fixing Kit (3) Tray Tool Hook and Loop Tray Securing Straps Transportation Tubing Tubefix – Tubing to Tray Securing Blocks Hook and Loop Management Ties Marker Kit (NZDF SE-B/SMF SE-B) Red Marker 1 - 48 Green Marker 1 – 48 Marker Kit (Hellamass Large) Red Marker 1 - 25 Green Marker 1 – 25 Isopropyl Alcohol Wipes Desiccant Installation Guide

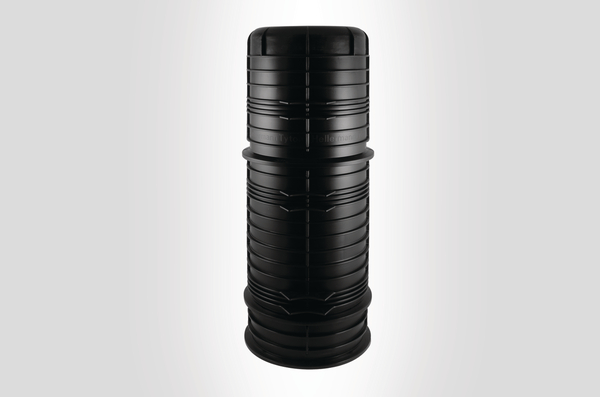

Cover Type C
Method of Sealing Cablelok, Heatshrink
Package Quantity per kit
PART DESCRIPTION FMLTB-CXXCE61
Port L, T, S, B
Port count 1, 2, 6, 4
Product Family C Length
Product Group FML Tubed Closure
Qty Trays 36

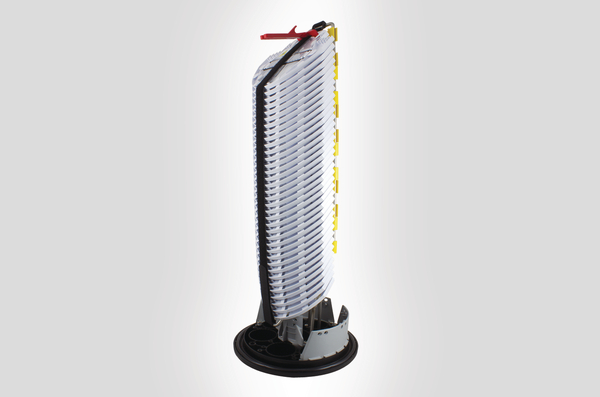

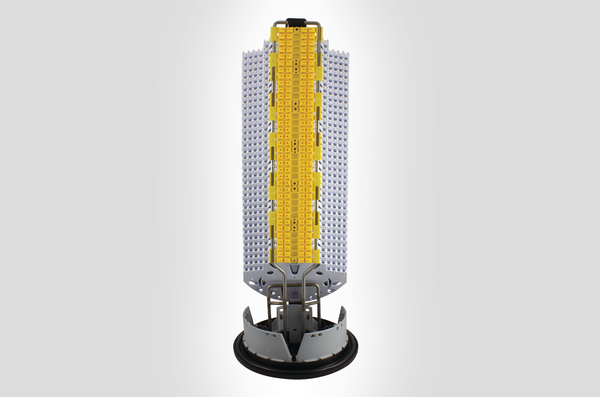

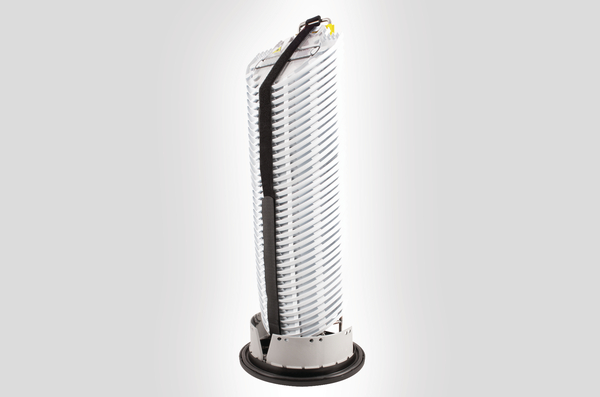

Technical Description The FML C Length closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and there is a separate mounting system for each tray type. The mounting systems for each tray type can accommodate a maximum of 36 Hellipse NZDF SE-B, SMF SE-B or 2 Hellamass Large trays giving a maximum of 864 fibre splices based on 24 splices per tray (when using Hellipse SMF SE-B trays). The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellipse NZDF SE-B

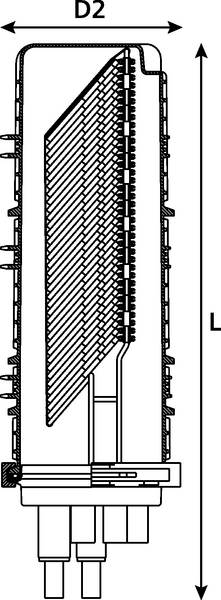

D1 220mm
D2 275mm
Length 748mm
EAN / GTIN 5022660112942
ETIM 6.0 EC001124
ETIM 7.0 Key EC001124
