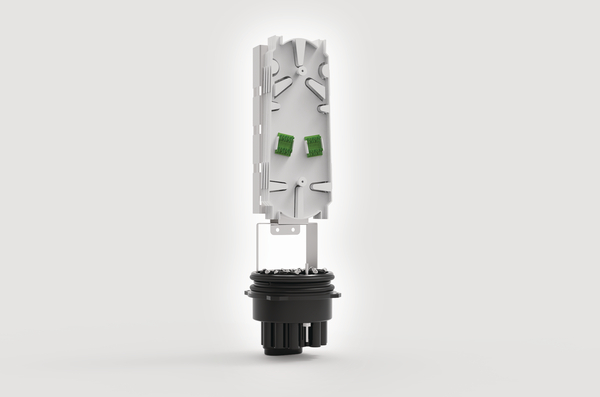

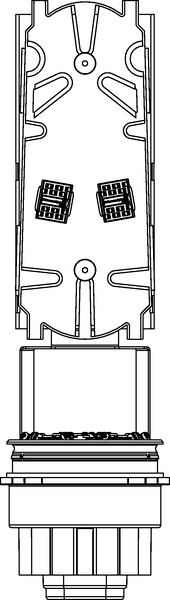

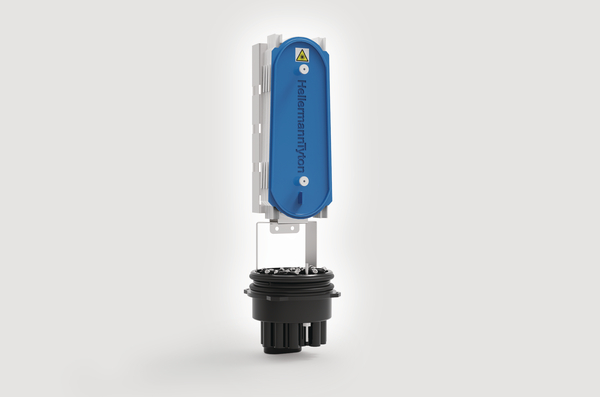

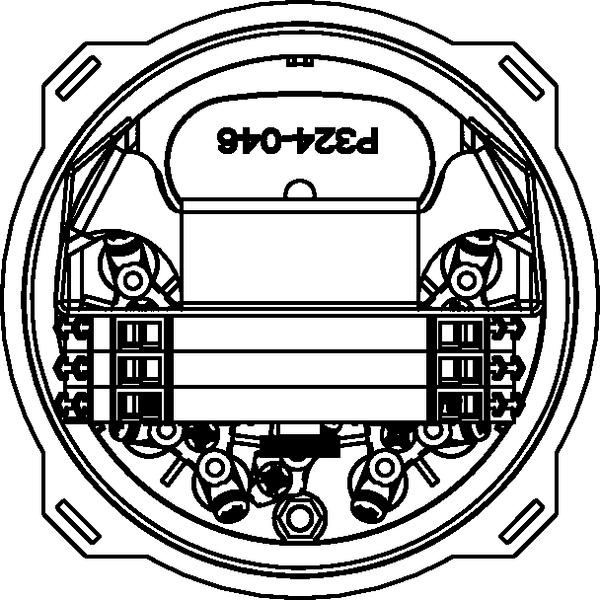

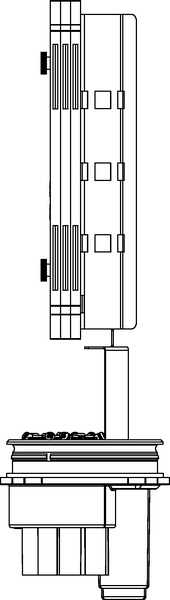

FRBU 16 port B length closure with 3 x Hellapon medium stacked trays
Art.-No. 857-02061
| FRBTB-BXBSB31
|
Copied
- Maximum 36 fibre splice capacity
- 16 round ports and 1 oval port
- Fibre storage basket for loop through applications
- 3 x Hellapon Medium stacked trays
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Content |
FRBU 16 Port Base B-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring 3 x Hellapon Medium Stacked Trays Tray Support Frame Anchor Fixing Kit (6) Transportation Tubing Hook and Loop Management Ties Cable Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12 |
| Cover Type | B |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | FRBTB-BXBSB31 |
| Package Content packed in | Box |
| Port | LM, R |
| Port count | 1, 16 |
| Product Family | B Length |
| Product Group | FRBU 16 Port Closure |
| Qty Trays | 3 |
| Short Description | FRBU 16 port B length closure with 3 x Hellapon medium stacked trays |
| Splice Capacity | 36 |
| Technical Description |
The FRBU 16 Port B Length closure is supplied with a Polypropylene base. The base configuration of 16 round ports and 1 oval port which accommodate covers a cable diameter range of 1.7 – 9.5mm (R Ports) and 4.0 – 15.0mm (LM port) when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 3 x Hellapon Medium Stacked Trays giving a maximum of 36 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. |
| Type | FRBTB-BXBSB31 |
| Type of Tray | Hellapon Medium |
| Variant | Outdoor Enclosure |
