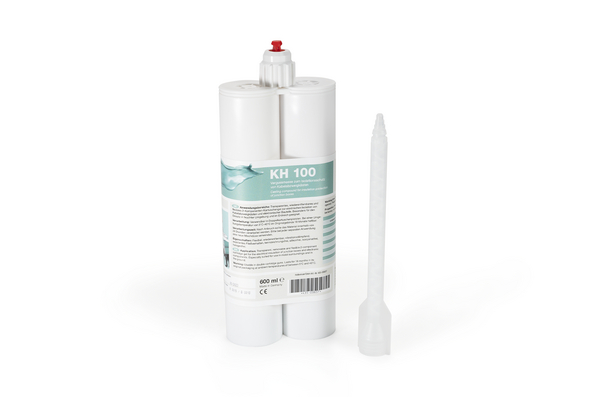

Gel, Polybutadiene (PBD) transparent/orange, 600ml
Art.-No. 435-00837 | Gel-100 600 ml-PBD-CL/OG Details

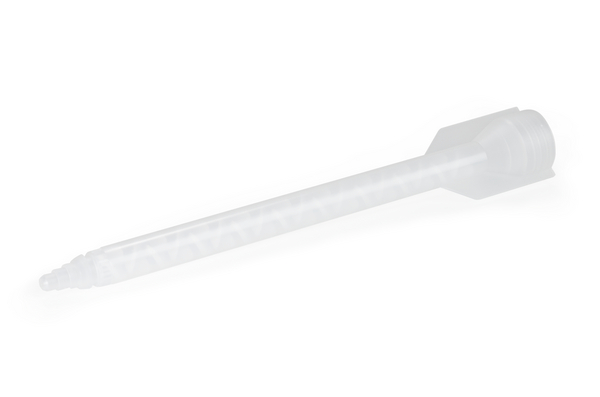

  • Cartridge with mixing nozzle for use with standard cartridge applicator gun
  • Excellent flow properties
  • Soft elastic, vibration absorbing, removable
  • Outstanding insulating properties
  • Cures without developing heat
  • Saltwater resistant
  • Non-toxic, free of silicone and isocyanate
  • SVHC-free, contains no hazardous substances, the cured product can be disposed of with house hold waste
  • Halogen free
Show more

Request your individual offer now

Application RELICON KH 100 is a transparent, removable, saltwater resistant, flexible two-component gel based on hydrocarbon resins in trade standard cartridges. It is especially suitable for use with junction boxes in the low-voltage range, located in a humid area or in the ground. After curing, RELICON KH 100 is characterised by its excellent resistance to moisture and very good insulating properties as well as good chemical resistance. Application: Electrical insulation and moisture protection for the low-voltage networks. Particularly suitable for filling of cable junction boxes.
Application Tool PTS4, ASS103, RCS0425
Colour Transparent (CL), Orange (OG)
Density 0.95 g/cm³, 20 °C (DIN EN ISO 2811-2)
Key product features vibration absorbing
Material Polybutadiene (PBD)
Pack Cont. 600ml
Package Content packed in Bag
PART DESCRIPTION Gel-100 600 ml-PBD-CL/OG
Pot Life 40 min. 23°C
Product Family RELICON KH 100
Product Group Two-component gel
Removable Yes
Short Description Two-component gel 600 ml
Viscosity 2000 mPa*s, 5 °C (EN ISO 2555), 1500 mPa*s, 23 °C (EN ISO 2555)
Weight/Unit 0.732kg
Dielectric Strength 20kV/mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +90 °C
Shelf Life 18 months
Specifications
Thermal Conductivity (max.) 0.25W/mK
Thermal Conductivity (min.) 0.20W/mK
Vibrations absorbing Yes
Country of Origin DE
Customs Number 39119099
GTIN-13 / EAN 4031026631264
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00319
Packaging 1 - Weight (kg) 0.732001kg
Packaging 1 - Width (m) 0.345m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 12
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0278
Packaging 3 - Weight (kg) 9.284kg
Packaging 3 - Width (m) 0.34m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 360
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 299.52kg
Packaging 4 - Width (m) 0.8m
Spray content 890g
Storage Temperature +4 °C to +40 °C
ETIM 7.0 Key EC001168
ETIM 8.0 Key EC001168
ETIM 9.0 Key EC001168
