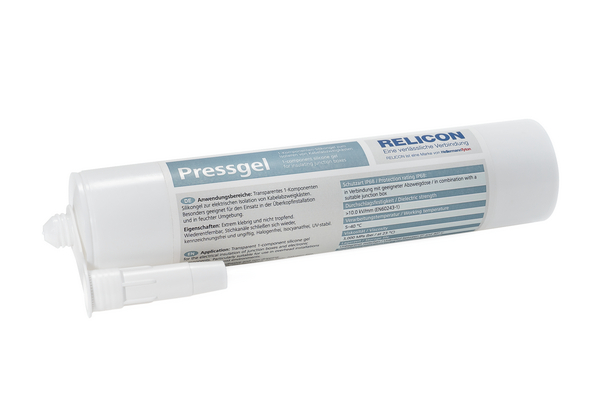

Gel, Silicone (SI) transparent, 310ml
Art.-No. 435-00838 | Pressgel-SI-CL Details

  • Ready-to-use, transparent silicone gel in cartridge
  • Extremely sticky and not dripping
  • Keeps insects away from electrical instaltions
  • IP 68 in combination with appropriate junction box

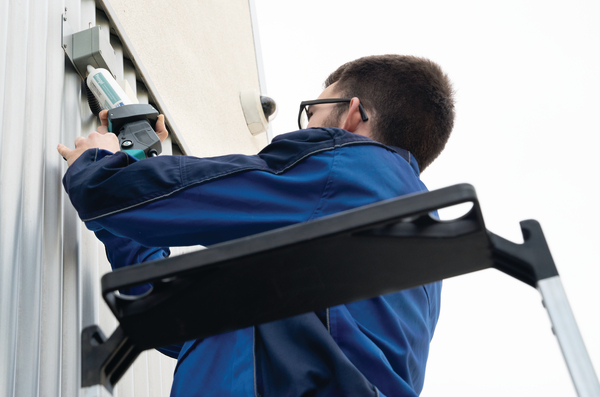

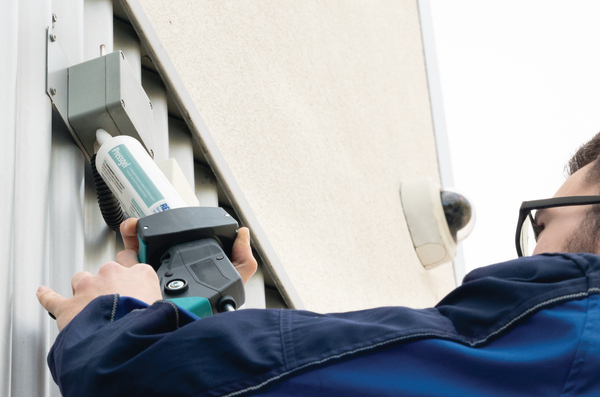

  • Very strong adhesion makes it suitable for overhead installation
  • Stitch channel closes again, the gel is self-healing
  • Recoverable and removable
  • Resealable cartridge allows multiple use
  • Label-free and non-toxic
  • Halogen free
  • Isocyanate free
Show more

Request your individual offer now

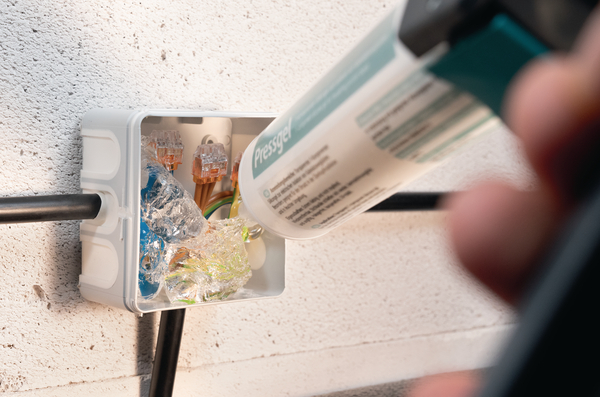

Application Transparent 1-component silicone gel for the electrical insulation of junction boxes and electronic components. Particularly suitable for use in overhead installations and in damp or humid enviroments.For electrical installation up to 1 kV.
Colour Transparent (CL)
Key product features vibration absorbing
Material Silicone (SI)
PART DESCRIPTION Pressgel-SI-CL
Pack Cont. 310ml
Package Content packed in Dispenser
Product Family Relicon 1-component sillicone gel
Product Group 1-component sillicone gel
Removable Yes
Short Description 1-component sillicone gel
Type Pressgel
Variant Gel
Viscosity 3000 mPa*s, 23 °C (EN ISO 2555)
Flexibility extremely flexible
Weight/Unit 0.34kg
CAS Number 541-02-6, 540-97-6
Critical Substance Decamethyl. D5 0,12,5 %, Dodecamethyl. D6 0,12,5 %
Dielectric Strength 20kV/mm
EC Number 208-764-9, 208-762-8
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -60 °C to +200 °C
ROHS compliant Yes
Shelf Life Unlimited
Specifications
Thermal Conductivity (max.) 0.20W/mK
Thermal Conductivity (min.) 0.17W/mK
Vibrations absorbing Yes
Country of Origin IT
Customs Number 39100000
GTIN-13 / EAN 4031026638744
Packaging 1 - Height (m) 0.23m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00254
Packaging 1 - Weight (kg) 0.34kg
Packaging 1 - Width (m) 0.048m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.3m
Packaging 3 - Qty 24
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0158
Packaging 3 - Weight (kg) 8.66kg
Packaging 3 - Width (m) 0.21m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1152
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 436.68kg
Packaging 4 - Width (m) 0.8m
Spray content 350g
Storage Temperature +5 °C to +40 °C
ETIM 7.0 Key EC001168
ETIM 8.0 Key EC001168
ETIM 9.0 Key EC001168
