Straight-through gel cable joints without connectors : Relifix 410
Gel cable joint 3x1,5 - 4x10, 3x1,5 - 4x2,5Article number: 435-00652
Features

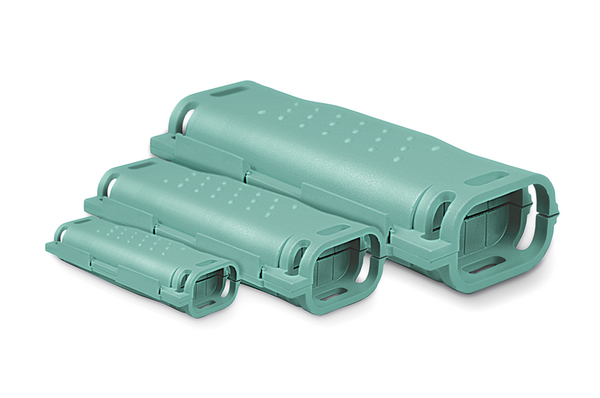

- Moulding shell: One piece, coloured, re-openable, impact-proof, flame retardant
- Filled with Relicon non-toxic gel, high dielectric strength
- No mixing, easy to install
- UV, ageing and weather resistant
- Unlimited shelf life
- Up to max. 4 cores
- Tested according to EN 50393 (corresponds to DIN VDE 0278-393)
- IPX8 tested
Certifications & Approvals
Application
RELICON Relifix gel technology offers several advantages. It is quick and easy to install. The moulding shells are provided with a film hinge and are made from thick-walled, tough and impact resistant polypropylene (PP). The Relicon gel in the shells insulates and seals the complete connection as the joint is closed. Depending on the connector type, Relifix can be used as a universal straight-through or branch joint. It is suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc.
Application: In low-voltage electrical networks as straight-through and/or branch joint, e.g. underground, submerged, outdoor, indoor and wiring ducts.
More products in this product group
Straight-through gel cable joints without connectors >| Application Tool | PTS4, ASS103, RCS0425 |
| Colour | Green (GN) |
| Content |

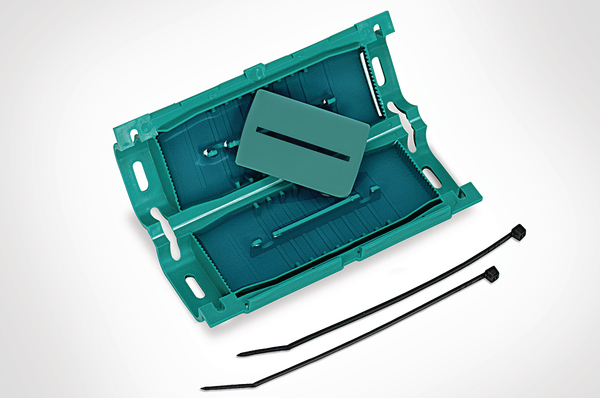

Moulding shells filled with RELICON gel Installation instructions Separator plate Cable ties |
| No. of Wires | 4 |
| Pack Cont. | 1Set |
| Package Quantity per | Box |
| PART DESCRIPTION | Relifix 410-PP/SI-GN |
| Product Family | RELICON Relifix 410 |
| Product Group | Straight-through gel cable joints without connectors |
| Short Description | Gel cable joint 3x1,5 - 4x10, 3x1,5 - 4x2,5 |
| Variant | Gel |
|
|
|
| Cable Diameter Branch Cable | 9-16mm |
| Cable Diameter Main Cable | 9-20mm |
| Conductor Cross Section Branch Cable (max.) | 4 x 2.5mm² |
| Conductor Cross Section Branch Cable (min.) | 3 x 1.5mm² |
| Conductor Cross Section Main Cable (max.) | 4 x 10mm² |
| Conductor Cross Section Main Cable (min.) | 3 x 1.5mm² |
| Connector | none |

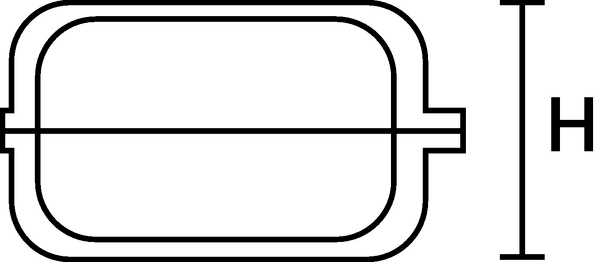

| Height (H) | 35mm |

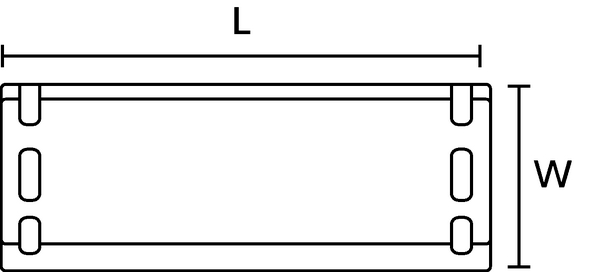

| Length (L) | 146mm |
| Width (W) | 55mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Polypropylene (PP), Silicone (SI) |
| Operating Temperature - °C | -20 °C to +90 °C |
| Shelf Life | Unlimited |
| Specifications |
|
| Specifications | EN 50393:2006 |
| GTIN-13 / EAN | 4250596414309 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.163m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Pack |
| Packaging 1 - Volume (m³) | 0.00048m³ |
| Packaging 1 - Weight (kg) | 0.205kg |
| Packaging 1 - Width (m) | 0.065m |
| ETIM 6.0 | EC001170 |
| ETIM 7.0 Key | EC001170 |
