Straight-through gel cable joints with connectors : Relifix V31.5

Gel cable joint 3x0,5 - 3x2,5, Article number: 435-00650

Features

  • Moulding shell: One piece, coloured, re-openable, impact-proof, flame retardant
  • Filled with Relicon non-toxic gel, high dielectric strength
  • No mixing, easy to install
  • UV, ageing and weather resistant
  • Unlimited shelf life
  • With connector, ready for assemble
  • Tested according to EN 50393 (corresponds to DIN VDE 0278-393)
  • IPX8 tested

Certifications & Approvals

Application

RELICON Relifix gel technology offers several advantages. It is quick and easy to install. The moulding shells are provided with a film hinge and are made from thick-walled, tough and impact resistant polypropylene (PP). The Relicon gel in the shells insulates and seals the complete connection as the joint is closed. Depending on the connector type, Relifix can be used as a universal straight-through or branch joint. It is suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc.
Application: In low-voltage electrical networks as straight-through and/or branch joint, e.g. underground, submerged, outdoor, indoor and wiring ducts.

RELICON Relifix V 31,15 is suitable for following markets and industries

Application Tool PTS4, ASS103, RCS0425
Colour Green (GN)

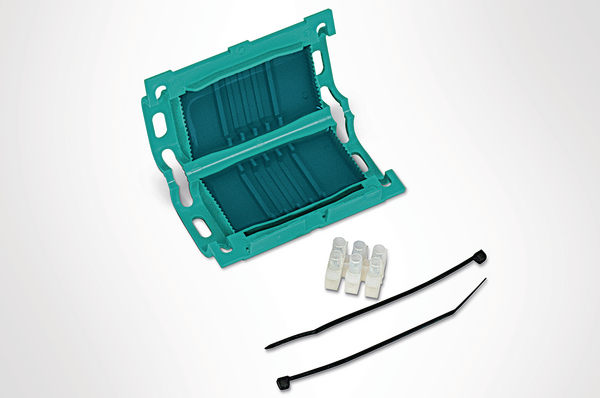

Content Moulding shells filled with RELICON gel
Installation instructions
Connector
Cable ties
Allen key (not for type V31.5)
No. of Wires 3
Pack Cont. 1Set
Package Quantity per Box
PART DESCRIPTION Relifix V31.5-PP/SI-GN
Product Family RELICON Relifix V 31,15
Product Group Straight-through gel cable joints with connectors
Short Description Gel cable joint 3x0,5 - 3x2,5
Variant Gel
Cable Diameter Main Cable 9-16mm
Conductor Cross Section Main Cable (max.) 3 x 2.5mm²
Conductor Cross Section Main Cable (min.) 3 x 0.5mm²

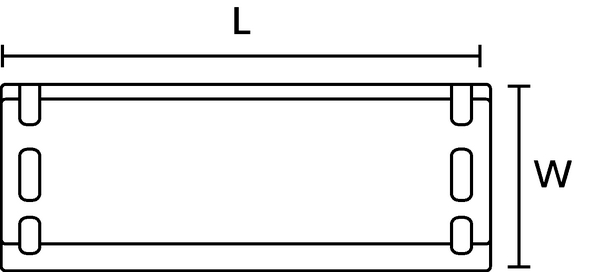

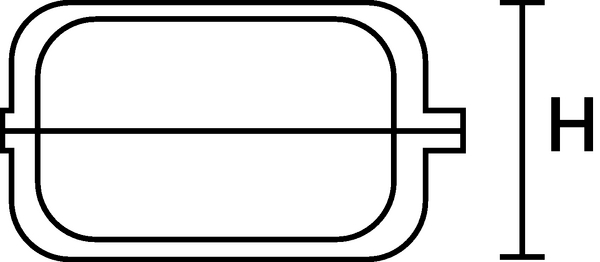

Height (H) 27mm
Length (L) 86mm
Width (W) 47mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polypropylene (PP), Silicone (SI)
Operating Temperature - °C -20 °C to +90 °C
Shelf Life Unlimited
Specifications
Specifications EN 50393:2006
EAN / GTIN 4250596414200
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.105m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.0002
Packaging 1 - Weight (kg) 0.083kg
Packaging 1 - Width (m) 0.055m
Packaging 3 - Height (m) 0.38m
Packaging 3 - Length (m) 0.42m
Packaging 3 - Qty 200
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0614
Packaging 3 - Weight (kg) 17.1kg
Packaging 3 - Width (m) 0.385m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2400
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 226.2kg
Packaging 4 - Width (m) 0.8m
Weight 0.083kg
ETIM 6.0 EC001170
ETIM 7.0 Key EC001170
