RELICON Religel Clear : Religel Clear 500

RELICON Religel Clear, Article number: 435-00757


  • Optimal visual control through transparent material
  • Crystal clear gel after curing, excellent insulating properties, suitable for LED applications
  • Multiple use possible, mixing ratio 1:1
  • Excellent flow and insulating properties
  • Excellent moisture and chemical resistance
  • Soft elastic, vibration absorbing and removable residue-free

Certifications & Approvals

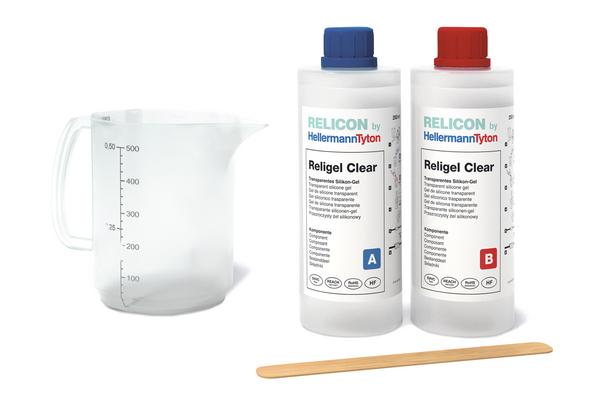

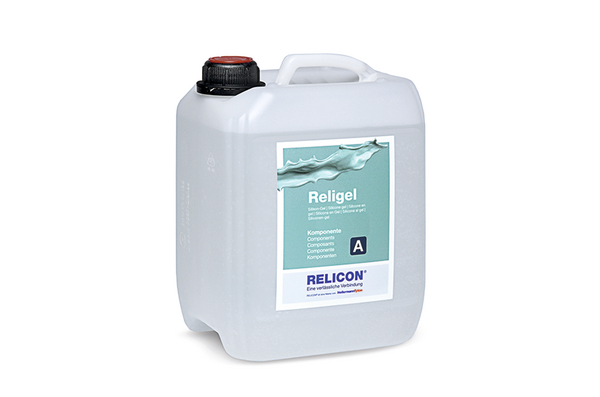

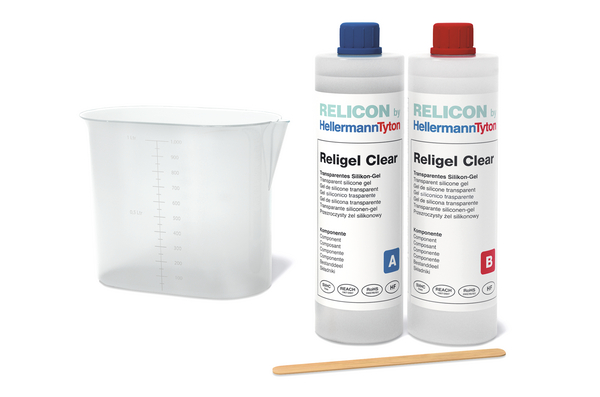

RELICON Religel Clear is a transparent, soft elastic two-component silicone gel. It is packed in practical bottles or canisters including measuring cup and mixing stick.

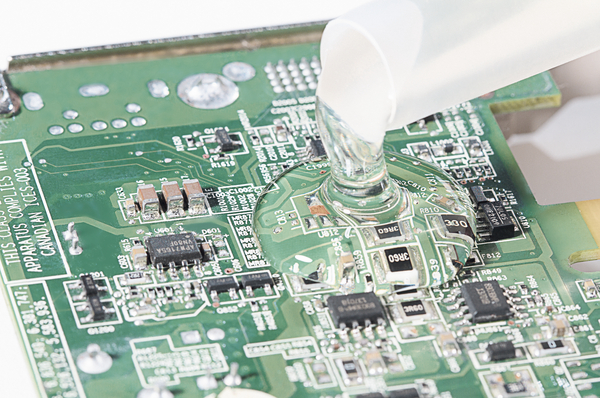

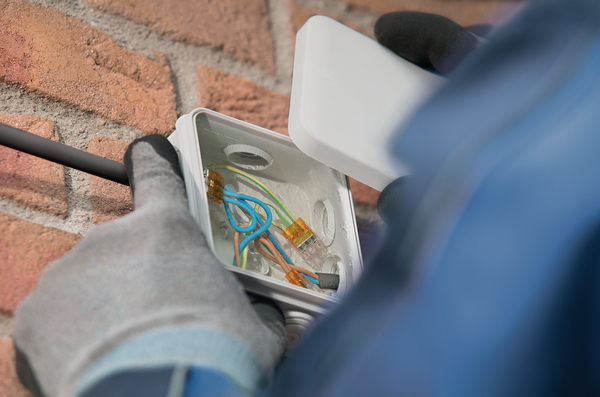

LED potting technology, Encapsulation of printed circuit boards, Installation of electrical connections, Belowground or submerged, Model-making and hobby applications

Religel Clear is suitable for following markets and industries

Application Tool PTS4, ASS103, RCS0425
Colour Transparent (CL)
Density 0.97 g/cm³, 20 °C (DIN EN ISO 2811-2)
Features and Benefits Optimal visual control through transparent material, Soft elastic, vibration absorbing and removable residue-free
Pack Cont. 500ml
Package Quantity per Bottle
Pot Life 10 min. 23 °C
Product Family Religel Clear
Product Group RELICON Religel Clear
Short Description RELICON Religel Clear
Viscosity 1000 mPa*s, 23 °C (EN ISO 2555)
CE Certification Yes
Dielectric Strength >25 kV/mm
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Material Silicone (SI)
Operating Temperature - °C -60 °C to +200 °C
Shelf Life Unlimited
Vibrations absorbing Yes
EAN / GTIN 4031026603254
Packaging 1 - Height (m) 0.177m
Packaging 1 - Length (m) 0.162m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00281
Packaging 1 - Weight (kg) 0.706kg
Packaging 1 - Width (m) 0.098m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 204
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 196.945kg
Packaging 4 - Width (m) 0.8m
Spray content 485g
Storage Temperature +4 °C to +40 °C
Weight 0.706kg
ETIM 6.0 EC001170
ETIM 7.0 Key EC001168
