Straight-through and branch gel cable joints with connectors : Relilight V2.75I1

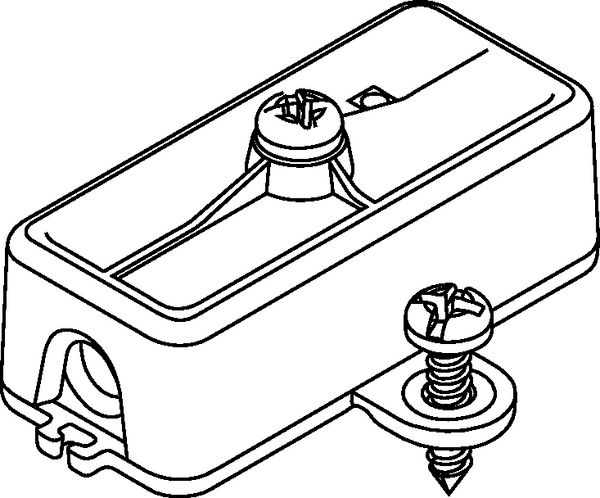

Gel cable joint 2x0,35 - 2x0,75, Article number: 435-01650

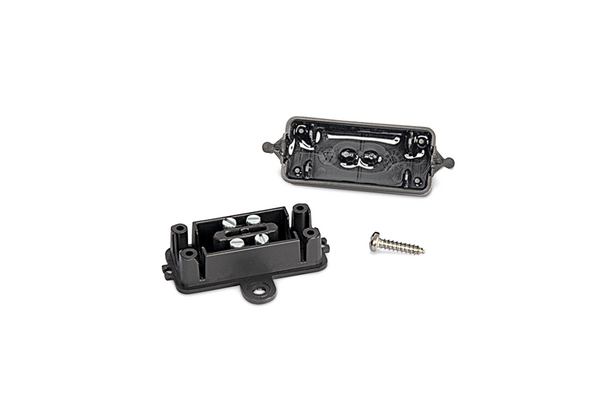

Features

  • Two- part, black moulding shells
  • Flame-retardant shell moulds according to UL94 V0
  • Safety class IP68
  • Voltage class 250V
  • Good insulating properties through the use of RELICON gel
  • Non-toxic gel
  • Reopenable
  • Easy to install
  • UV-resistant
  • Resistant to ageing
  • Weather-resistant
  • Temperature-resistant from -30°C to 130°C
  • Unlimited storage life
  • Certified according to DIN EN 60998-2-1:2004
  • Incl. connector block

Certifications & Approvals

Application

Relilight gel cable joints are designed for light installations, LED lighting as well. They are tested according to EN 60998-2-1: 2004 and offer IP68 protection class. The moulding shells are also flame retardant. Depending on the connector type, Relilight can be used either for straight-through or as branch joints. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc. The silicone based gel in the Relilight cable joints not only provides excellent insulation but also a simple, effortless installation.
Application: In low-voltage electrical networks as straight-through or branch joints, e.g. for outdoor light installations, like garden lightning, underground, submerged, outdoor, indoor and in wiring ducts.

RELICON Relilight V 2,75 I1 is suitable for following markets and industries

Colour Black (BK)
Content Gel shell filled with RELICON gel
Installation instruction
Connector block 2 x 0,35 mm² to 2 x 0,75 mm²
Screw
No. of Wires 2
Pack Cont. 1Bag
Package Quantity per Box
PART DESCRIPTION Relilight V2.75I1-PA66V0/SI-BK
Product Family RELICON Relilight V 2,75 I1
Product Group Straight-through and branch gel cable joints with connectors
Short Description Gel cable joint 2x0,35 - 2x0,75
Variant Gel
Voltage range 250V
Cable Diameter Main Cable 4.8-6mm
Conductor Cross Section Main Cable (max.) 2 x 0.75mm²
Conductor Cross Section Main Cable (min.) 2 x 0.35mm²
Connector Connector block

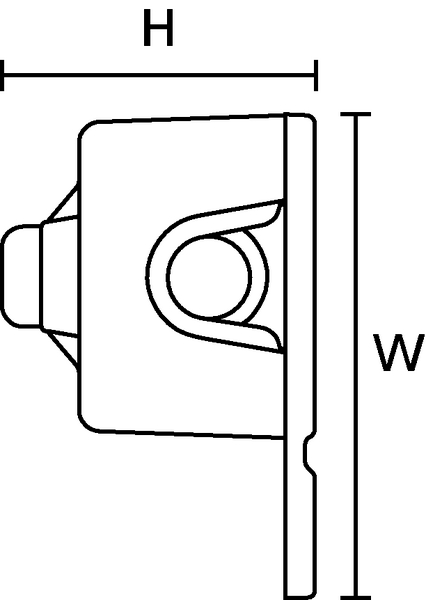

Height (H) 17.5mm

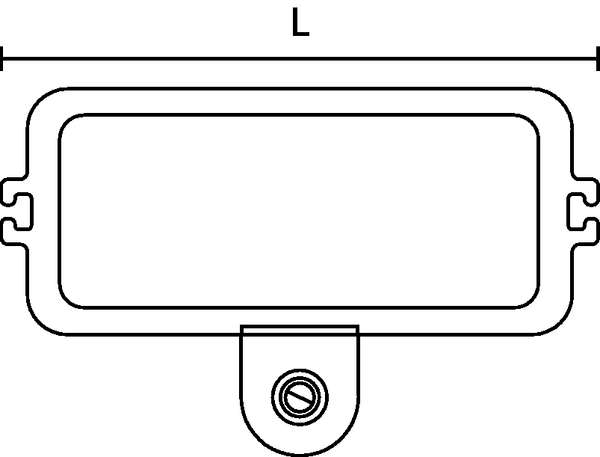

Length (L) 44mm
Width (W) 18mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6 V0 (PA66V0), Silicone (SI)
Operating Temperature - °C -30 °C to +130 °C
Shelf Life Unlimited
Specifications
Specifications EN 60998-2-1:2004
EAN / GTIN 4250596413777
Packaging 1 - Height (m) 0.027m
Packaging 1 - Length (m) 0.075m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00014
Packaging 1 - Weight (kg) 0.019kg
Packaging 1 - Width (m) 0.07m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 200
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 7.018kg
Packaging 3 - Width (m) 0.4m
Weight 0.019kg
ETIM 6.0 EC001169
ETIM 7.0 Key EC001170
