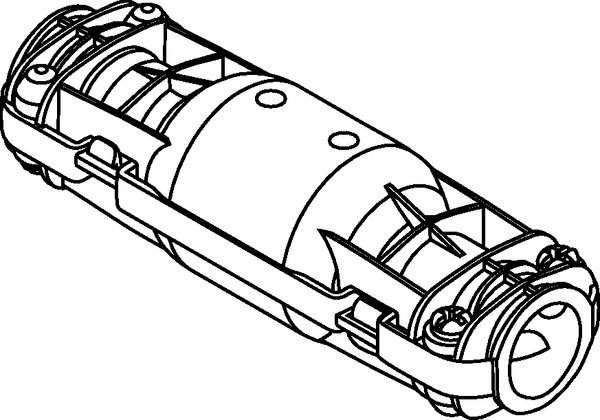

Gel cable joint, 6.5-12mm, 3 x 0.5mm² to 3 x 2.5mm², L=100mm, Polyamide 6.6 V0 (PA66V0)/Silicone (SI), black
Art.-No. 435-01651 | Relilight V32.5I2-PA66V0/SI-BK Details

  • Two- part, black moulding shells
  • Flame-retardant shell moulds according to UL94 V0
  • Safety class IP68
  • Strain relief integrated in the shell moulds
  • Voltage class 250V
  • Good insulating properties through the use of RELICON gel
  • Non-toxic gel
  • Reopenable
  • Easy to install
  • UV-resistant
  • Resistant to ageing
  • Weather-resistant
  • Temperature-resistant from -30°C to 130°C
  • Unlimited storage life
  • Certified according to DIN EN 60998-2-1:2004
  • Incl. connector block
Show more

Request your individual offer now

Application Relilight gel cable joints are designed for light installations, LED lighting as well. They are tested according to EN 60998-2-1: 2004 and offer IP68 protection class. The moulding shells are also flame retardant. Depending on the connector type, Relilight can be used either for straight-through or as branch joints. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc. The silicone based gel in the Relilight cable joints not only provides excellent insulation but also a simple, effortless installation. Application: In low-voltage electrical networks as straight-through or branch joints, e.g. for outdoor light installations, like garden lightning, underground, submerged, outdoor, indoor and in wiring ducts.
Application Tool PTS4, ASS103, RCS0425
Colour Black (BK)

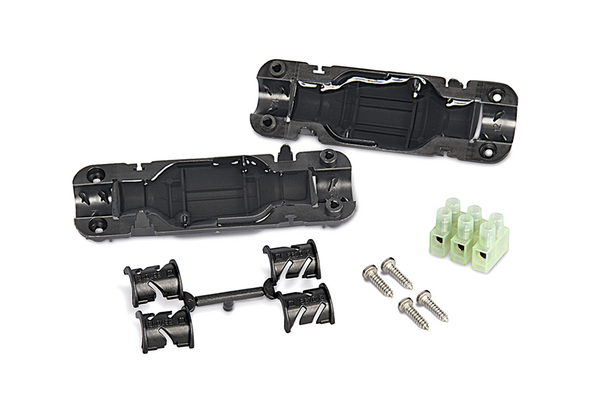

Content Gel shell filled with RELICON gel
Adapter for strain relief
Installation instruction
Connector block 3 x 0,5 mm² to 3 x 2,5 mm²
Screws
Material Polyamide 6.6 V0 (PA66V0), Silicone (SI)
No. of Wires 3
Pack Cont. 1Bag
Package Content packed in Box
PART DESCRIPTION Relilight V32.5I2-PA66V0/SI-BK
Product Family RELICON Relilight V 32,5 I2
Product Group Straight-through and branch gel cable joints with connectors
Short Description Gel cable joint 2x0,5 - 3x2,5
Variant Gel
Voltage range 250V
Cable Diameter Main Cable 6.5-12mm
Connector Screw Connector
Height (H) 29.0mm
Length (L) 100mm
Main Cabel max 3 x 2.5mm²
Main Cable min 3 x 0.5mm²
Weight/Unit 0.059kg
Width (W) 24.0mm
CE Certification No
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -30 °C to +130 °C
Self extinguishing Yes
Shelf Life Unlimited
Specifications
Specifications EN 60998-2-1:2004
Thermal Conductivity (max.) 0.17W/mK
Thermal Conductivity (min.) 0.17W/mK
Country of Origin IT
Customs Number 85369010
GTIN-13 / EAN 4250596413791
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00099
Packaging 1 - Weight (kg) 0.069kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.44m
Packaging 3 - Qty 100
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0407
Packaging 3 - Weight (kg) 7.4kg
Packaging 3 - Width (m) 0.37m
Packaging 4 - Height (m) 1.145m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.099
Packaging 4 - Weight (kg) 139.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001169
ETIM 8.0 Key EC001169
ETIM 9.0 Key EC001169
