Gel Cable Joint with Connector Relilight V32.5P1
RELICON Relilight V 32,5 P1, Article number: 435-01655
Features
- Two- part, black moulding shells
- Flame-retardant shell moulds according to UL94 V0
- Safety class IP68
- Strain relief integrated in the shell moulds
- Voltage class 250V, 16A
- Good insulating properties through the use of RELICON gel
- Non-toxic gel
- Reopenable
- Easy to install
- UV-resistant
- Resistant to ageing
- Weather-resistant
- Temperature-resistant from -30°C to 130°C
- Unlimited storage life
- Certified according to DIN EN 60998-2-1:2004
- Incl. connector block
Certifications & Approvals
Application
Relilight gel cable joints are designed for light installations, especially LED lighting. They are tested according to EN 60998-2-1: 2004 and offer IP68 protection class. The moulding shells are also flame retardant. Depending on the connector type, Relilight can be used either for straight-through or as branch joints. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc. The silicone-based RELICON gel in the Relilight cable joints provides insulation, sealing and mechanical protection in one step. Furthermore, they reduce the workload and total cost of installation.
Application: In low-voltage electrical networks as straight-through or branch joints, e.g. for outdoor light installations, underground, submerged, outdoor, indoor and in wiring ducts.
RELICON Relilight V 32,5 P1 is suitable for following markets and industries
-
![Electronics Industry]()
Electronics Industry
-
![Electrical Installation]()
Electrical Installation
More products in this product group
Gel Cable Joint with Connector >| Colour | Black (BK) |

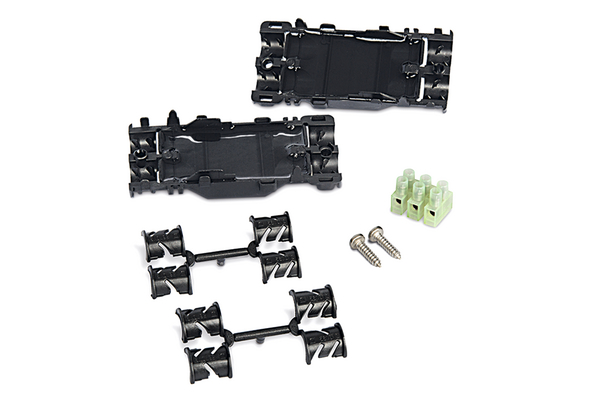

| Content | Gel shell filled with RELICON gel Adapter for strain relief Installation instruction Connector block 3 x 0,5 mm² to 3 x 2,5 mm² Screws |
| Description Short (BMEcat) (max. 150 characters) | Gel cable joint 3x0,5 - 3x2,5, Abz. 3x0,5 - 3x2,5 |
| GLOBAL PART DESCRIPTION | Relilight V32.5P1-PA66V0/SI-BK |
| No. of Wires | 3 |
| Pack Cont. | 1Bag |
| Package Quantity per | Box |
| Product Family | RELICON Relilight V 32,5 P1 |
| Product Group | Gel Cable Joint with Connector |
| Variant | Gel |
| Voltage range | 250V, 16A |
|
|
|
| Cable Diameter Branch Cable | 6.5-12mm |
| Cable Diameter Main Cable | 6.5-12mm |
| Conductor Cross Section Branch Cable (max.) | 3 x 2.5mm² |
| Conductor Cross Section Branch Cable (min.) | 3 x 0.5mm² |
| Conductor Cross Section Main Cable (max.) | 3 x 2.5mm² |
| Conductor Cross Section Main Cable (min.) | 3 x 0.5mm² |
| Connector | Connector block |

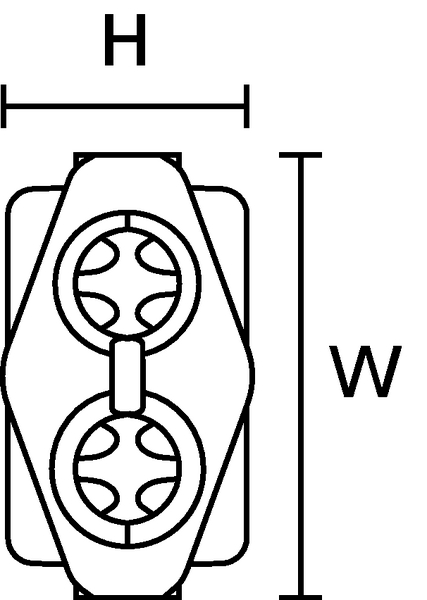

| Height (H) | 24mm |

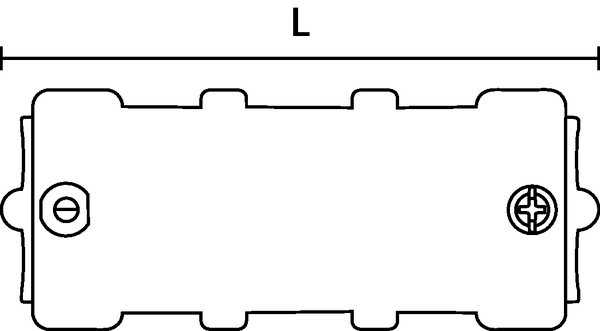

| Length (L) | 105mm |
| Width (W) | 44mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6 V0 (PA66V0), Silicone (SI) |
| Operating Temperature - °C | -30 °C to +130 °C |
| Shelf Life | Unlimited |
| Specifications |
|
| Specifications | EN 60998-2-1:2004 |
| EAN / GTIN | 4250596413715 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.105m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00032m³ |
| Packaging 1 - Weight (kg) | 0.085kg |
| Packaging 1 - Width (m) | 0.1m |
| Packaging 2 - Type | Carton |
| Packaging 3 - Height (m) | 0.25m |
| Packaging 3 - Length (m) | 0.44m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0396m³ |
| Packaging 3 - Weight (kg) | 9.004kg |
| Packaging 3 - Width (m) | 0.36m |
| Packaging 4 - Height (m) | 1.145m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.099m³ |
| Packaging 4 - Weight (kg) | 201.088kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.085kg |
| ETIM 6.0 | EC001170 |
