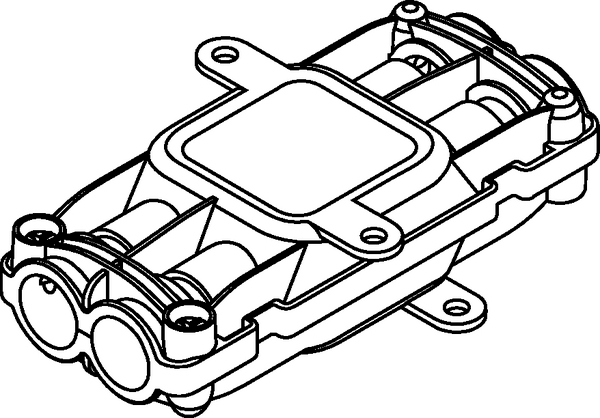

Gel Cable Joint with Connector Relilight V34P2
RELICON Relilight V 34 P2, Article number: 435-01657
Features
- Two- part, black moulding shells
- Flame-retardant shell moulds according to UL94 V0
- Safety class IP68
- Strain relief integrated in the shell moulds
- Voltage class 450V, 25A
- Good insulating properties through the use of RELICON gel
- Non-toxic gel
- Reopenable
- Easy to install
- UV-resistant
- Resistant to ageing
- Weather-resistant
- Temperature-resistant from -30°C to 130°C
- Unlimited storage life
- Certified according to DIN EN 60998-2-1:2004
- Incl. connector block
Certifications & Approvals
Application
Relilight gel cable joints are designed for light installations, especially LED lighting. They are tested according to EN 60998-2-1: 2004 and offer IP68 protection class. The moulding shells are also flame retardant. Depending on the connector type, Relilight can be used either for straight-through or as branch joints. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc. The silicone-based RELICON gel in the Relilight cable joints provides insulation, sealing and mechanical protection in one step. Furthermore, they reduce the workload and total cost of installation.
Application: In low-voltage electrical networks as straight-through or branch joints, e.g. for outdoor light installations, underground, submerged, outdoor, indoor and in wiring ducts.
RELICON Relilight V 34 P2 is suitable for following markets and industries
-
![Electronics Industry]()
Electronics Industry
-
![Electrical Installation]()
Electrical Installation
More products in this product group
Gel Cable Joint with Connector >| Colour | Black (BK) |

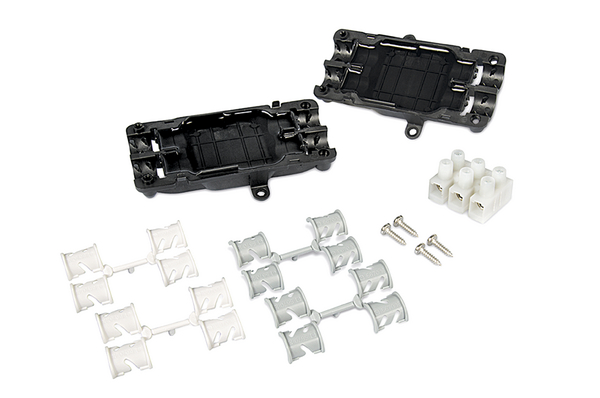

| Content | Gel shell filled with RELICON gel Adapter for strain relief Installation instruction Connector block 3 x 1,5 mm² to 3 x 4 mm² Screws |
| Description Short (BMEcat) (max. 150 characters) | Gel cable joint 3x1,5 - 3x4, Abz. 3x1,5 - 3x4 |
| GLOBAL PART DESCRIPTION | Relilight V34P2-PA66V0/SI-BK |
| No. of Wires | 3 |
| Pack Cont. | 1Bag |
| Package Quantity per | Box |
| Product Family | RELICON Relilight V 34 P2 |
| Product Group | Gel Cable Joint with Connector |
| Variant | Gel |
| Voltage range | 450V, 25A |
|
|
|
| Cable Diameter Branch Cable | 7.5-16mm |
| Cable Diameter Main Cable | 7.5-16mm |
| Conductor Cross Section Branch Cable (max.) | 3 x 4mm² |
| Conductor Cross Section Branch Cable (min.) | 3 x 1.5mm² |
| Conductor Cross Section Main Cable (max.) | 3 x 4mm² |
| Conductor Cross Section Main Cable (min.) | 3 x 1.5mm² |
| Connector | Connector block |

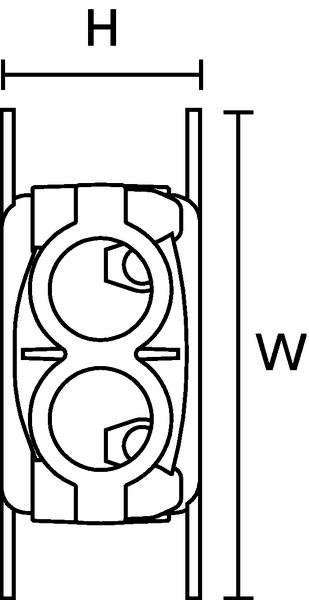

| Height (H) | 35mm |

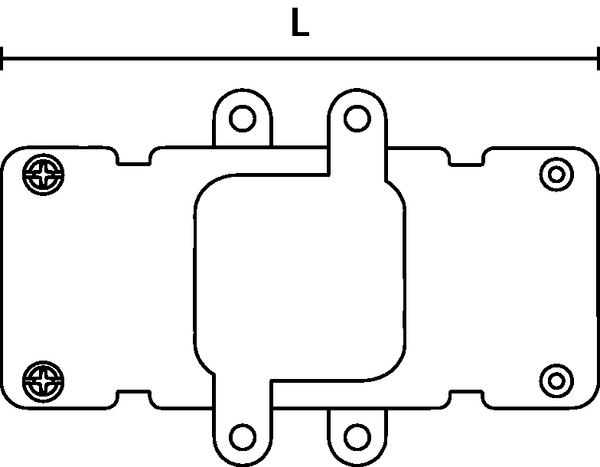

| Length (L) | 138mm |
| Width (W) | 78mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6 V0 (PA66V0), Silicone (SI) |
| Operating Temperature - °C | -30 °C to +130 °C |
| Shelf Life | Unlimited |
| Specifications |
|
| EAN / GTIN | 4250596413739 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.205m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00139m³ |
| Packaging 1 - Weight (kg) | 0.214kg |
| Packaging 1 - Width (m) | 0.17m |
| Packaging 2 - Height (m) | 0.12m |
| Packaging 2 - Length (m) | 0.21m |
| Packaging 2 - Qty | 20 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0034m³ |
| Packaging 2 - Weight (kg) | 4.388kg |
| Packaging 2 - Width (m) | 0.135m |
| Packaging 3 - Height (m) | 0.27m |
| Packaging 3 - Length (m) | 0.6m |
| Packaging 3 - Qty | 40 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0648m³ |
| Packaging 3 - Weight (kg) | 12.076kg |
| Packaging 3 - Width (m) | 0.4m |
| Weight | 0.214kg |
| ETIM 6.0 | EC001170 |
