Straight-through and branch gel cable joints with connectors : Relilight V36P2

Gel cable joint 3x1,5 - 3x6, Abz. 3x1,5 - 3x6, Article number: 435-01658


  • Two- part, black moulding shells
  • Flame-retardant shell moulds according to UL94 V0
  • Safety class IP68
  • Strain relief integrated in the shell moulds
  • Voltage class 450V
  • Good insulating properties through the use of RELICON gel
  • Non-toxic gel
  • Reopenable
  • Easy to install
  • UV-resistant
  • Resistant to ageing
  • Weather-resistant
  • Temperature-resistant from -30°C to 130°C
  • Unlimited storage life
  • Certified according to DIN EN 60998-2-1:2004
  • Incl. connector block

Certifications & Approvals


Relilight gel cable joints are designed for light installations, LED lighting as well. They are tested according to EN 60998-2-1: 2004 and offer IP68 protection class. The moulding shells are also flame retardant. Depending on the connector type, Relilight can be used either for straight-through or as branch joints. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc. The silicone based gel in the Relilight cable joints not only provides excellent insulation but also a simple, effortless installation.

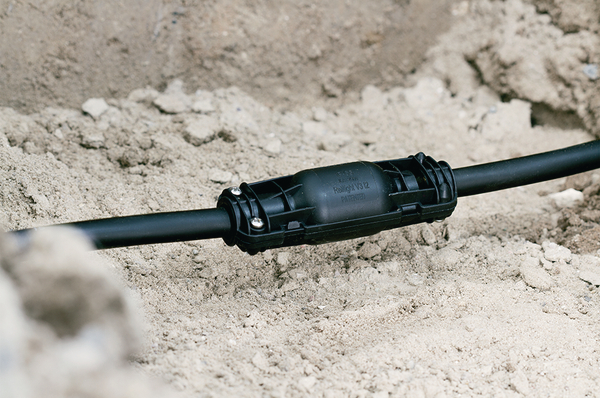

Application: In low-voltage electrical networks as straight-through or branch joints, e.g. for outdoor light installations, like garden lightning, underground, submerged, outdoor, indoor and in wiring ducts.

RELICON Relilight V 36 P2 is suitable for following markets and industries

Application Tool PTS4, ASS103, RCS0425
Colour Black (BK)

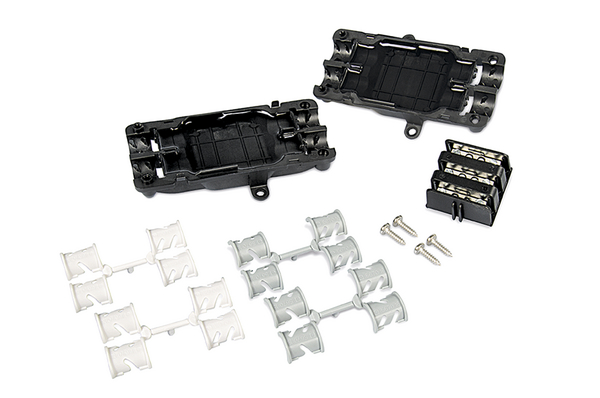

Content Gel shell filled with RELICON gel
Adapter for strain relief
Installation instruction
Connector block 3 x 1,5 mm² to 3 x 6 mm²
No. of Wires 3
Pack Cont. 1Bag
Package Quantity per Box
Product Family RELICON Relilight V 36 P2
Product Group Straight-through and branch gel cable joints with connectors
Short Description Gel cable joint 3x1,5 - 3x6, Abz. 3x1,5 - 3x6
Variant Gel
Voltage range 450V
Cable Diameter Branch Cable 7.5-16mm
Cable Diameter Main Cable 7.5-16mm
Conductor Cross Section Branch Cable (max.) 3 x 6mm²
Conductor Cross Section Branch Cable (min.) 3 x 1.5mm²
Conductor Cross Section Main Cable (max.) 3 x 6mm²
Conductor Cross Section Main Cable (min.) 3 x 1.5mm²
Connector Connector block

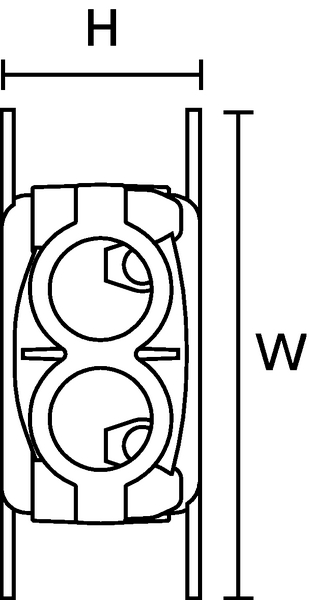

Height (H) 35mm

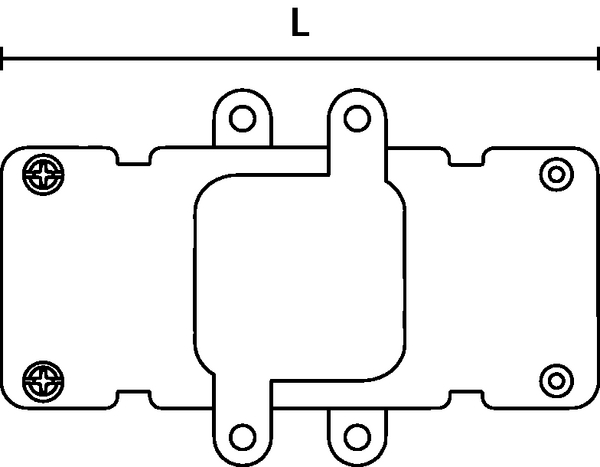

Length (L) 138mm
Width (W) 78mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6 V0 (PA66V0), Silicone (SI)
Operating Temperature - °C -30 °C to +130 °C
Shelf Life Unlimited
Specifications EN 60998-2-1:2004
EAN / GTIN 4250596413746
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.195m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00133
Packaging 1 - Weight (kg) 0.246kg
Packaging 1 - Width (m) 0.17m
Packaging 2 - Height (m) 0.12m
Packaging 2 - Length (m) 0.21m
Packaging 2 - Qty 5
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0034
Packaging 2 - Weight (kg) 1.334kg
Packaging 2 - Width (m) 0.135m
Weight 0.246kg
ETIM 6.0 EC001170
ETIM 7.0 Key EC001170
