Straight-through and branch gel cable joints with connectors : Relilight V61.5I2

Gel cable joint 6x05 - 6x1,5, Article number: 435-01652

Features

  • Two- part, black moulding shells
  • Flame-retardant shell moulds according to UL94 V0
  • Safety class IP68
  • Strain relief integrated in the shell moulds
  • Voltage class 250V
  • Good insulating properties through the use of RELICON gel
  • Non-toxic gel
  • Reopenable
  • Easy to install
  • UV-resistant
  • Resistant to ageing
  • Weather-resistant
  • Temperature-resistant from -30°C to 130°C
  • Unlimited storage life
  • Certified according to DIN EN 60998-2-1:2004
  • Incl. connector block

Certifications & Approvals

Application

Relilight gel cable joints are designed for light installations, LED lighting as well. They are tested according to EN 60998-2-1: 2004 and offer IP68 protection class. The moulding shells are also flame retardant. Depending on the connector type, Relilight can be used either for straight-through or as branch joints. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc. The silicone based gel in the Relilight cable joints not only provides excellent insulation but also a simple, effortless installation.

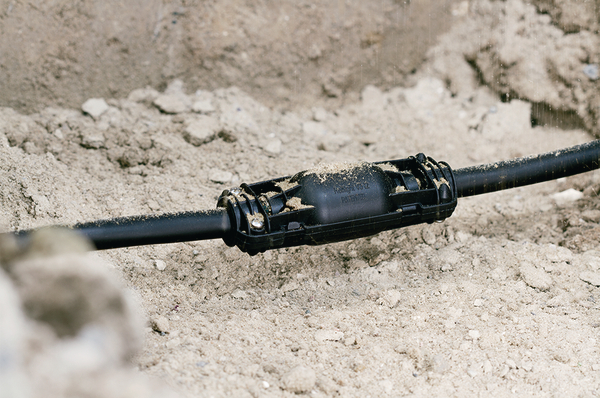

Application: In low-voltage electrical networks as straight-through or branch joints, e.g. for outdoor light installations, like garden lightning, underground, submerged, outdoor, indoor and in wiring ducts.

RELICON Relilight V 61,5 I2 is suitable for following markets and industries

Application Tool PTS4, ASS103, RCS0425
Colour Black (BK)

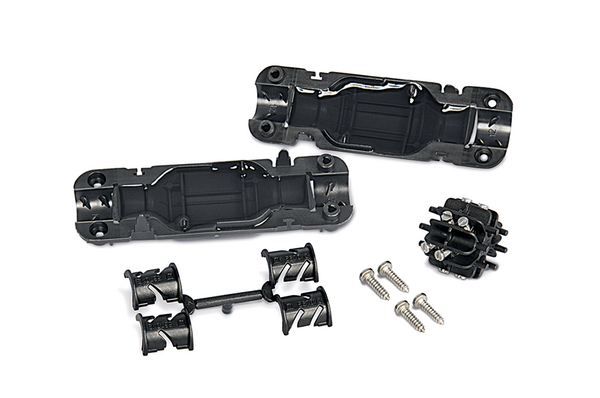

Content Gel shell filled with RELICON gel
Adapter for strain relief
Installation instruction
Connector block 6 x 0,5 mm² to 6 x 1,5 mm²
Screws
No. of Wires 6
Pack Cont. 1Bag
Package Quantity per Box
PART DESCRIPTION Relilight V61.5I2-PA66V0/SI-BK
Product Family RELICON Relilight V 61,5 I2
Product Group Straight-through and branch gel cable joints with connectors
Short Description Gel cable joint 6x05 - 6x1,5
Variant Gel
Voltage range 250V
Cable Diameter Main Cable 6.5-12mm
Conductor Cross Section Main Cable (max.) 6 x 1.5mm²
Conductor Cross Section Main Cable (min.) 6 x 0.5mm²
Connector Connector block

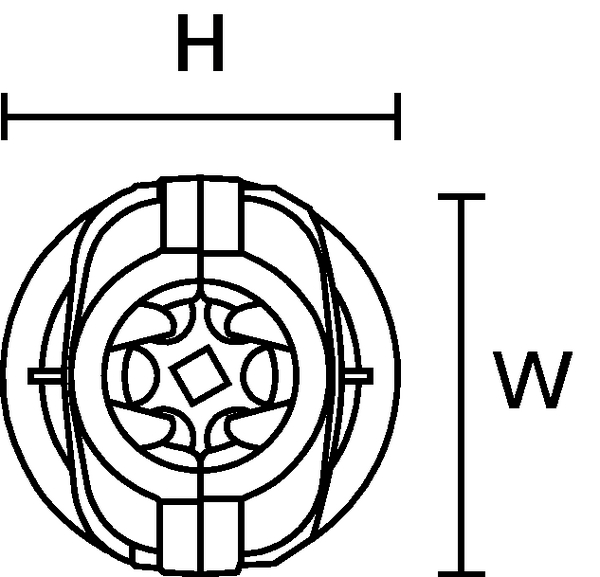

Height (H) 29.0mm

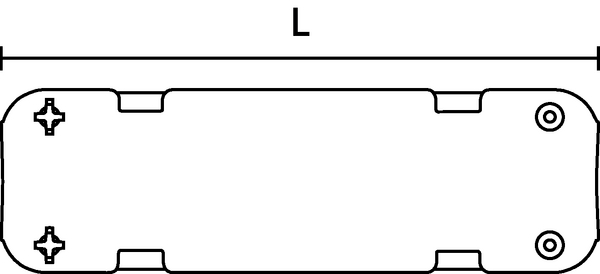

Length (L) 100mm
Width (W) 24.0mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6 V0 (PA66V0), Silicone (SI)
Operating Temperature - °C -30 °C to +130 °C
Shelf Life Unlimited
Specifications
Specifications EN 60998-2-1:2004
EAN / GTIN 4250596413784
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.105m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00032
Packaging 1 - Weight (kg) 0.067kg
Packaging 1 - Width (m) 0.1m
Packaging 2 - Height (m) 0.11m
Packaging 2 - Length (m) 0.21m
Packaging 2 - Qty 10
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0031
Packaging 2 - Weight (kg) 0.771kg
Packaging 2 - Width (m) 0.135m
Weight 0.067kg
ETIM 6.0 EC001169
ETIM 7.0 Key EC001169
