Straight-through gel cable joints with connectors : Reliseal V525

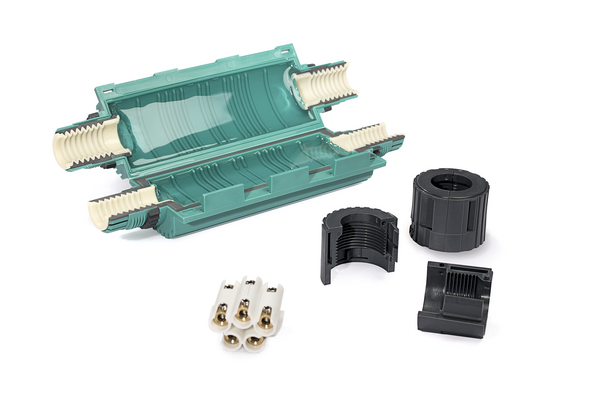

Gel cable joint 3x10 mm² - 5x25 mm², green, Article number: 435-01662

Features

  • Moulding shell: one piece, re-openable, impact-proof, flame retardant

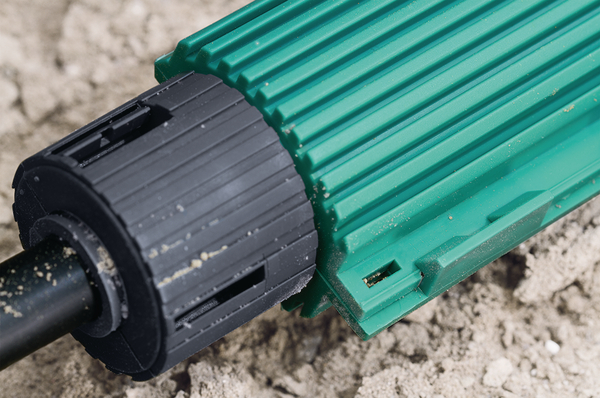

  • Perfect strain relief provided by patented cable gland system
  • Protection class IP68, 10 m
  • Filled with RELICON non-toxic gel, high dielectric strength
  • No mixing, easy to install
  • UV, ageing and weather resistant
  • Unlimited shelf life
  • With connector, ready to assemble
  • Tested according to EN 50393 and EN 60529

Certifications & Approvals

Application

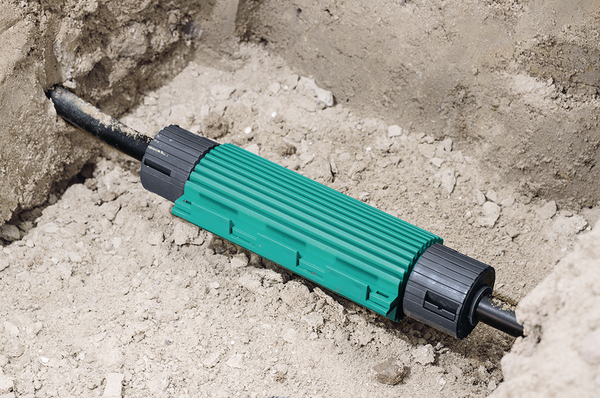

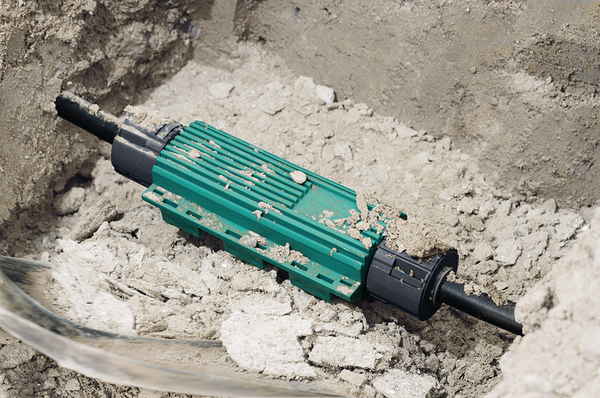

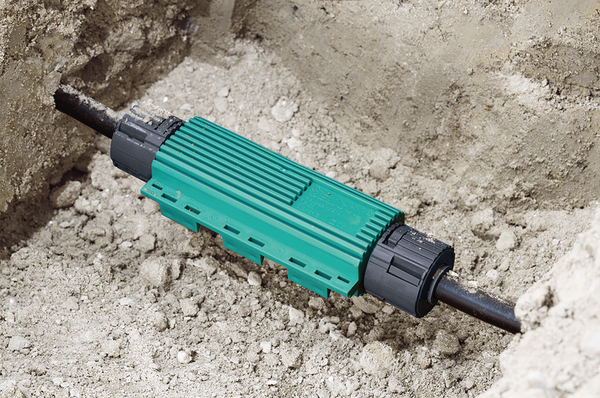

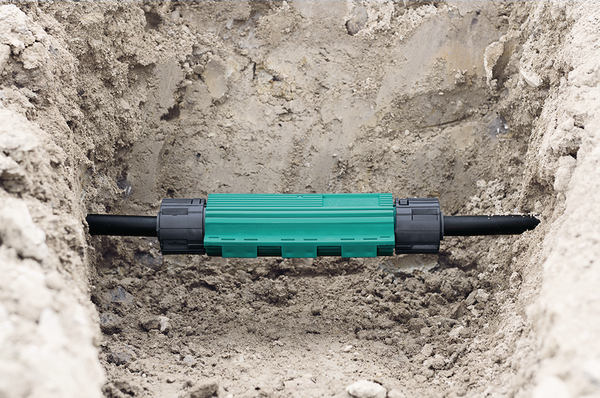

Reliseal gel cable joints are suitable for cable connections under extreme conditions, outdoors and underground. They are universal straight-through joints with a protection class IP68 and consist of a solid polypropylene shell (PP) filled with RELICON gel. They can be used for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR, etc. Reliseal fulfills the highest requirements for electrical installations and offers mechanical protection, insulation and sealing in one workstep. The installer saves time and requires no special installation tools.
Application: In low-voltage electrical networks as straight-through joint. In general connections in industrial buildings, underground, submerged, outdoor, indoor and in wiring ducts.

RELICON Reliseal is suitable for following markets and industries

Application Tool PTS4, ASS103, RCS0425
Colour Green (GN)

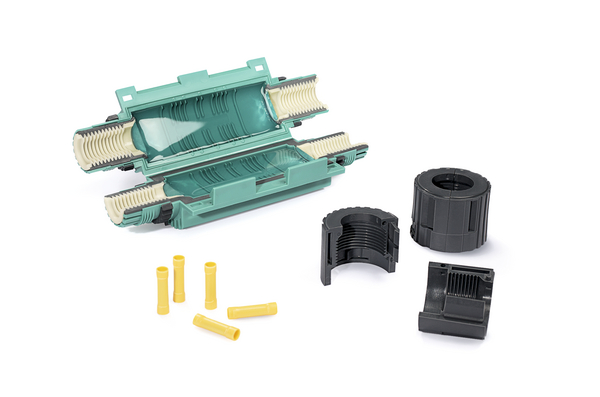

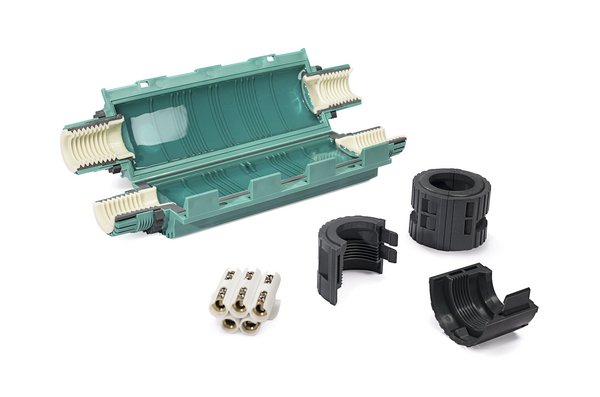

Content Gel shell filled with RELICON gel
Screw system cable-gland for strain relief
Reduce gaskets for various cable diameters
Installation instruction
Compression connector 3 x 10 mm² to 5 x 25 mm²
Allen key
No. of Wires 5
Pack Cont. 1pc.
Package Quantity per Box
PART DESCRIPTION Reliseal V525-PP/SI-GN
Product Family RELICON Reliseal
Product Group Straight-through gel cable joints with connectors
Short Description Gel cable joint 3x10 mm² - 5x25 mm², green
Variant For 5-core cables
Cable Diameter Main Cable 20-30mm
Conductor Cross Section Main Cable (max.) 5 x 25mm²
Conductor Cross Section Main Cable (min.) 3 x 10mm²
Connector Connector block

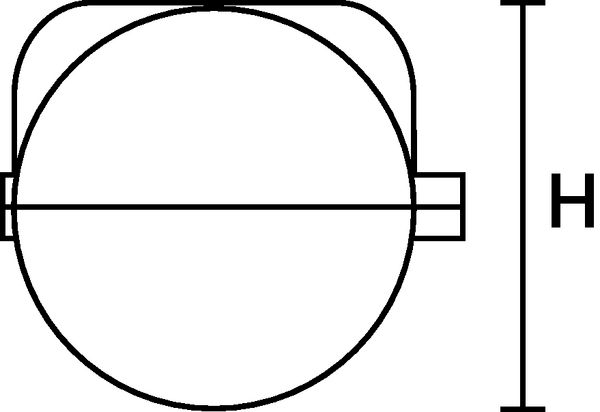

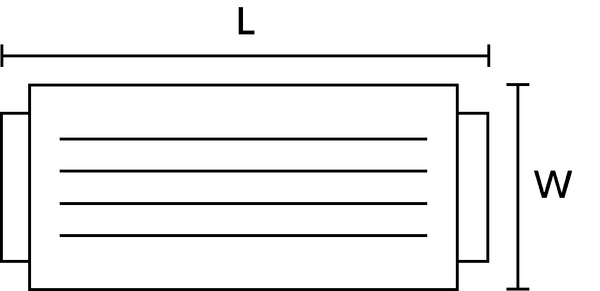

Height (H) 60mm
Length (L) 310mm
Width (W) 88mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polypropylene (PP), Silicone (SI)
Operating Temperature - °C -20 °C to +90 °C
Shelf Life Unlimited
Specifications
Specifications EN 60529:1991
EAN / GTIN 4031026539911
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.32m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00348
Packaging 1 - Weight (kg) 1.121kg
Packaging 1 - Width (m) 0.145m
Packaging 3 - Height (m) 0.395m
Packaging 3 - Length (m) 0.42m
Packaging 3 - Qty 14
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0647
Packaging 3 - Weight (kg) 16.194kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 0.934m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 168
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.897
Packaging 4 - Weight (kg) 215.328kg
Packaging 4 - Width (m) 0.8m
Weight 1.121kg
ETIM 6.0 EC001170
ETIM 7.0 Key EC001170
UNSPSC Key 39121452
