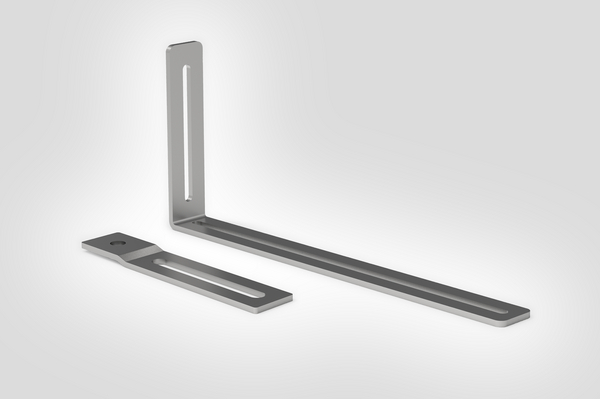

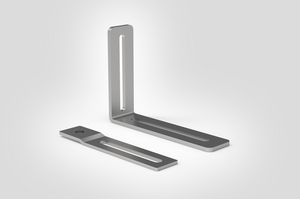

GigaDuct Hardware, Basket Bracket, Long
Art.-No. 855-05093
| LGA-BTBL
|
Copied
- Variety of mounting options to support different installation environments
- High quality steel fabrications
- Mounting brackets to support underfloor, basket, ladder, threaded rod and wall installations
Request quote
More products in this product group:
| Application | To support the installation of GigaDuct Fibre Raceway HellermannTyton offers a comprehensive range of fixtures and fittings which give flexible mounting options suitable for most installation environments. |
| Colour | Zinc Plated Metal (BV) |
| PART DESCRIPTION | LGA-BTBL |
| Product Family | Hardware - BTB |
| Product Group | GigaDuct Supporting Hardware |
| Short Description | GigaDuct Hardware, Basket Bracket, Long |
| Technical Description |
The Ladder Rack Brackets are used to support the ducting system by attaching to a ladder rack rail and the ducting system is fitted below the rack rail. The brackets should be fitted at intervals of 1m - 1.5m to ensure that adequate support is provided for the system. The bracket is supplied in two lengths long and short, and is manufactured from zinc coated passivated mild steel. |
| Type | LGA-BTBL |
