Strain Protection Grommets H119
H119, Article number: 634-01190
Features
- Provides excellent strain relieve
- Flexible and easy to apply
- High resistance to chemicals and environmental influences
Certifications & Approvals
Application
Straining protection grommets are used to protect cables and wires from pulling. They are also used for bend protection in casing apertures. They are especially useful in electrical equipment, for instance in electrical drills.
The use of Hellerine is recommended when working with grommets.
H119 is suitable for following markets and industries
More products in this product group

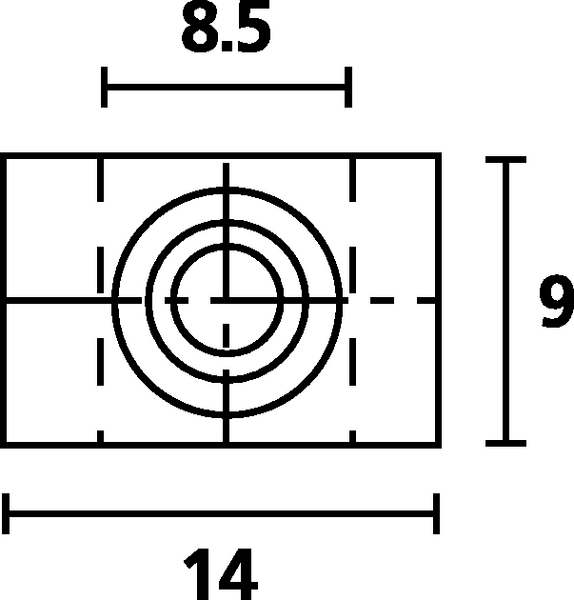

Strain Protection Grommets >| Cable ∅ max | 4.5mm |
| Cable ∅ min | 3.0mm |
| Colour | Black (BK) |
| Description Short (BMEcat) (max. 150 characters) | Strain protection grommets black |
| GLOBAL PART DESCRIPTION | H119-PVC-FR-BK |
| Pack Cont. | 2000pcs. |
| Package Quantity per | pcs. |
| Product Family | H119 |
| Product Group | Strain Protection Grommets |
|
|
|
| Diameter (D) | 4.5mm |
| Outside Ø (OD) | 7.0mm |
| Outside ∅ (OD2) | 4.5mm |
| Outside ∅ (OD3) | 6.5mm |
| Shore Hardness A | 55±5 |
| ∅ (D2) | 3.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Hazardous good | No |
| Material | Polyvinylchloride, flame retardant (PVC-FR) |
| Operating Temperature - °C | -30 °C to +60 °C |
| Specifications |
|
| EAN / GTIN | 4031026186672 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.35m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0049m³ |
| Packaging 1 - Weight (kg) | 4.4kg |
| Packaging 1 - Width (m) | 0.4m |
| Weight | 4.4kg |
| ETIM 5.0 | EC001679 |
| ETIM 6.0 | EC001679 |
