Strain Protection Grommets  H121

H121, Article number: 634-01210

Features

  • Provides excellent strain relieve
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Straining protection grommets are used as protection for cables and wires from pulling. They are also used for bend protection in casing apertures. They are especially useful in electrical equipment, for instance in electrical drills.

The use of Hellerine is recommended when working with grommets.

H121 is suitable for following markets and industries

Cable ∅ max 8.0mm
Cable ∅ min 7.0mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Strain protection grommets black
GLOBAL PART DESCRIPTION H121-PVC-FR-BK
Pack Cont. 500pcs.
Package Quantity per pcs.
Product Family H121
Product Group Strain Protection Grommets

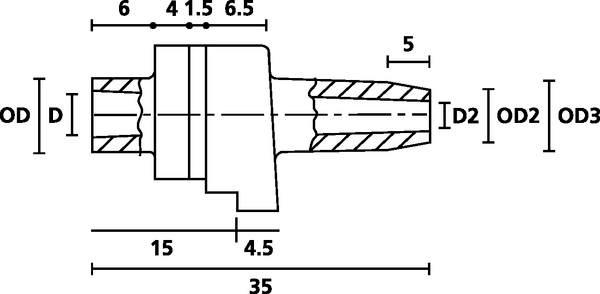

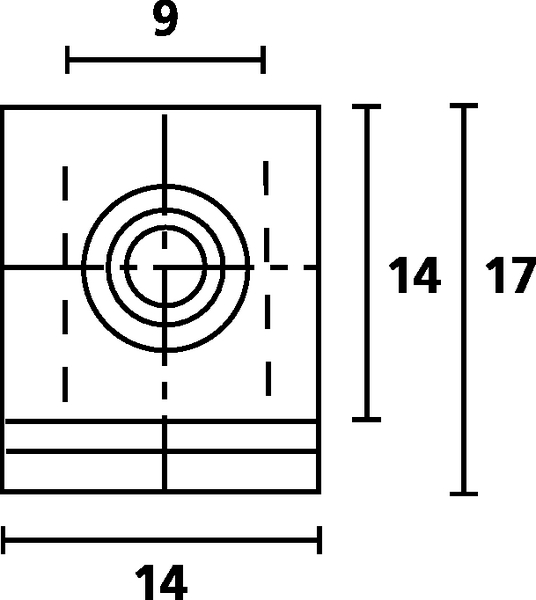

Diameter (D) 8.0mm
Outside Ø (OD) 11.0mm
Outside ∅ (OD2) 8.5mm
Shore Hardness A 55±5
∅ (D2) 7.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
EAN / GTIN 4031026186702
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0084
Packaging 1 - Weight (kg) 1.825kg
Packaging 1 - Width (m) 0.4m
Weight 1.825kg
ETIM 5.0 EC001679
ETIM 6.0 EC001679
