Strain Protection Grommets  H125

H125, Article number: 634-31250

Features

  • Provides excellent strain relieve
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Straining protection grommets are used as protection for cables and wires from pulling. They are also used for bend protection in casing apertures. They are especially useful in electrical equipment, for instance in electrical drills.

The use of Hellerine is recommended when working with grommets.

H125 is suitable for following markets and industries

Cable ∅ max 4.0mm
Cable ∅ min 3.5mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Strain protection grommets black
GLOBAL PART DESCRIPTION H125-PVC-BK
Pack Cont. 1000pcs.
Package Quantity per pcs.
Product Family H125
Product Group Strain Protection Grommets

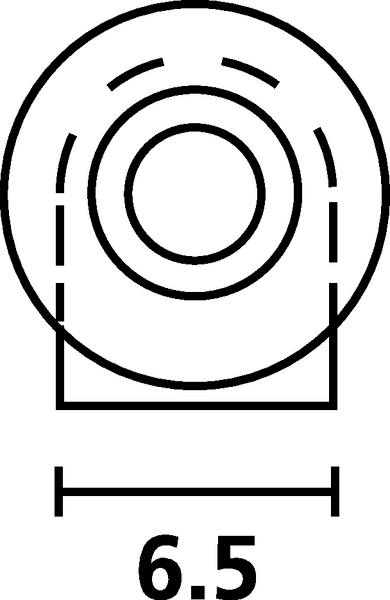

Diameter (D) 4.0mm
Outside Ø (OD) 9.0mm
Outside ∅ (OD2) 6.0mm
Shore Hardness A 63±5
∅ (D2) 3.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Flexible Polyvinyl Chloride, cadmium free (PVC)
Operating Temperature - °C -30 °C to +60 °C
Specifications
EAN / GTIN 4031026186771
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0049
Packaging 1 - Weight (kg) 1.6kg
Packaging 1 - Width (m) 0.4m
Weight 1.6kg
ETIM 5.0 EC001679
ETIM 6.0 EC001679
