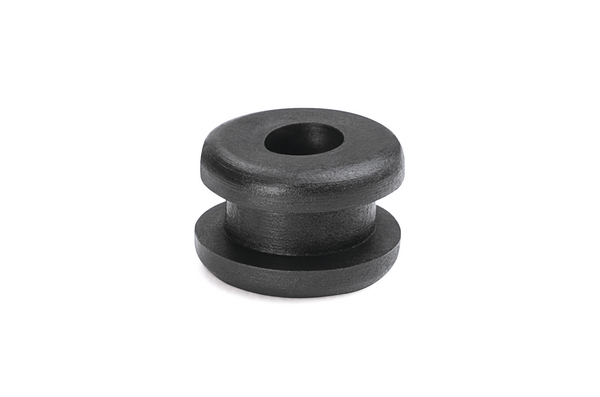

Edge Protection Grommets HV1218

HV1216, Article number: 633-02180

Features

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.

HV1216 is suitable for following markets and industries

Cable ∅ max 6.0mm
Cable ∅ min 5.0mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Edge protection grommets black
GLOBAL PART DESCRIPTION HV1218-PVC-FR-BK
Pack Cont. 1000pcs.
Package Quantity per pcs.
Product Family HV1216
Product Group Edge Protection Grommets
Variant Closed
Bundle ∅ max. 14.0mm
Diameter (D) 5.0mm
for Hole ∅ (FH) 8.0 mm
Height (H) 6.5mm
Height (H2) 1.5mm
Outside Ø (OD) 14.5mm
Shore Hardness A 55±5
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
Waterproof No
EAN / GTIN 4031026186405
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0049
Packaging 1 - Weight (kg) 1.05kg
Packaging 1 - Width (m) 0.4m
Weight 1.05kg
ETIM 5.0 EC000879
ETIM 6.0 EC000879
