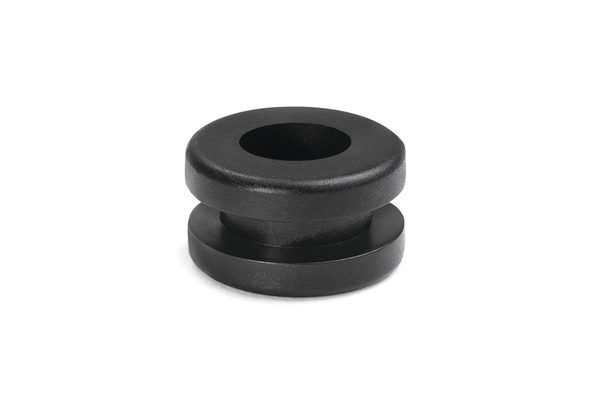

Cable grommet, ⌀11.0 mm, black, 1000pcs.
Art.-No. 633-03020 | HV1302-PVC-FR-BK |

Copied
Edge Protection Grommet - HV1302.
HV1301 to HV1305

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ⌀ max 9.0mm
    Cable ⌀ min 8.0mm
    Colour Black (BK)
    Local order number HV1302
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1302-PVC-FR-BK
    Package Content 1000pcs.
    Package Content packed in pcs.
    Product Family HV1302
    Product Group Edge Protection Grommets
    Shore Hardness A 55±5
    Short Description Edge protection grommets black, outside diameter: 15.9mm, inside diameter: 8.0mm, height: 9.0mm
    Type HV1302
    Variant Round
    Weight/Unit 0.001197kg
    Diameter (D) 8.0mm
    Height (H) 9.0mm
    Height (H2) 3.0mm
    Outside ⌀ (OD) 15.9mm
    for Hole ⌀ (FH) 11.0 mm
    CAS Number 115-86-6
    Critical Substance Triphenylphosphate
    EC Number 204-112-2
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-151-2849
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186443
    Packaging 1 - Height (m) 0.075m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.012255m³
    Packaging 1 - Weight (kg) 1.225kg
    Packaging 1 - Width (m) 0.38m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 39131603
    Cable grommets Cable grommets

    Cable grommets

    Wether snap in cable grommets, grommet strips, assortment boxes, grommets for strain relief or bend protection: Find now the right cable grommets for your application.
